Hensel FP 2212 Casing 270 x 360 x 186 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Casing
Material
Plastic
IP rating
IP66
Width
270 mm
Technical specifications
- Installation depth: 136 mm
- With hinged lid: Yes
- Mounting type: Construction
- Packaging type
Piece
- Product type
Casing
- Features
with DIN rail
- Material
Plastic
IP66
- Type
Counter casing
- Length
136 mm
- Width
270 mm
- Height
360 mm
- Content
1 pc(s)
- Type
FP 2212
- Dim

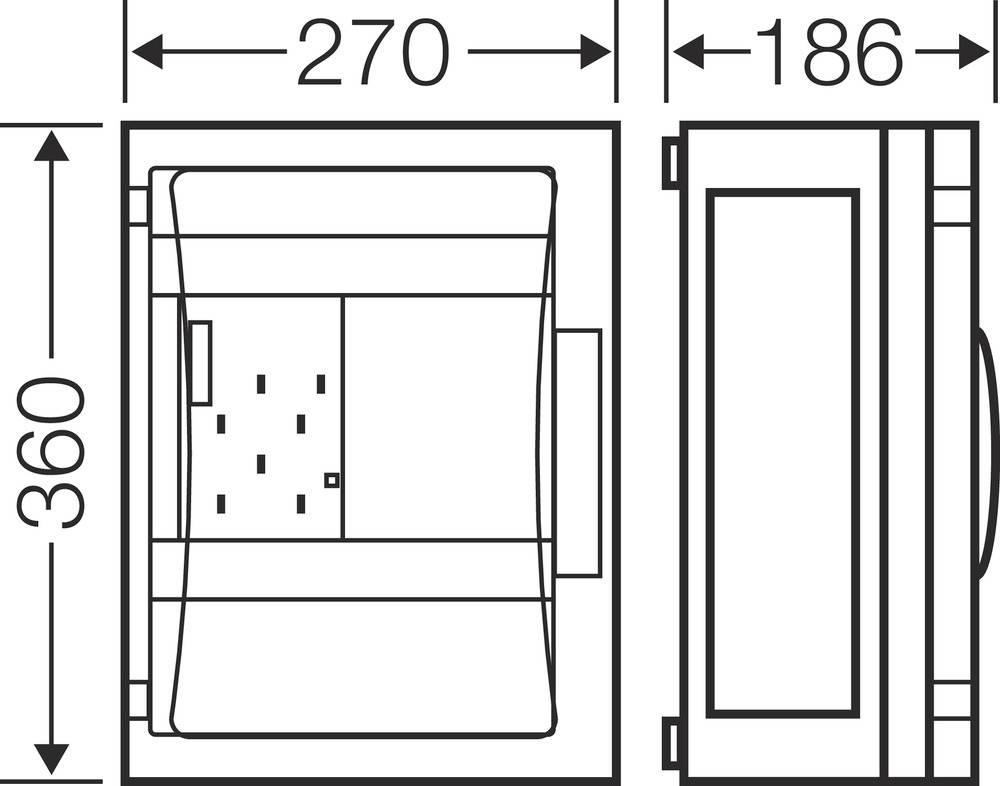

(L x W x H) 136 x 270 x 360 mm
- Manufacturer part #
68000021
- Depth
186 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292646 Hensel FP 2212 Casing 270 x 360 x 186 Plastic 1 pc(s)
Description

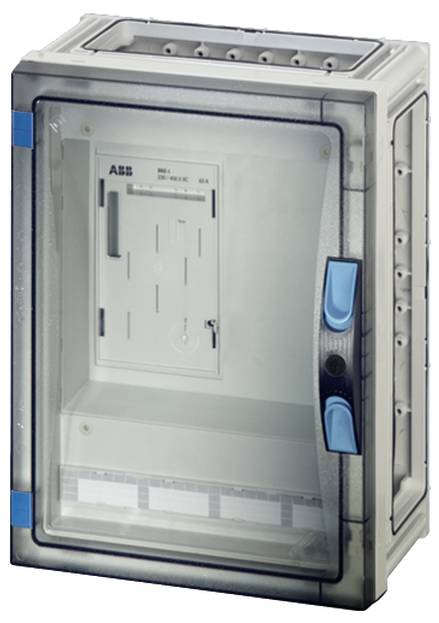

Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Counter housing for 1 electronic household counter (EHZ) with pre-assembled connection cables. Max. Installation depth 95 mm. With transparent door and sealable door lock with manual actuation. Use in unmeasured areas after consultation with local network operator.
