Hensel KG 9003 3300141 Casing 217 x 253 x 115 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Casing
Material
Plastic
IP rating
IP65
Width
217 mm
Height
253 mm
Technical specifications
- Attachment option: Yes
- Number of cable entries: 18
- Number of modules: 1
- Number of rows: 1
- Type of cover: Door
- Type of door: Single
- Lid type: Closed
- Mounting depth: 95 mm
- Suitable for outdoor use: no.
- Suitable for lightning protection: no.
- Material thickness housing: 3 mm
- Material thickness door/lid: 3 mm
- Mounting type: Surface-mounted
- Protection class: II
- Product type
Casing
- Features
Cover (clear)
- Material
Plastic
IP65
- Type
Housing
- Width
217 mm
- Height
253 mm
- Internal depth
95 mm
- Content
1 pc(s)
- Dim

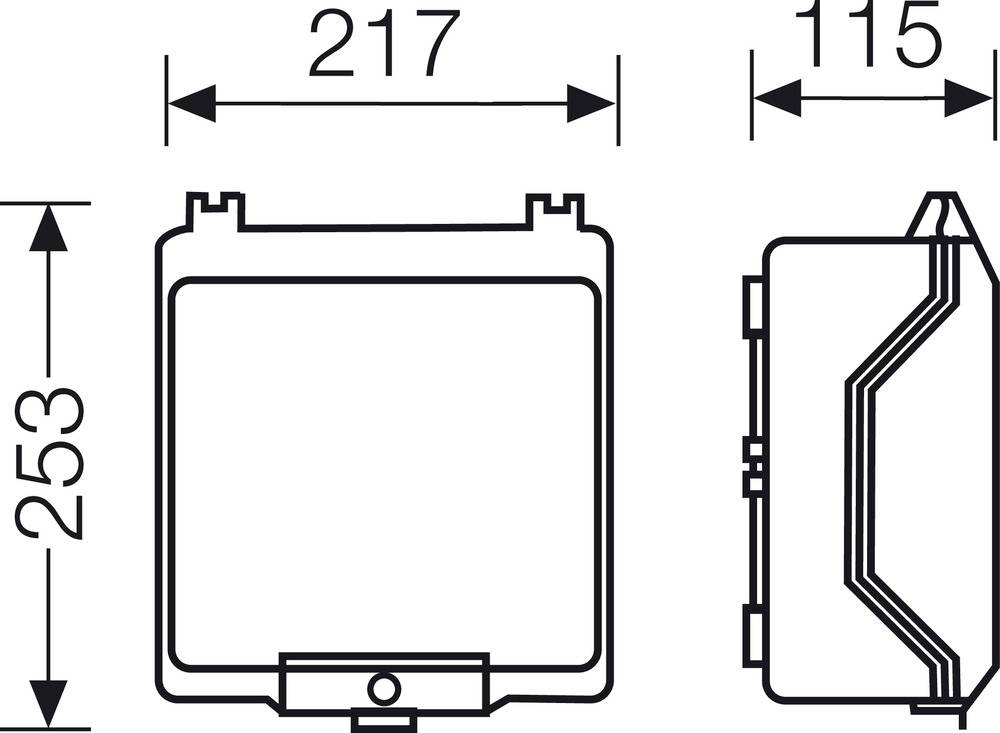

(W x H x D) 217 x 253 x 115 mm
- RoHS-compliant
Yes
- Weight
0.71
- Depth
115 mm
- Type
KG 9003
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295812 Hensel KG 9003 3300141 Casing 217 x 253 x 115 Plastic 1 pc(s)
Description

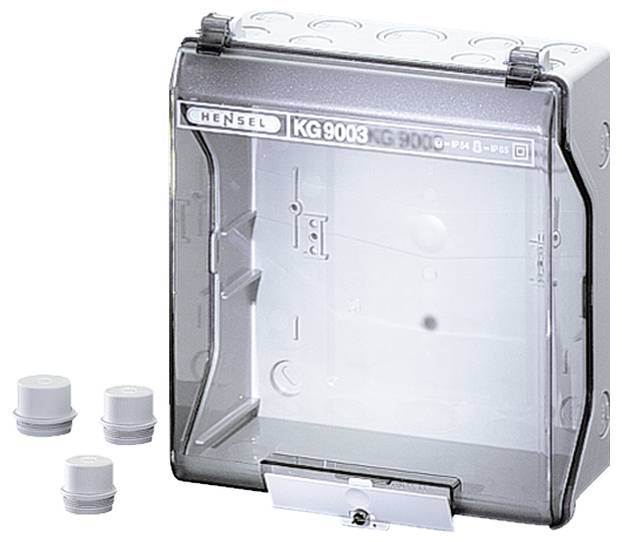

Small distributor Empty housing made of high-quality thermoplastic. For surface-mounting applications in buildings or protected installation outdoors. For installing devices via mounting rails or mounting plates as accessories. With transparent hinged lid and lock for tool actuation. Cable entry via enclosed cable entries. Protection class IP 55 (ESM).
