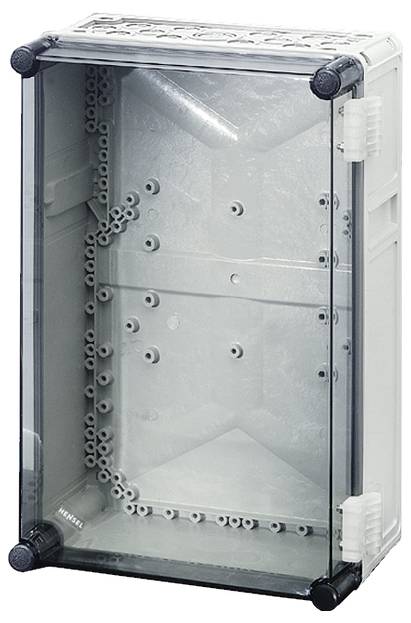

Hensel Mi 9300 20001049 Casing 300 x 450 x 170 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Casing
Material
Plastic
IP rating
IP65
Width
300 mm
Height
450 mm
Highlights & Details
Hensel Mi-Single casing 275x425x146mm Mi 9300
Our service for you
Technical specifications
- Attachment: no.
- Number of cable entries: 35
- Number of modules: 1
- Number of holes for flange plates: 4
- Number of rows: 1
- Type of cover: Cover
- Lid type: Closed
- Installation depth: 146 mm
- Suitable for outdoor use: Yes
- Suitable for lightning protection: no.
- Material thickness housing: 3 mm
- Material thickness door/lid: 3 mm
- Mounting type: Surface-mounted
- Protection class: II
- Product type
Casing
- Features
Cover (clear)
- Material
Plastic
IP65
- Type
Single-strand casing
- Width
300 mm
- Height
450 mm
- Internal depth
146 mm
- Content
1 pc(s)
- Dim

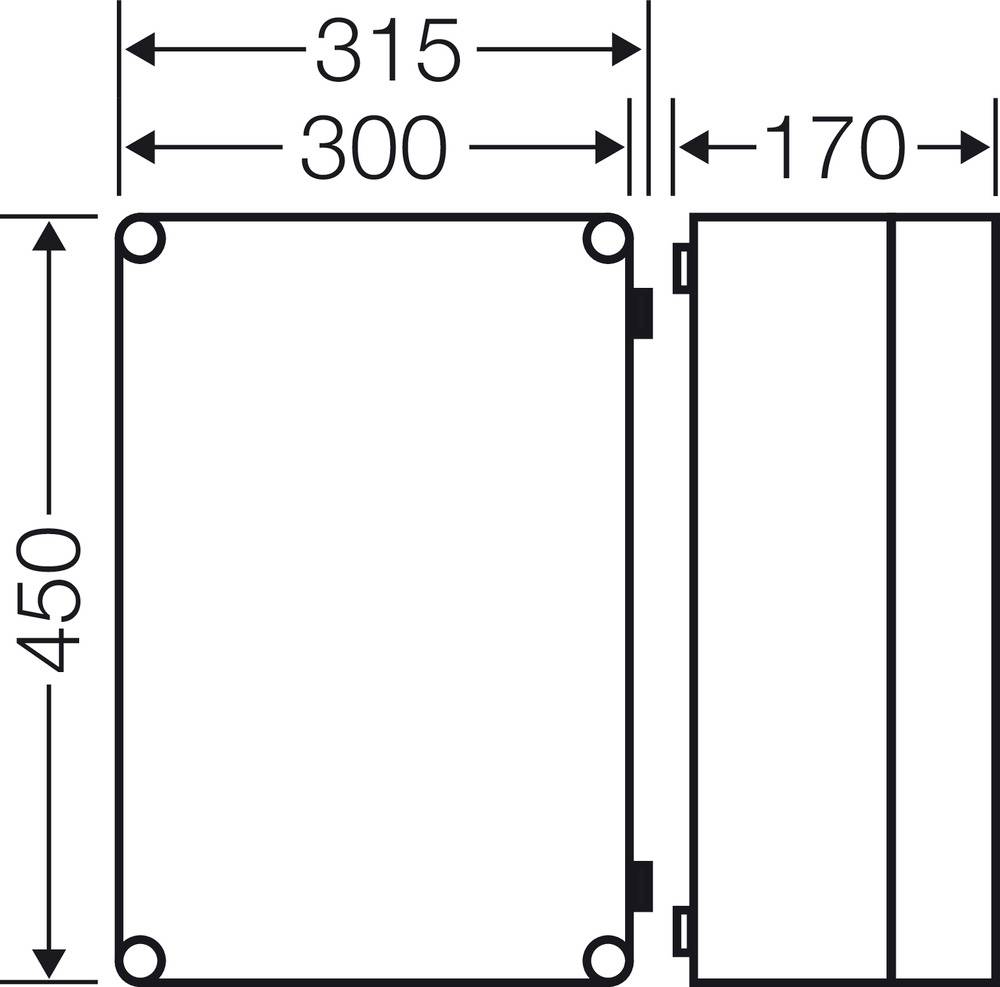

(W x H x D) 300 x 450 x 170 mm
- RoHS-compliant
Yes
- Depth
170 mm
- Type
Mi 9300
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296110 Hensel Mi 9300 20001049 Casing 300 x 450 x 170 Plastic 1 pc(s)
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Empty housing with hinged transparent cover. Mounting dimensions W 275 x H 425 x D 150 mm for the installation of devices on mounting plate or DIN mounting rail. Max. Installation depth with built-in mounting plate 146 mm, with built-in mounting rail 135 mm. Lid locks with tool actuation.
