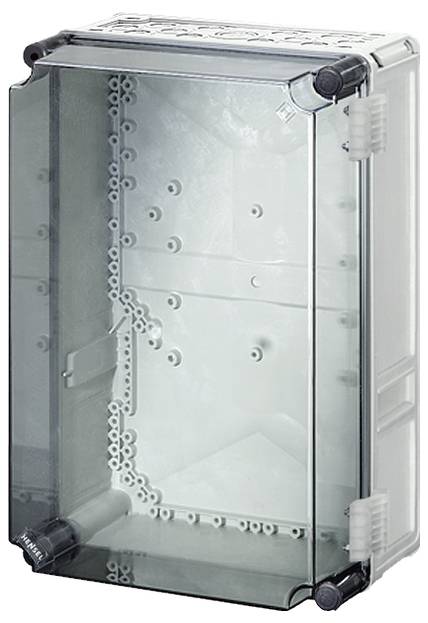

Hensel Mi 9310 Casing 300 x 450 x 214 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Casing
Material
Plastic
IP rating
IP65
Width
300 mm
Technical specifications
- Attachment: no.
- Number of cable entries: 35
- Number of modules: 1
- Number of holes for flange plates: 4
- Number of rows: 1
- Lid type: Closed
- Installation depth: 191 mm
- Suitable for outdoor use: Yes
- Suitable for lightning protection: no.
- Internal depth 191 mm
- Material thickness housing: 3 mm
- Material thickness door/lid: 3 mm
- Mounting type: Surface-mounted
- Impact strength: IK08
- Protection class: II
- Packaging type
Piece
- Product type
Casing
- Features
Cover (clear)
shockproof
- Material
Plastic
IP65
- Type
Mi-single-layer casing
- Width
300 mm
- Height
450 mm
- Dimensions
B 275 x H 425 x T 195 mm
- Content
1 pc(s)
- Type
Mi 9310
- Dim

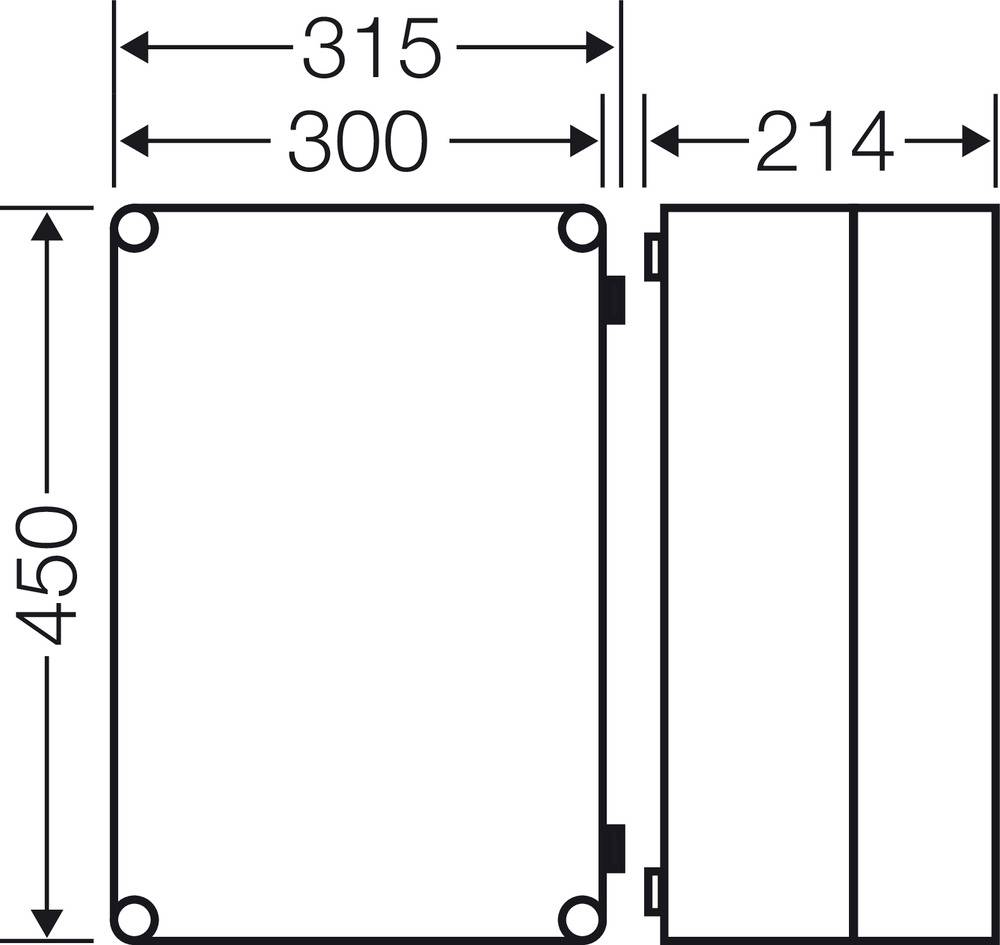

(W x H x D) 300 x 450 x 214 mm
- Manufacturer part #
20001051
- Depth
214 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2291613 Hensel Mi 9310 Casing 300 x 450 x 214 Plastic 1 pc(s)
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Empty housing with hinged transparent cover. Installation dimensions W 275 x H 425 x D 195 mm for the installation of devices on mounting plate or DIN mounting rail. Max. Installation depth with built-in mounting plate 191 mm, with built-in mounting rail 180 mm. Lid locks with tool actuation.
