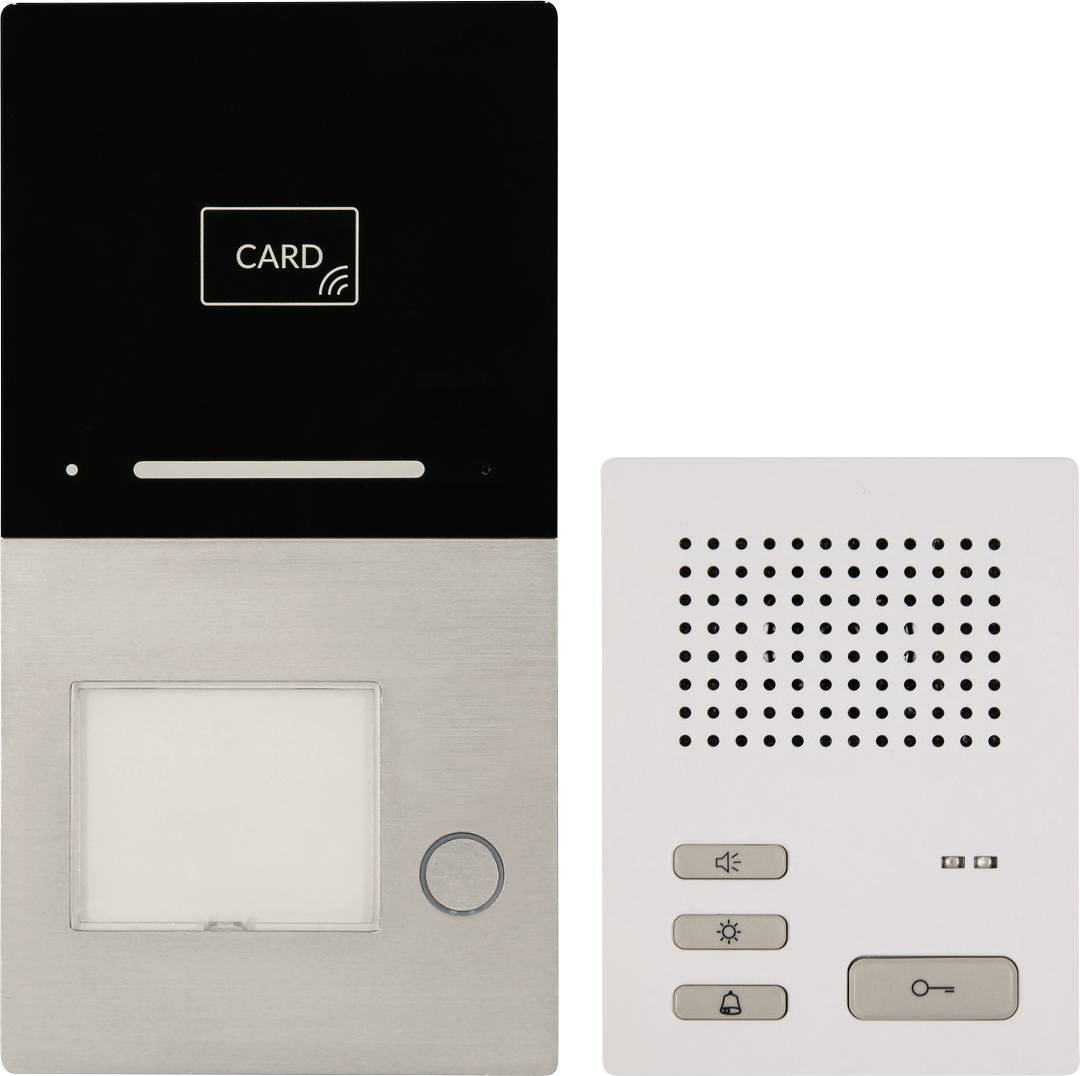

HHG SET-1-RL Audio intercom set Two-wire Aluminium (brushed)
EAN:
Part number:
Item no:
Highlights & Details
HHG SET-1-RL Audio intercom set Two-wire Aluminium (brushed)
- Audio external station for surface mounting
- Case upper section made of aluminum
- Name cover and doorbell button light (white)
- LED indication of acknowledgment when pressing the doorbell button
- Potential-free contact for door opener
- Adjustable door opener time
- Connection for external door opener key
- Door station for 2-wire technology in star topology
- Transponder reader for contact-free reading of RFID cards and chips
- With access via RFID reader and smartphone Bluetooth® APP for Android and iOS, including access management and logging
- To use the Bluetooth® APP, one RFID transponder is required for each user
- Number of RFID Transponders: 50
- Including mounting plate
- Ideal mounting height 1.4m
- Load capacity potential-free door opener contact max. 30 V DC / 12 V AC, 1 A
- Protection class device IP54
- This text is machine translated.
Technical specifications
- Product type
Audio intercom set
- Units
1
- Transfer type
Two-wire
- Factory colour
Aluminium (brushed)
- Width
100 mm
- Height
192 mm
- Depth
22 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3766542 HHG SET-1-RL Audio intercom set Two-wire Aluminium (brushed)
