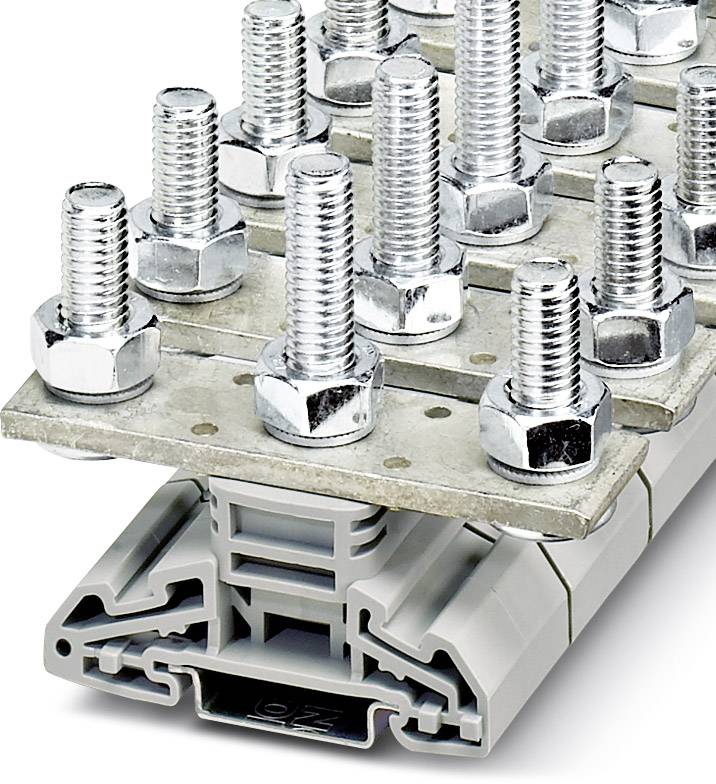

High Current Connectors HV M10/2 3049563 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
High power connector
Connection
Bolt fixings
Cross section (flexible) (max.)
120 mm²
Cross section (inflexible) (max.)
120 mm²
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 15.97 / piece)
€ 159.66
plus VAT.
14-day return policy included
Highlights & Details
High Current Connectors HV M10/2
- HV M10/2
Technical specifications
- Packaging type
Piece
- Product type
High power connector
- Features
High current
- Connection
Bolt fixings
- Cross section (flexible) (min.)
6 mm²
- Cross section (flexible) (max.)
120 mm²
- Cross section (inflexible) (min.)
6 mm²
- Cross section (inflexible) (max.)
120 mm²
- AWG (min.)
10
- Clamp width
32 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
269 A
- Nominal current - rounded value
269 A
- Nominal voltage
1000 V
- Manufacturer part #
3049563
- Content
10 pc(s)
- Industrial packaging
Yes
- Type
HV M10/2
- Dim
(L x W x H) 67 x 32 x 73.5 mm
- Width
32 mm
- Height
73.5 mm
- Length
67 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566313 High Current Connectors HV M10/2 3049563 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566313 High Current Connectors HV M10/2 3049563 Phoenix Contact
Description
High Current Connectors, Connection method: Bolt connection, Cross section: 6 mm² - 120 mm², AWG: 10 - 250 kcmil, Width: 32 mm, Height: 73.5 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
