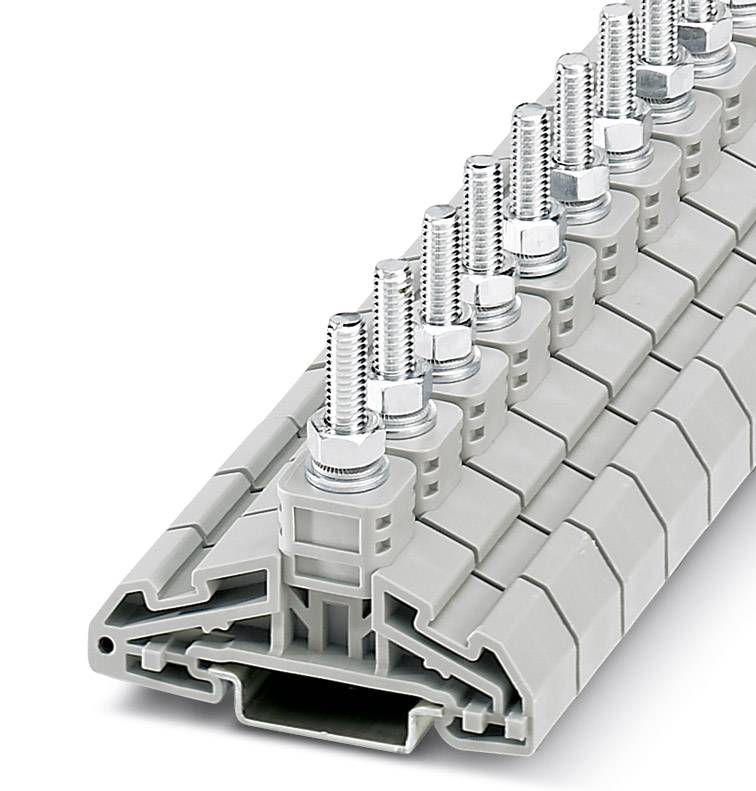

Image similar

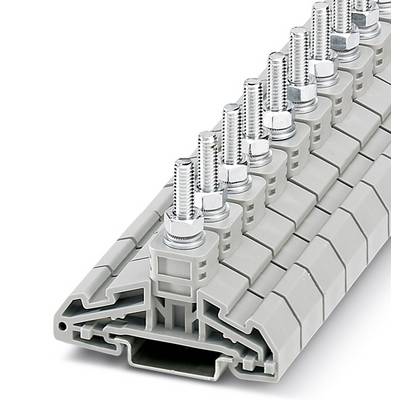

Image similar
High Current Connectors HV M6/1 3049204 Phoenix Contact
EAN:
Part number:
Item no:
Product type
High power connector
Connection
Bolt fixings
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
125 A
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 10.59 / piece)
€ 264.71
plus VAT.
14-day return policy included
Highlights & Details
High Current Connectors HV M6/1
- HV M6/1
Technical specifications
- Product type
High power connector
- Connection
Bolt fixings
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
2.50 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
14
- AWG max.
2
- Clamp width
16 mm
- No. of rows
1
- Number of pins
1
- Factory colour
Grey
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Nominal voltage
1000 V
- Manufacturer part #
3049204
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
HV M6/1
- Dim
(L x W x H) 67 x 16 x 55 mm
- Width
16 mm
- Height
55 mm
- Length
67 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566257 High Current Connectors HV M6/1 3049204 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566257 High Current Connectors HV M6/1 3049204 Phoenix Contact
Description
High Current Connectors, Connection method: Bolt connection, Cross section: 2.5 mm² - 35 mm², AWG: 14 - 2, Width: 16 mm, Height: 55 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
