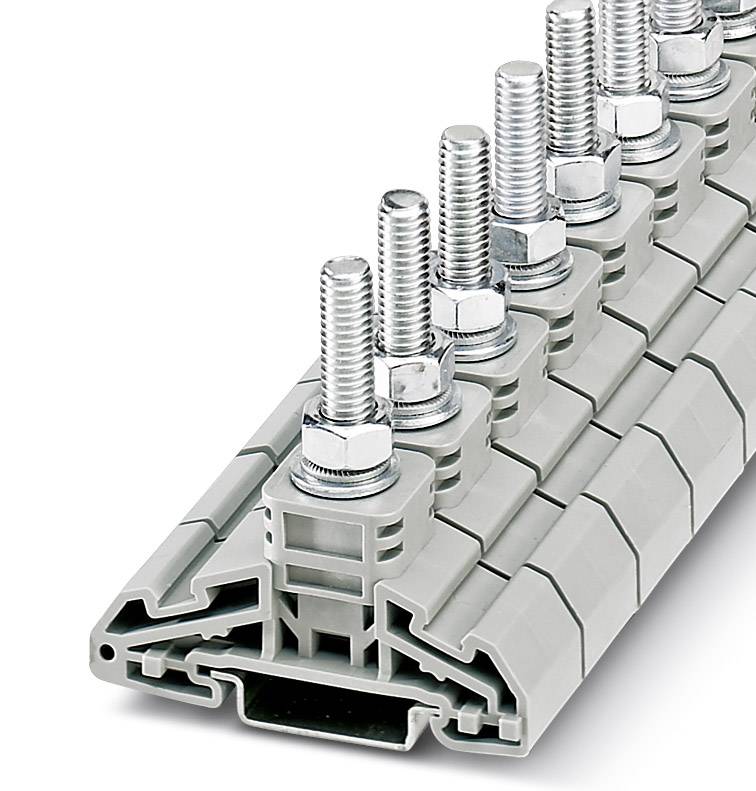

High Current Connectors HV M8/1 3049301 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
High power connector
Connection
Bolt fixings
Cross section (flexible) (max.)
50 mm²
Cross section (inflexible) (max.)
50 mm²
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 11.39 / piece)
€ 302.52
-6 %
€ 284.87
plus VAT.
14-day return policy included
Highlights & Details
High Current Connectors HV M8/1
- HV M8/1
Technical specifications
- Packaging type
Piece
- Product type
High power connector
- Features
High current
- Connection
Bolt fixings
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
50 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
50 mm²
- AWG (min.)
14
- AWG max.
1
- Clamp width
21 mm
- No. of rows
1
- Number of pins
1
- Factory colour
Grey
- Nominal current
150 A
- Nominal current - rounded value
150 A
- Nominal voltage
1000 V
- Manufacturer part #
3049301
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
HV M8/1
- Dim
(L x W x H) 67 x 21 x 63.5 mm
- Width
21 mm
- Height
63.5 mm
- Length
67 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566258 High Current Connectors HV M8/1 3049301 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566258 High Current Connectors HV M8/1 3049301 Phoenix Contact
Description
High Current Connectors, Connection method: Bolt connection, Cross section: 2.5 mm² - 50 mm², AWG: 14 - 1/0, Width: 21 mm, Height: 63.5 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
