High-performance clamps in U-Shape STBU 400/175 Bessey STBU40-17-15 Span width (max.):400 mm Nosing length:175 mm
EAN:
Part number:
Item no:
Highlights & Details

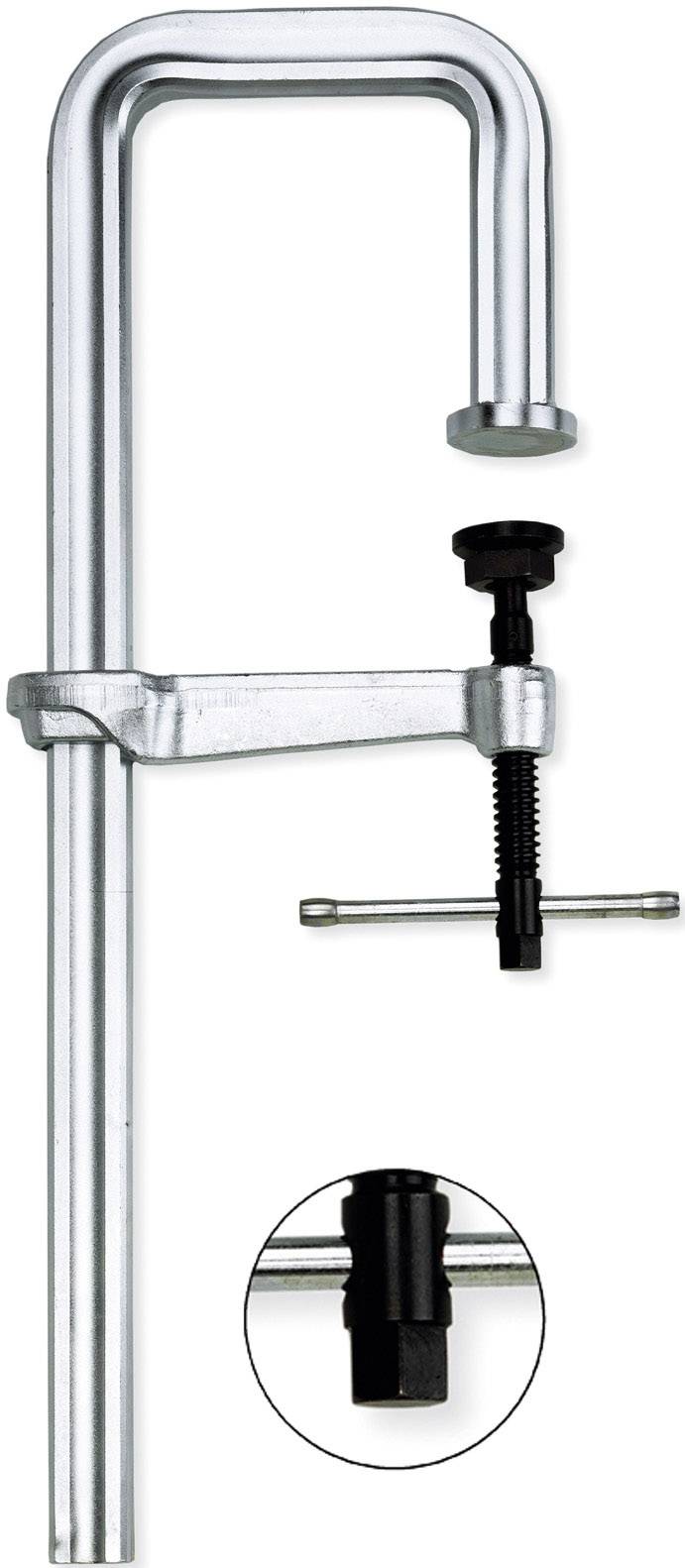

High-performance clamps in U-Shape STBU 400/175
- Clamping force up to 22,000 N at tightening torque of 80 Nm
- Double-sided step-over clamping, specially suited for T-profiles and double T-profiles
- With 19 mm hexagonal bolt on the end of the spindle
- Long life due to heat-resistant pressure plate with sint
Technical specifications
- Product type
L clamp

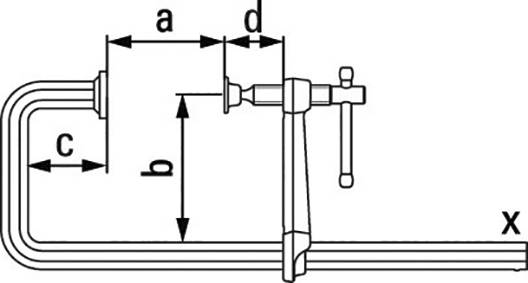

- Span width (max.)
400 mm
- Nosing
175 mm
- Weight
7.96 kg
- Content
1 pc(s)
- Clamping range
500 mm mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 647176 High-performance clamps in U-Shape STBU 400/175 Bessey STBU40-17-15 Span width (max.):400 mm Nosing length:175 mm
Description
Features
- The clamping force of up to 22,000 N at a anzugsdrehoment of 80 Nm

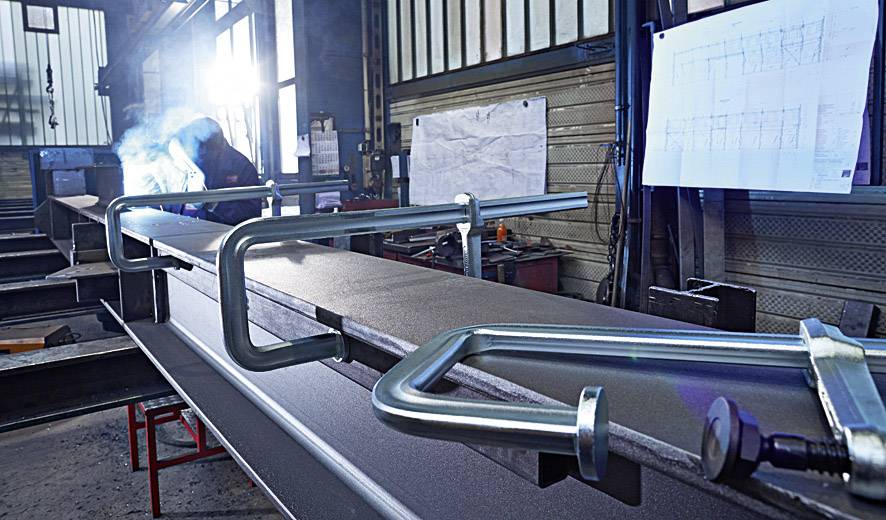

- Both-sided cross-clamping, especially suitable for T and double-T profiles
- With hexagonal 19 mm at the locker woes
- Long life thanks to the special heat-resistant pressure plate with sintered steel insert, can be tilted up to 35°
Hints
This text is machine translated.
