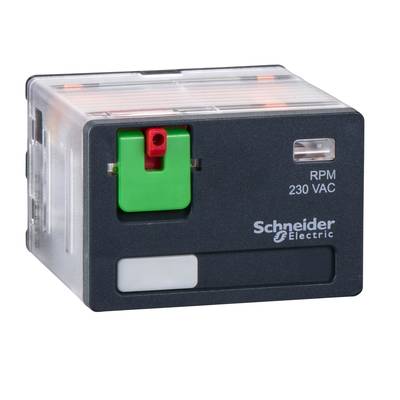

High-performance relay Push-fit Schneider Electric RPM41P7 4 change-overs 230 V AC 10 pc(s)
EAN:
Part number:
Item no:
Product type
High-performance relay
Operating voltage
230 V AC
Contact type
4 change-overs
Mounting type
Push-fit
Type
RPM41P7
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 17.23 / piece)
€ 172.26
plus VAT.
14-day return policy included
Technical specifications
- Product type
High-performance relay
- Type
RPM41P7
- Operating voltage
230 V AC
- Permanent current (max.)
15 A
- Contact type
4 change-overs
- Features
+ test button
- Mounting type
Push-fit
- Connection
Pin terminal (flat)
- Content
10 pc(s)
15 A
40
27 mm
53 mm
TRUE
Polarity free
Mono stable
TRUE
Other
FALSE
Plug-in connection
Other
IP40
FALSE
Other
AC
0
0
4
Other
Documents & Downloads
Datasheet
Datasheet 2923680 High-performance relay Push-fit Schneider Electric RPM41P7 4 change-overs 230 V AC 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2923680 High-performance relay Push-fit Schneider Electric RPM41P7 4 change-overs 230 V AC 10 pc(s)
Information
Information 2923680 High-performance relay Push-fit Schneider Electric RPM41P7 4 change-overs 230 V AC 10 pc(s)
Information 2923680 High-performance relay Push-fit Schneider Electric RPM41P7 4 change-overs 230 V AC 10 pc(s)
Information 2923680 High-performance relay Push-fit Schneider Electric RPM41P7 4 change-overs 230 V AC 10 pc(s)
Description
Zelio relay Power relay RPM as a component. Number of contacts 4, execution relay changer, contact load capacity each 15 A. Coil control voltage 230 VAC. Mechanical position indicator yes, LED display no. Test button for testing the contacts yes, test lever for permanent switching for test purposes yes, operation without tools. Stable pins connections. Mounting in separate plug socket.
