High-power clamp STBS 500/200 Bessey STBS50 Span width (max.):500 mm Nosing length:200 mm
EAN:
Part number:
Item no:
Highlights & Details

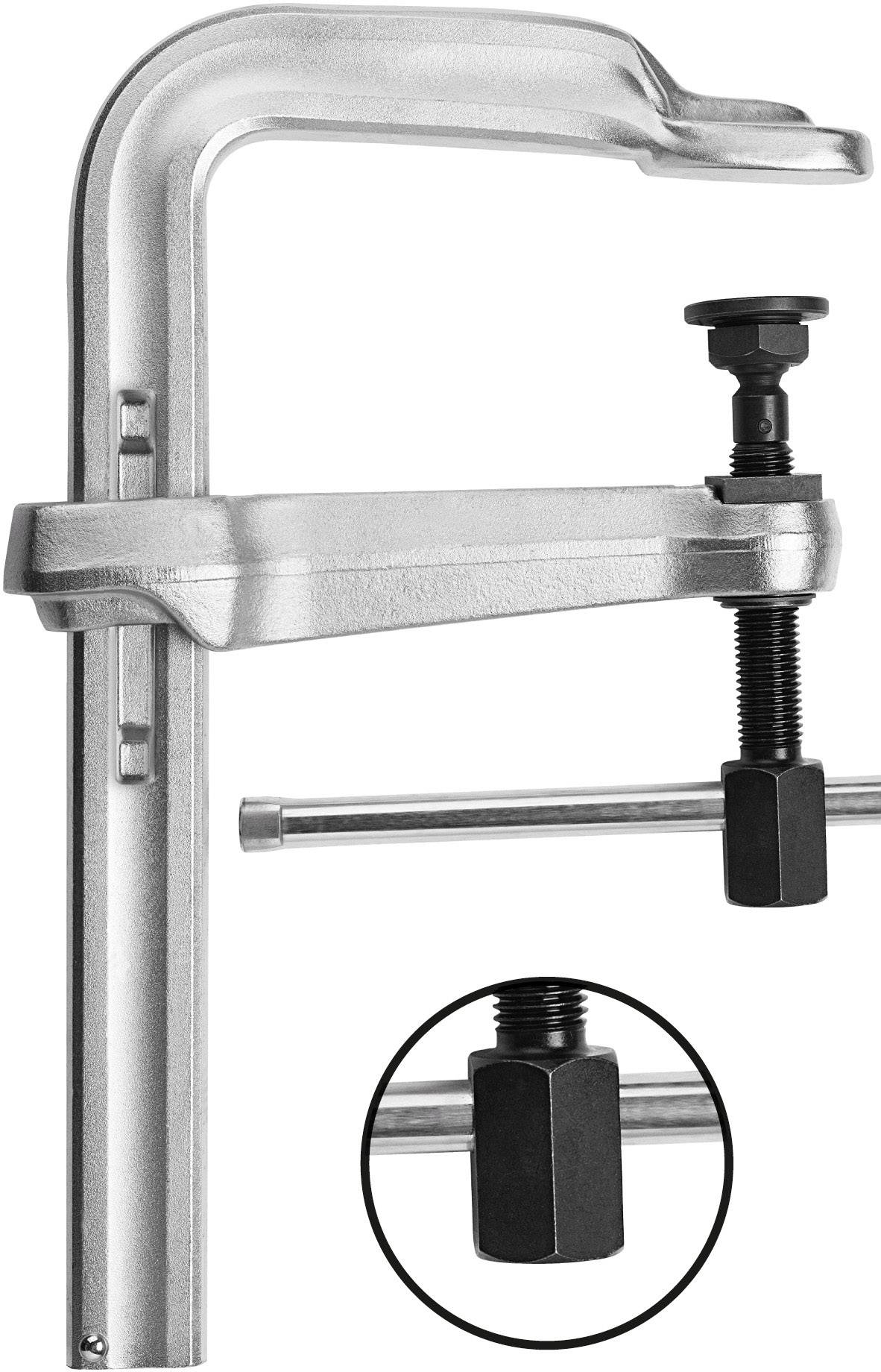

High-power clamp STBS 500/200
- Clamping force up to 35,000 N at tightening torque of 100 Nm
- Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°
- With 36 mm hexagonal bolt on the end of the spindle
- With wedge for fixing the sliding arm
Technical specifications
- Product type
L clamp
- Span width (max.)
500 mm
- Nosing
200 mm
- Weight
12.17 kg
- Content
1 pc(s)
- Clamping range
500 mm mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 647166 High-power clamp STBS 500/200 Bessey STBS50 Span width (max.):500 mm Nosing length:200 mm
Description
Features
- The clamping force of up to 35,000 N at a tightening torque of 100 Nm
- Long life thanks to the special heat-resistant pressure plate with sintered steel insert, can be tilted up to 35°
- With hexagonal 36 mm at the locker woes
- With wedge to Sliding bracket
Hints
This text is machine translated.
