HIKMICRO LYNX S LC06S IR camera 1 x to 4 x digital zoom 6.2 mm
EAN:
Part number:
Item no:
Total (€ 466.39 / piece)
€ 466.39
plus VAT.
14-day return policy included
Highlights & Details

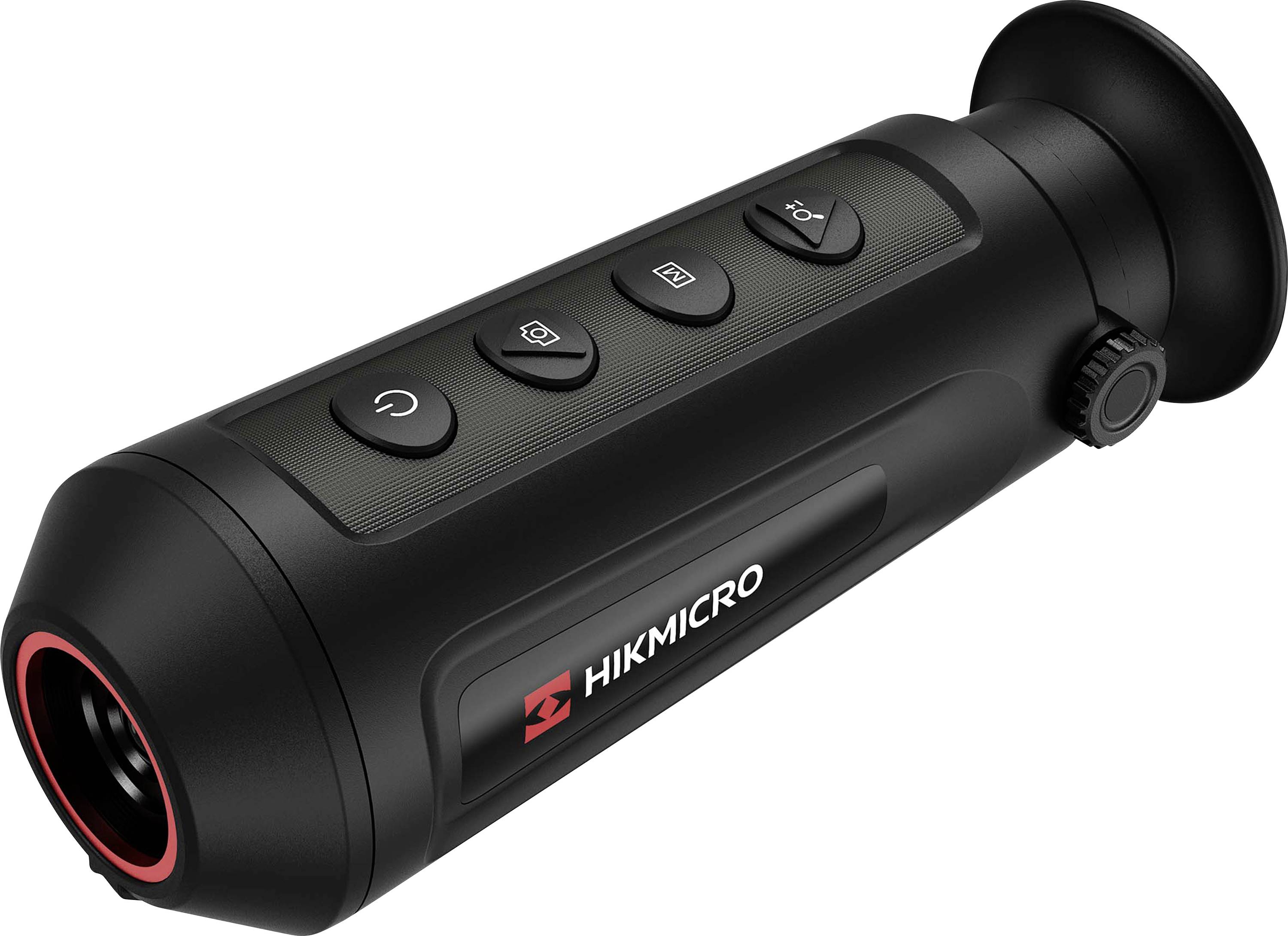

HIKMICRO LYNX S INFRARED CAMERA
- High-resolution 0.81 cm (0.32 inch) OLED display with clear and crisp images
- 1.6x to 4.0x digital zoom
- 50 Hz image frequency fluid and detailed image reproduction
- VOX Uncooled Focal Plane Arrays high image quality in all lighting conditions
- Multiple color palettes, adaptable to different environments
- Focus free operation Immediate operational readiness without manual focus
- Water and dust proof according to IP67 for extreme conditions
Technical specifications
- Frame rate: 50 Hz
- 17 μm pixel interval
- Answer Wave range: 8 μm to 14 μm
- Focus mode: Focus free
- Min Focussing distance: 1 m
- Degree/m at 100 m: 43.8 m x 32.9 m.
- 800 x 600 pixels (OLED)
- Pallets: Black hot, white hot, red hot, fusion
- FFC (Flat Field Correction) mode: Auto, Manual, External Correction
- Eye relief 6 mm
- Dioptres (range): -5D to +4D
- Brightness setting: Yes
- Pitch adjustment: Cold, warm
- Contrast setting: Yes
- Video recording: Yes
- Capture snapshot: Yes
- Audio recording: Yes
- Standby mode: Yes
- PIP: Yes
- Wi-Fi hotspot: Yes
- Hot lane: Yes
- Measurement of the distance: Yes
- Battery type: Rechargeable lithium battery
- Battery life: 10 hours continuous operation with CVBS and hotspot off (at 25°C) / 8.5 hours continuous operation with CVBS and hotspot on (at 25°C)
- USB-C DC 5 V / 2 A, supports external power supply
- Weatherproof IP67
- Working temperature: -20 °C to 55 °C
- Product type
IR camera
- Magnification
1 x to 4 x digital zoom
- Lens Ø
6.2 mm
- Dim
(L x W x H) 158.4 x 60.4 x 57 mm
- Resolution
160 x 120 p
- Type
Monocular
- Viewing angle
24.7 ° x 18.7°
- Weight
250 g
- Max. observation distance
250 m
- Width
60.4 mm
- Height
57 mm
- Length
158.4 mm
- Power supply
Rechargeable battery
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3375503 HIKMICRO LYNX S LC06S IR camera 1 x to 4 x digital zoom 6.2 mm
Description
The HIKMICRO LYNX S LC06S is a compact and powerful infrared monocular, suitable especially for hunters, outdoor activities and nature observation as a perfect and reliable companion and provides clear and detailed pictures even in total darkness. With its compact and light design this monocular offers an ideal combination of mobility and performance.
The LYNX S LC06S is equipped with a high-resolution 0.81 cm (0.32 inch) OLED display (800 x 600 pixels), which ensures optimum display. The display offers a wide viewing angle, intensive colors and a low power consumption, WAS enables longer operating times. Thanks to a refresh rate of 50 Hz, fluid and precise images are displayed, which do not tire the eyes even upon a longer viewing.
With a detection range of up to 250 meters and a large field of vision of 43.8 m at 100 m distance, the LC06S model is particularly suitable for hunting and observing nature in forest areas.
The integrated 8 GB memory allows you to store videos and snapshots directly on the device and transfer them to a PC via a type C USB port. The monocular also has a hotspot mode, which enables the user to use his smartphone as an additional screen with the HIKMICRO Sight APP.
The monocular weighs only 250 grams and is easy to transport thanks to its compact design.
This text is machine translated.
The LYNX S LC06S is equipped with a high-resolution 0.81 cm (0.32 inch) OLED display (800 x 600 pixels), which ensures optimum display. The display offers a wide viewing angle, intensive colors and a low power consumption, WAS enables longer operating times. Thanks to a refresh rate of 50 Hz, fluid and precise images are displayed, which do not tire the eyes even upon a longer viewing.
With a detection range of up to 250 meters and a large field of vision of 43.8 m at 100 m distance, the LC06S model is particularly suitable for hunting and observing nature in forest areas.
The integrated 8 GB memory allows you to store videos and snapshots directly on the device and transfer them to a PC via a type C USB port. The monocular also has a hotspot mode, which enables the user to use his smartphone as an additional screen with the HIKMICRO Sight APP.
The monocular weighs only 250 grams and is easy to transport thanks to its compact design.
This text is machine translated.
Features
- Integrated 8 GB memory stores videos and pictures directly in the device
- Rechargeable lithium battery lasts for up to 10 hours
- User-friendly UI design and quick access to the functions
- Compact dimensions, fits in every pocket and is easy to transport
- Built-in WLAN Hotspot allows you to connect and control via APP
- Contrast and brightness adjustment for optimized image display
- Type-C USB interface
Scope of delivery
- HIKMICRO LYNX S INFRARED CAMERA
- Fuzz free cloth
- Charging cable (USB type-C)
- Protective case
- Quick start guide
