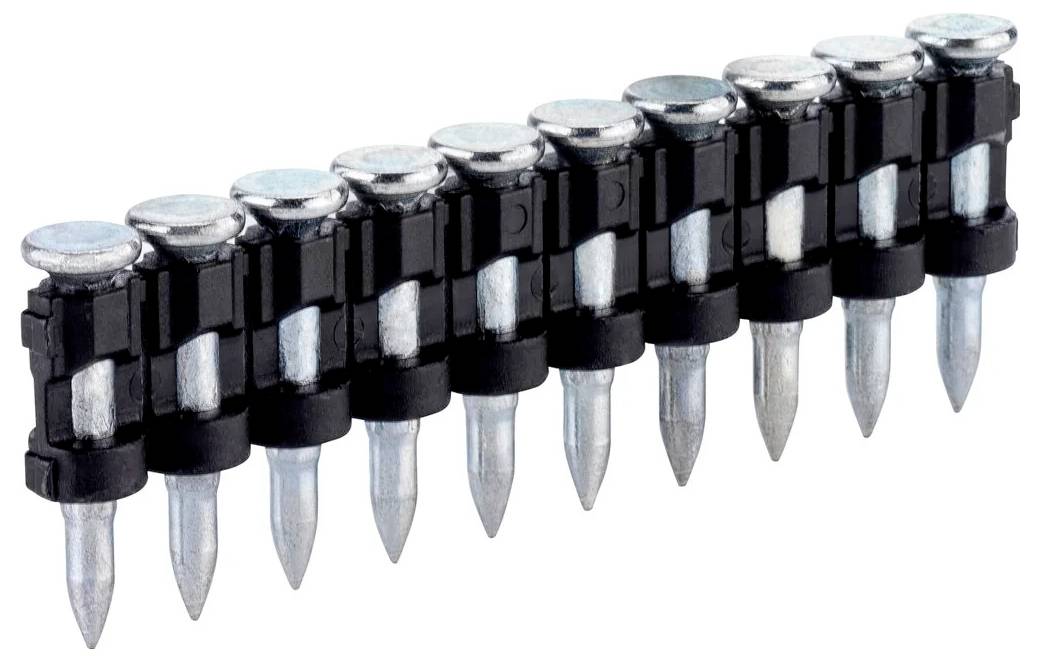

HiKOKI 4100468 Crete nail
EAN:
Part number:
Item no:
Technical specifications
- Diameter 3 mm
- Head diameter 6.2 mm
- Shaft diameter: 3 mm
- Total length 17 mm.
- Shaft form: Smooth
- Connection angle 0°
- Dimensions: 3.0 x 17
- Use with: Concrete
- Coating: Galvanized
- Concrete coating: No.
- Hardened: Yes
- Material quality: Hardened steel
- Head shape: Round
- Tip shape: Step-Point tip
- Bound material: Plastic strips
- Product type
Crete nail
- Max. nail length
17 mm
- Dim
(L x W) 17 mm x 3 mm
- Length
17 mm
- Width
3 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3792040 HiKOKI 4100468 Crete nail
Description
Extra-hardened nails (up to 55 HRC) for attachments in high-strength concrete (up to C50/60) as well as for mounting on or in steel profiles. Designed for industrial and heavy-duty applications such as sub-structures and the mounting of metal profiles.
Step Point tip: Improved penetration with lower traction force and lower risk of cracking in brittle surfaces thanks to a gradual displacement of material. Improved guide and centering for a smoother, safer attachment - especially important in metal. Clean steel entry and outlet with minimum burr formation, Ideal for visible or precise assembly.
The special binding of the nails ensures a perfect fit and optimum performance - as a result of which false shots are minimized and the operating time is maximized with HiKOKI concrete nails.
Galvanised design for corrosion protection in applications indoors.
