Buy HiKOKI C3606DPAW2Z Cordless handheld circular saw 36 V

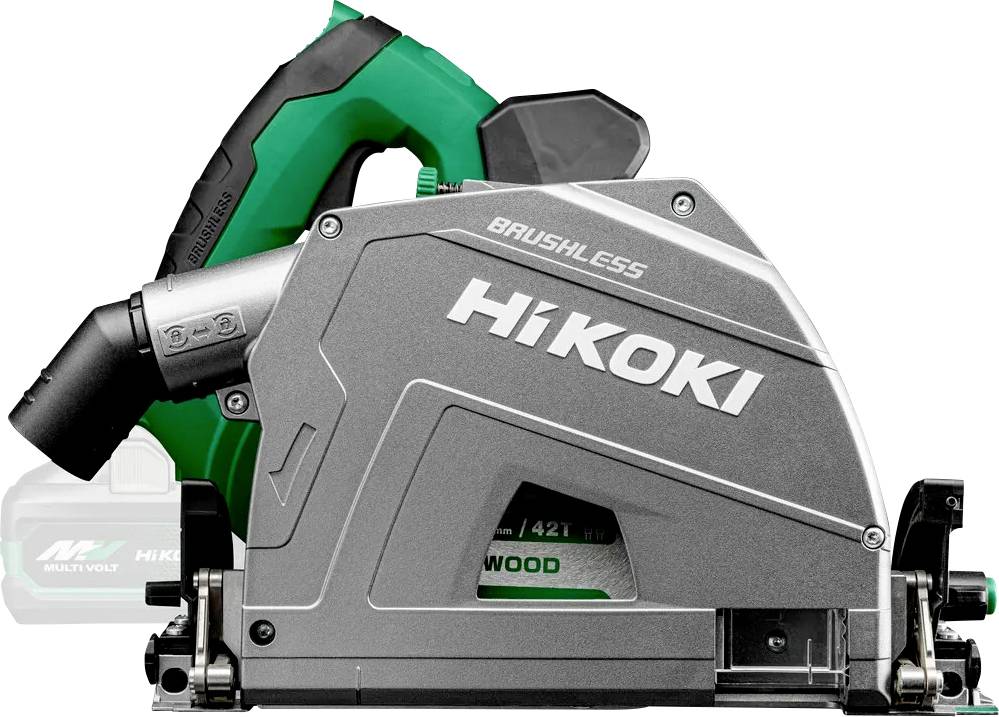

HiKOKI brushless cordless circular saw with dust port, shown in side view on a white background.

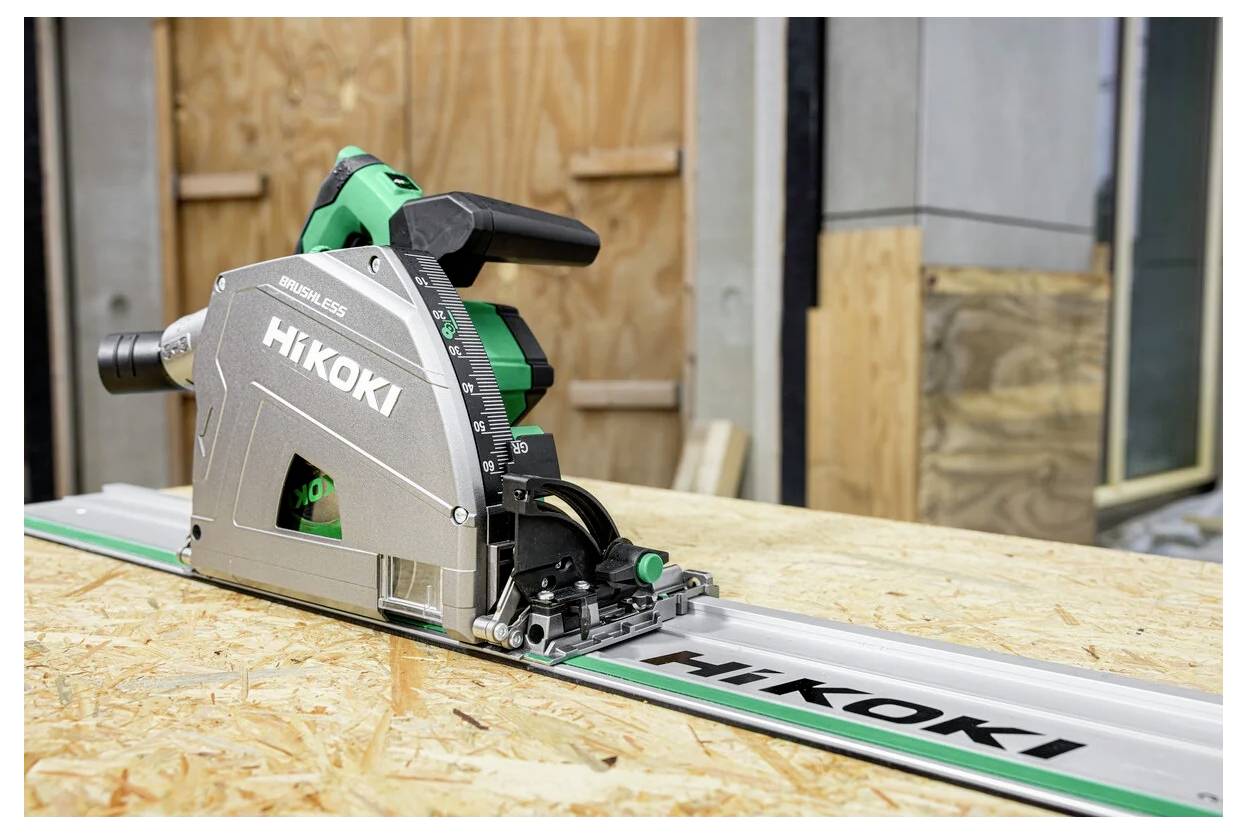

Hikoki track saw resting on a guide rail atop a plywood workbench in a workshop setting.

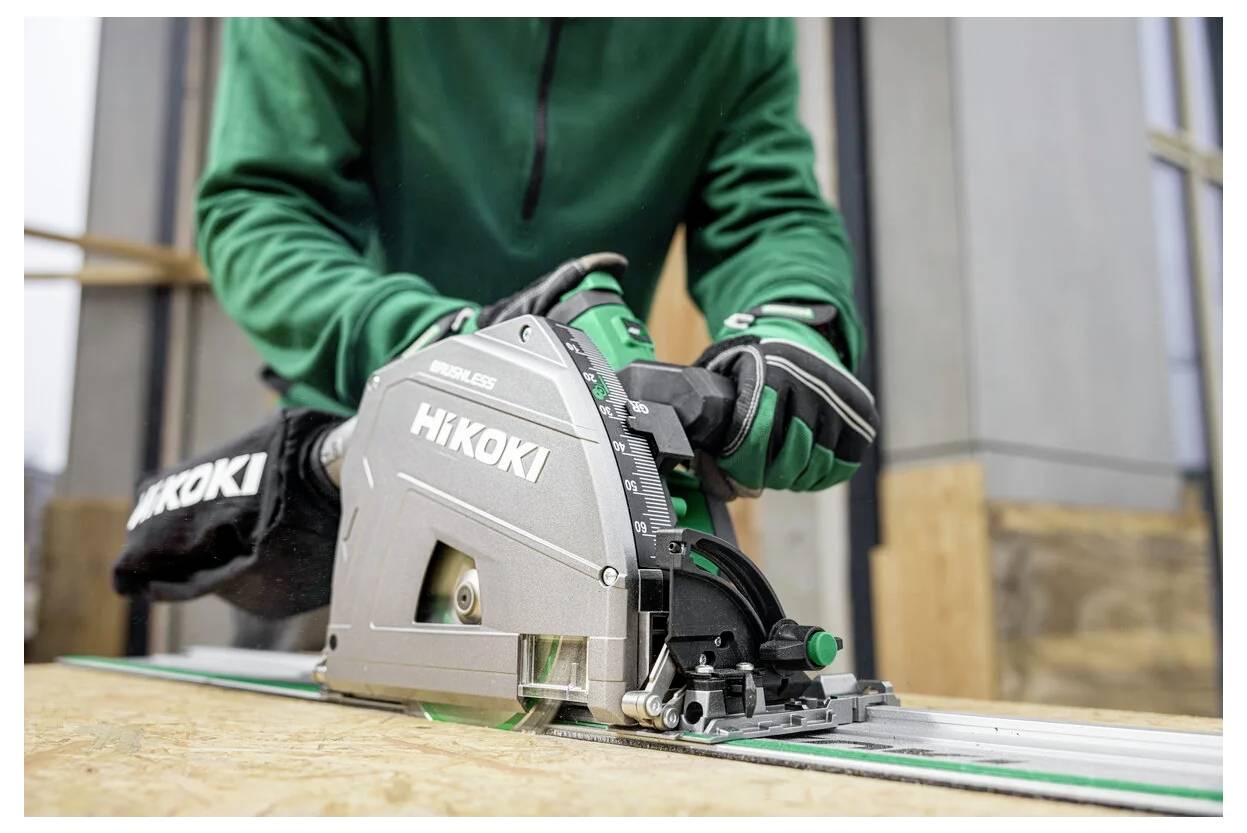

Worker using a HIKOKI circular saw to cut a long board on a workbench at a construction site<br>

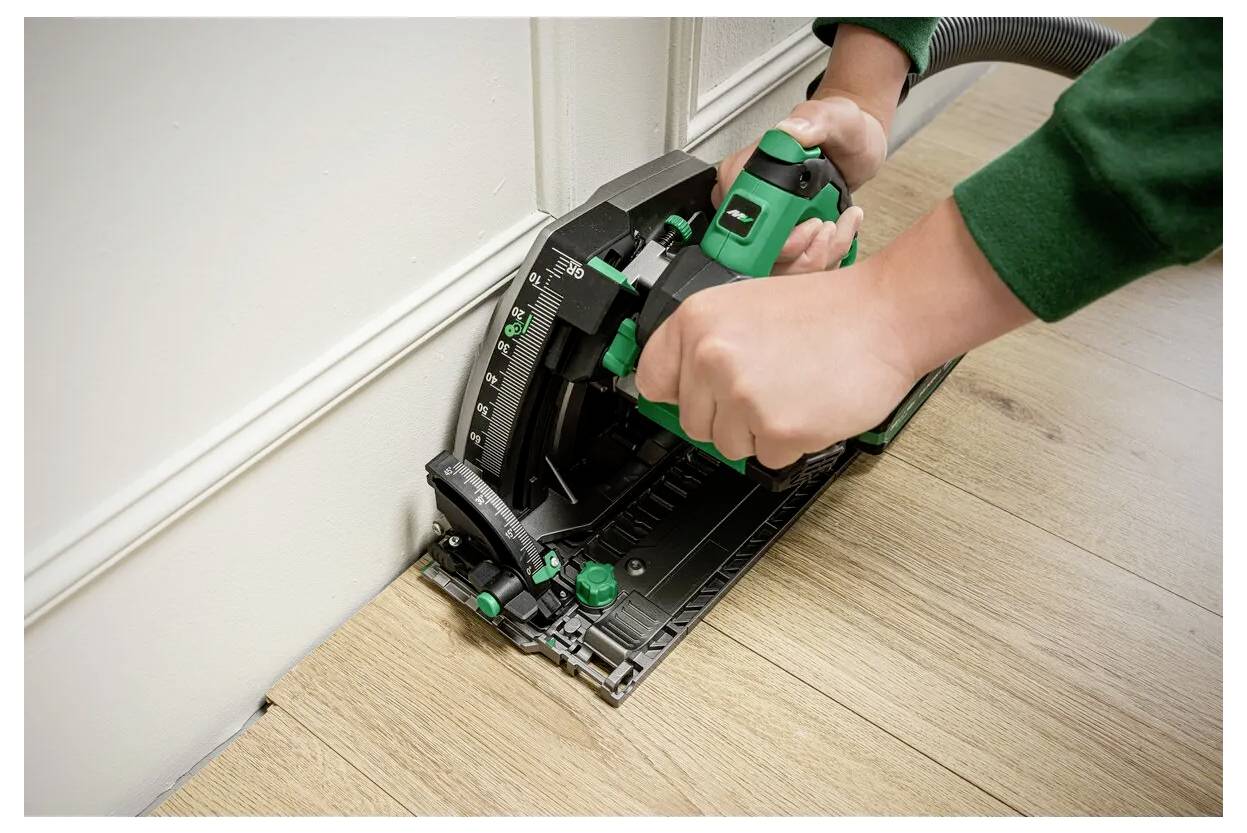

Person using a green handheld power saw to cut a floorboard flush along a wall<br>

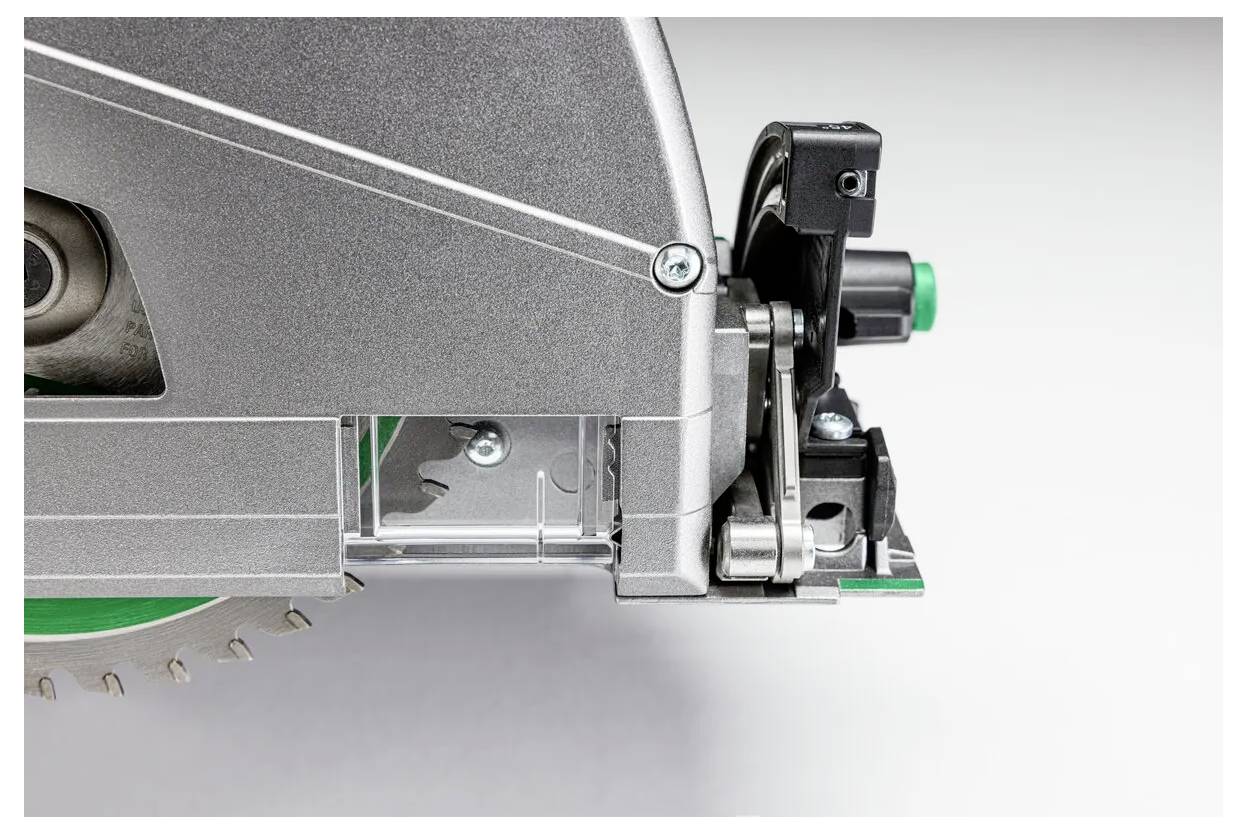

Close-up of a circular saw’s blade guard and handle mechanism, with part of the blade visible at the lower left.

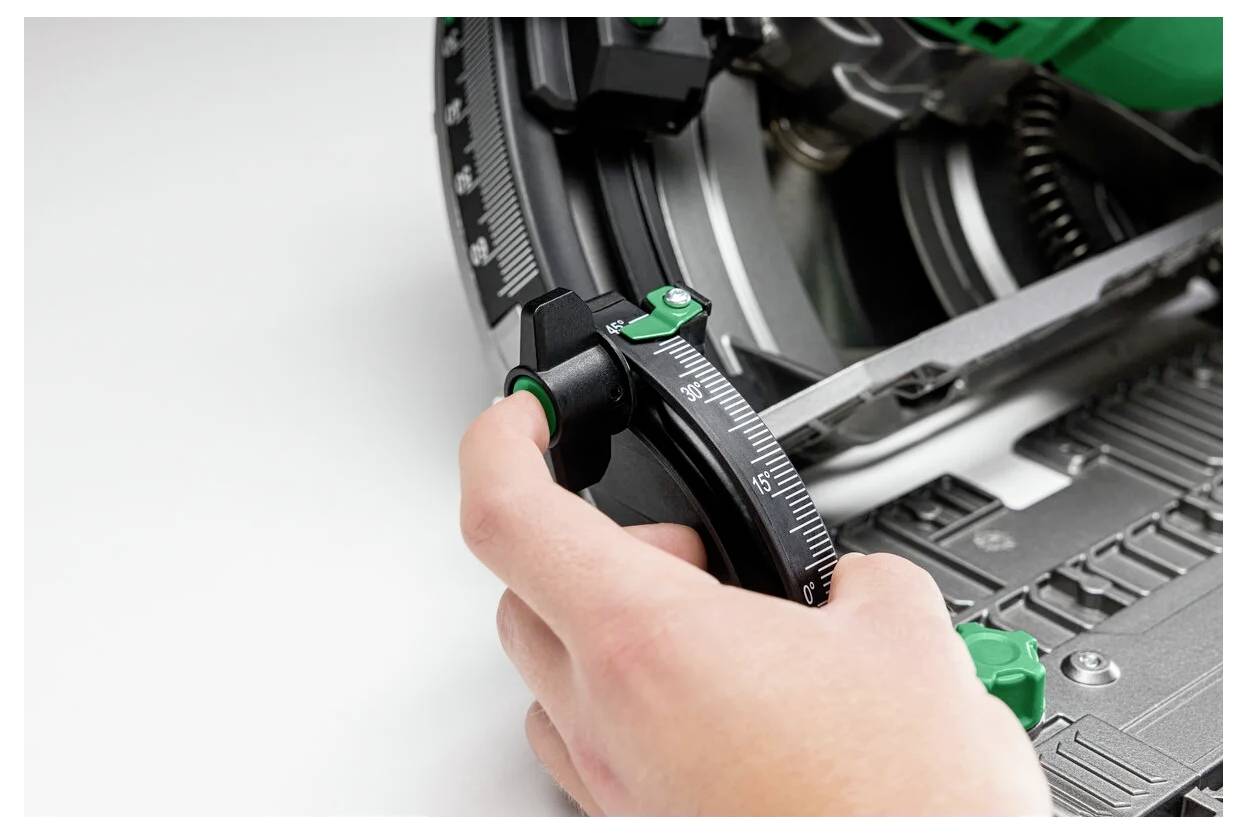

Close-up of a hand adjusting a circular angle gauge on a machine or tool, with precision markings visible.

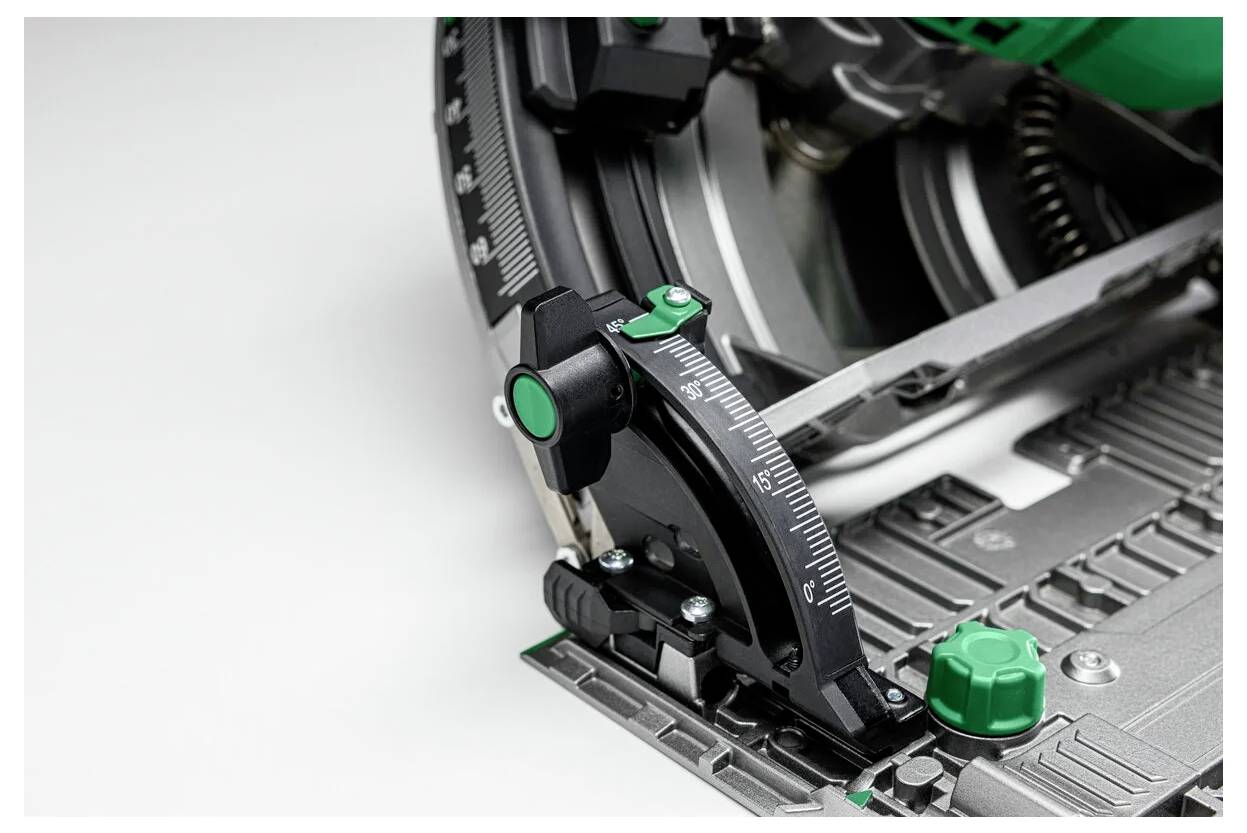

Close-up of a circular saw’s bevel and depth adjustment scale with green locking knobs on the base plate.

Close-up of a green and black miter saw showing the adjustable angle scale and cutting arm.

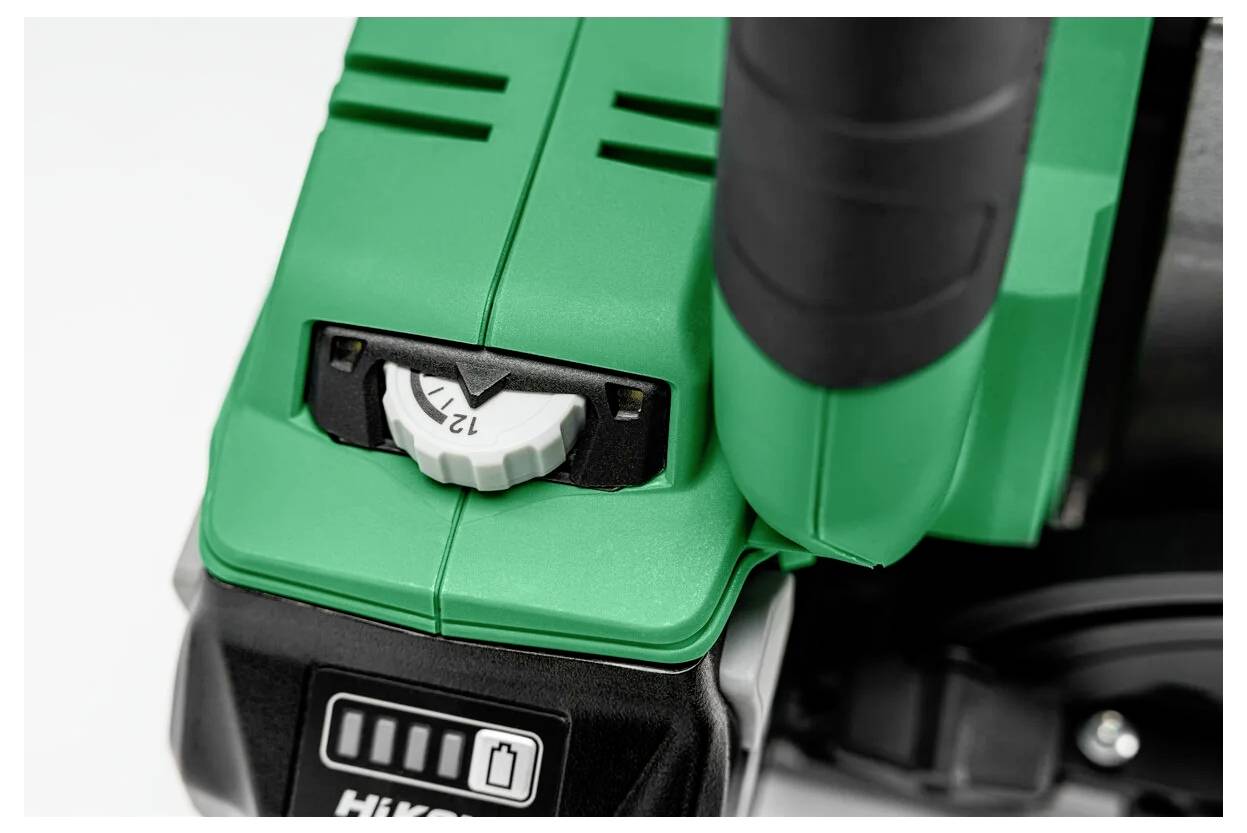

Close-up of a green power tool battery pack with a charge level indicator and a numbered dial on the base.

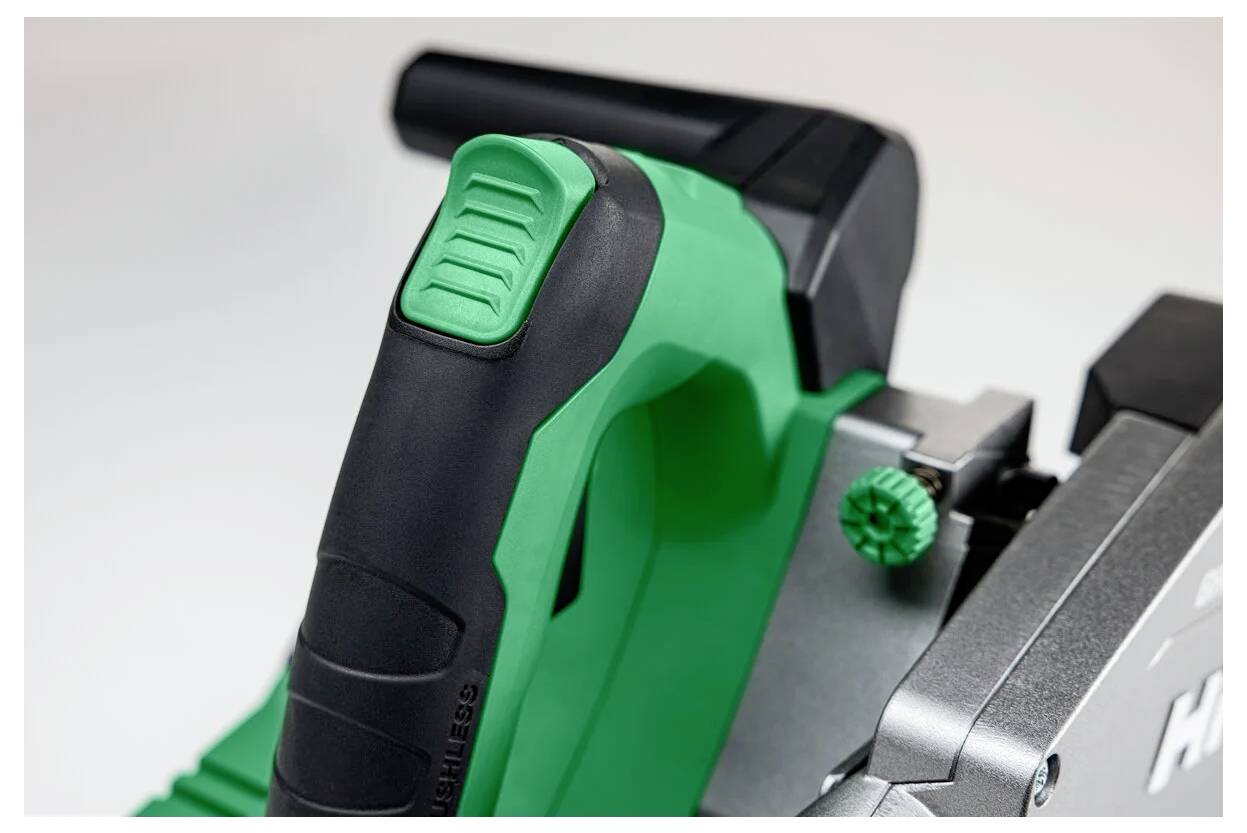

Close-up of a green-and-black cordless power tool, showing the handle and trigger area against a plain background.

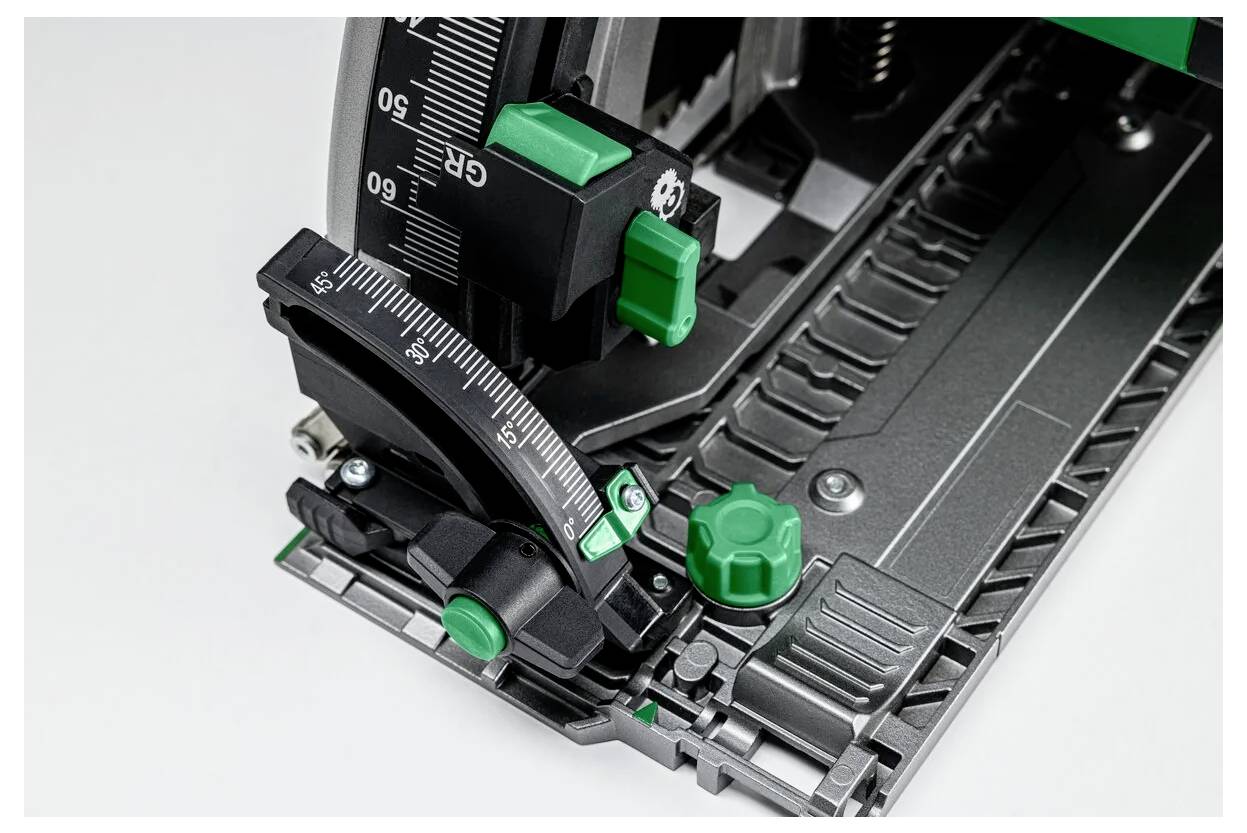

Close-up of a black and green adjustable angle tool with a curved degree scale, ruler markings, and locking knobs on a gray base.<br>

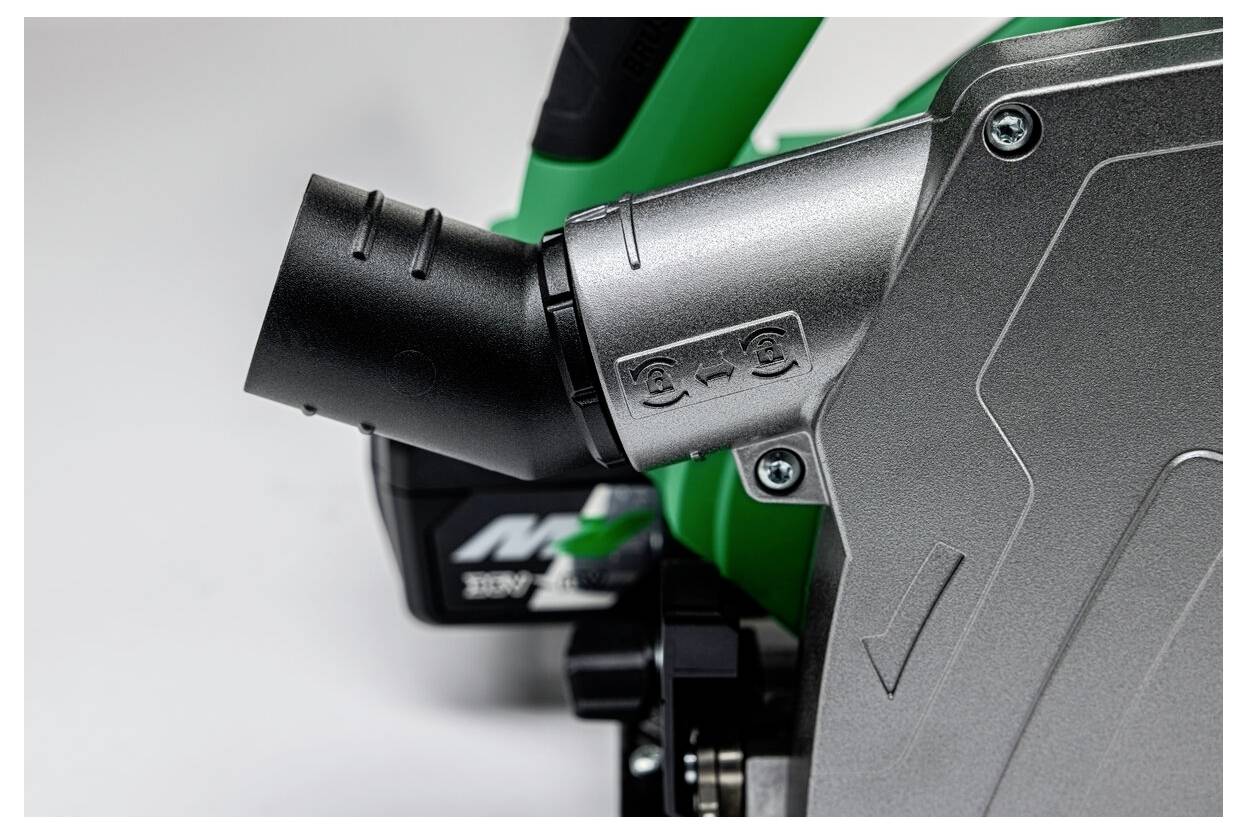

Close-up of a green and gray machine vent or intake housing with visible screws and molded arrows on the side.<br>

Close-up of a gray and black charging connector plugged into a green electric vehicle charging port.

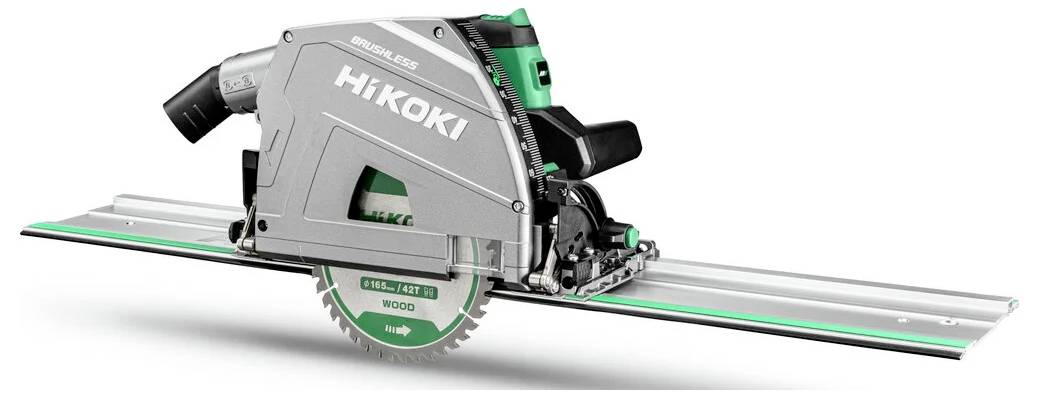

HIKOKI cordless circular track saw with guide rail, shown side view on a white background.

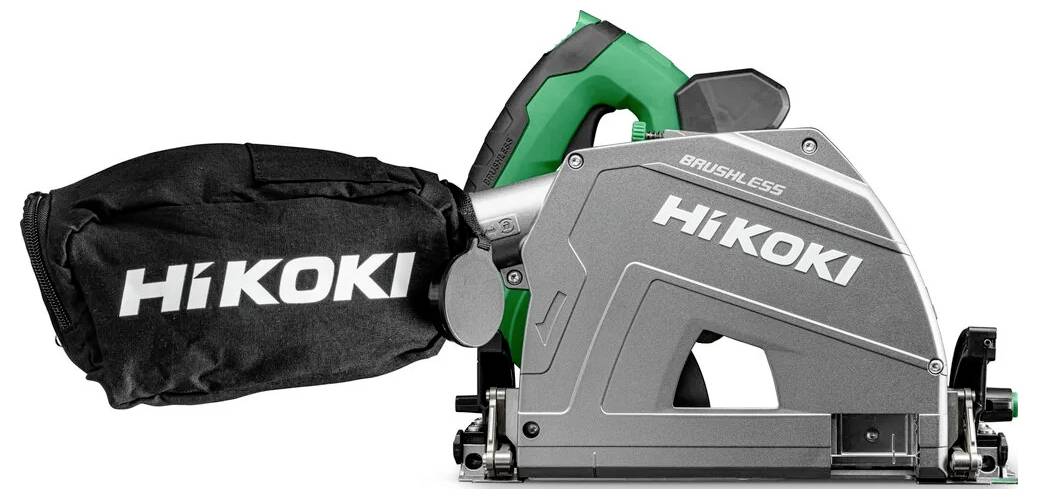

Hikoki cordless brushless cut-off saw with black dust bag attached, shown in side view on a white background.

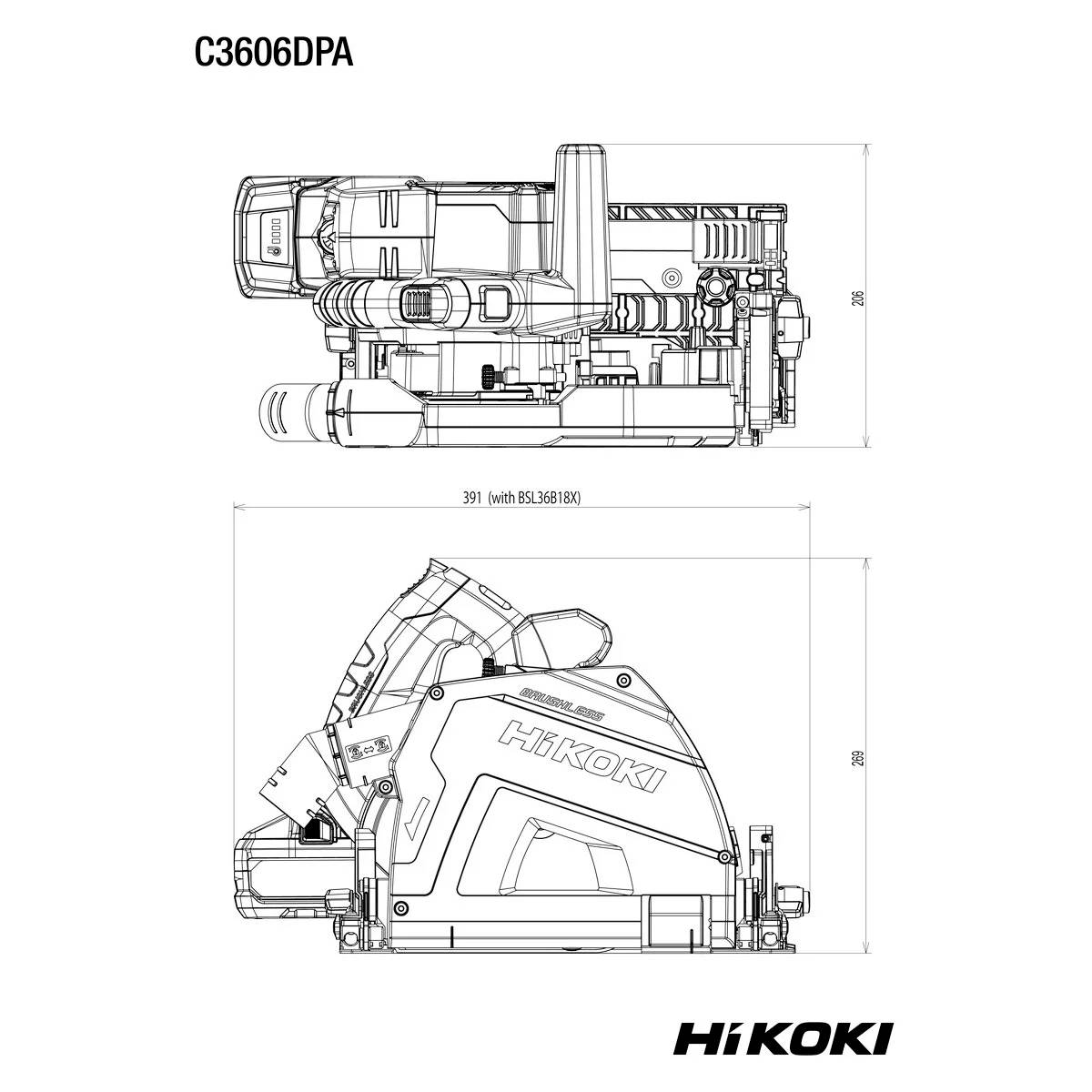

Technical drawing of a HIKOKI C3606DPA circular saw shown in side and top views with overall dimensions labeled.<br>

1/17

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

C3606DPAW2Z cordless handheld circular saw

36 V

Technical specifications

Tool width 200 mm
Tool height 270 mm
Material: Gear covering aluminum die-cast
Brake: Yes
Check protection: Yes
Soft start: Yes
Fans for chips: Yes
Brushless: Yes
Application: Cut chipboard
Vibration: 2.3 m/sec²
Vibration uncertainty K: 1.5 m/sec²
Emission, sound pressure level 91.103 dB
Emission, sound power 102.104 dB
Emission uncertainty kPa: 3 dB

Product type: Cordless handheld circular saw

Saw blade diameter: 165 mm

Bore Ø: 20 mm

Battery voltage: 36 V

Operating voltage: 36 V DC

Cutting depth (max.): 66 mm

Cutting depth (max.) (45°): 43 mm

Length: 390 mm

Weight: 4.40 kg

Weight, information: without rechargeable batteries

Content: 1 pc(s)

No. of power packs included: 0

Idle speed: 2500-5200 /min

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3802361 HiKOKI C3606DPAW2Z Cordless handheld circular saw 36 V

Description

Extremely powerful and the largest maximum cutting depth of 66 mm in its class.
Compatible with HiKOKI guide rails and common guide rails of other brands (Makita, Bosch, Festool, Hilti and others) for maximum flexibility.
Variable speed adjustment for the correct speed for each material.
High user safety through outlet-brake for quick saw-blade stop
Back cut function (-1° / +46°) allows precise, custom cut cuts on the workpiece.

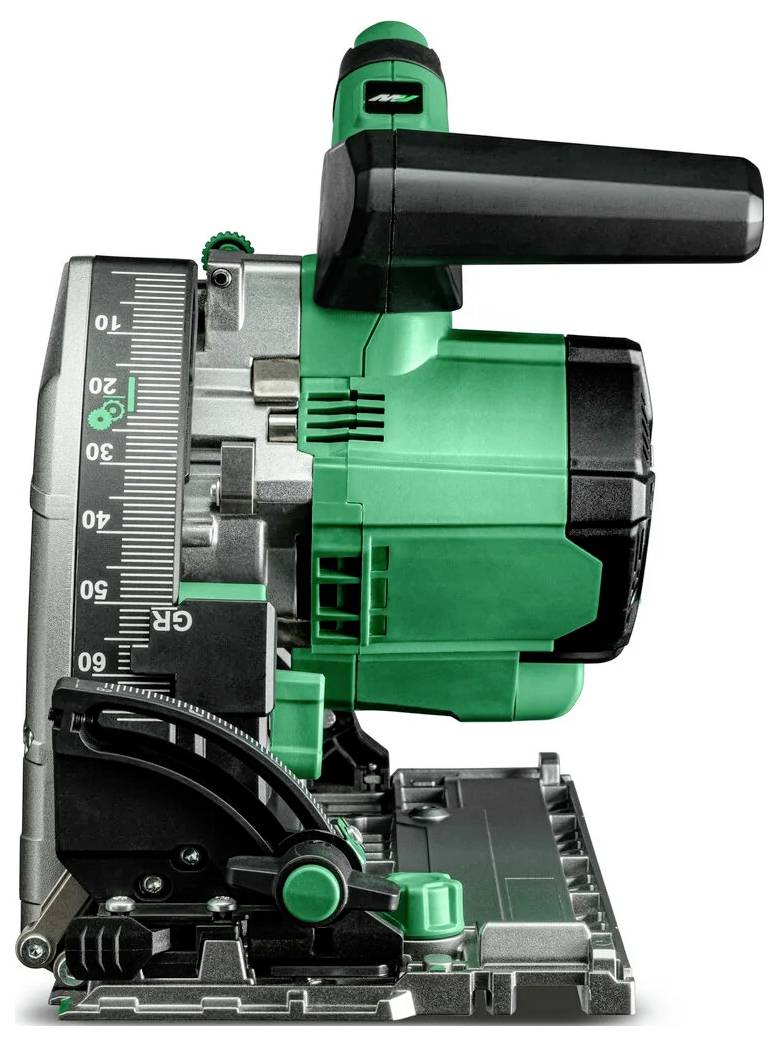

Double depth setting display for a precise depth setting with and without guide rail.
Brushless motor for high power, less wear and more durability.

This text is machine translated.
