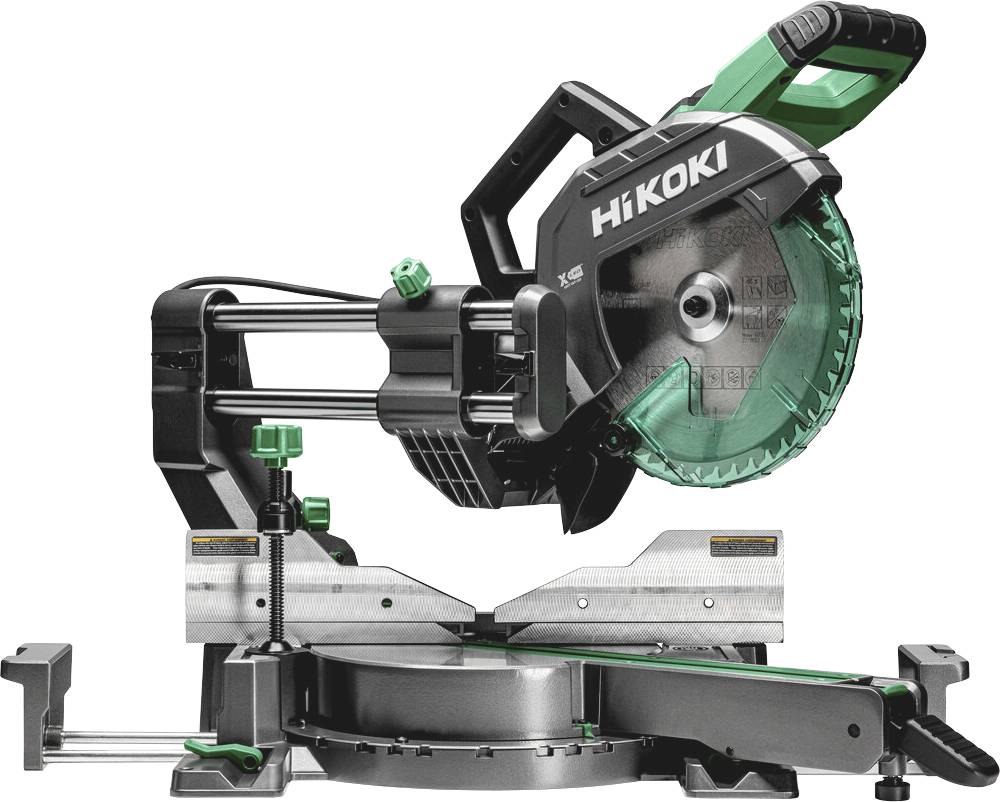

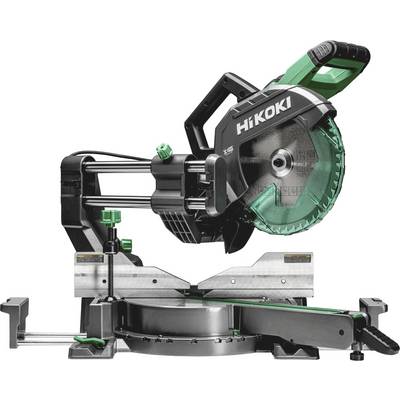

Buy HiKOKI Chopsaw 254 mm 30 mm 1450 W

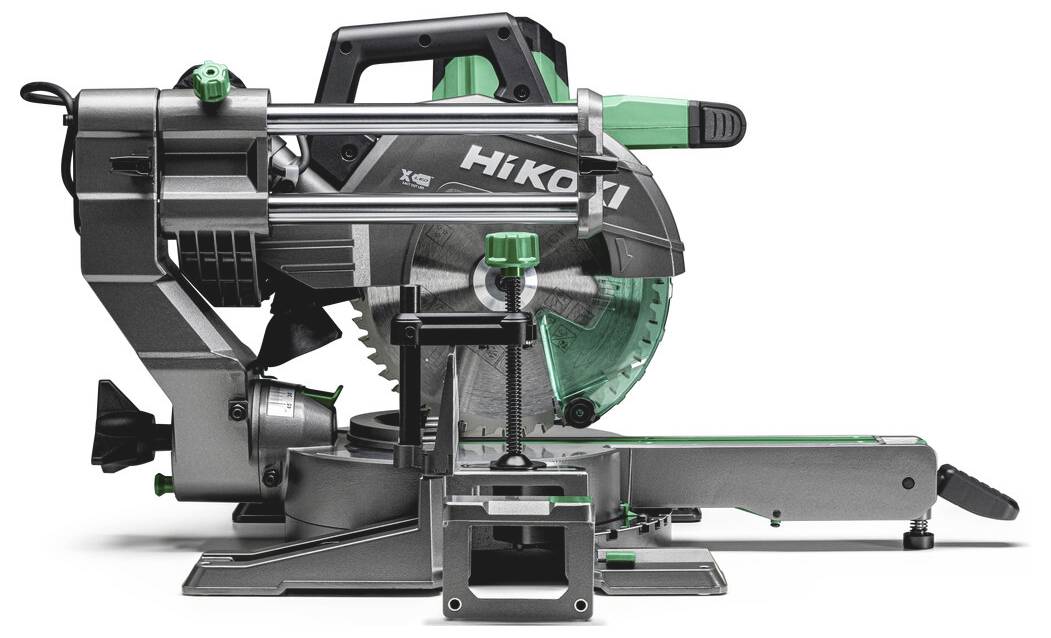

Side view of a Hitachi miter saw with green blade guard, dust bag, and long base, isolated on a white background.

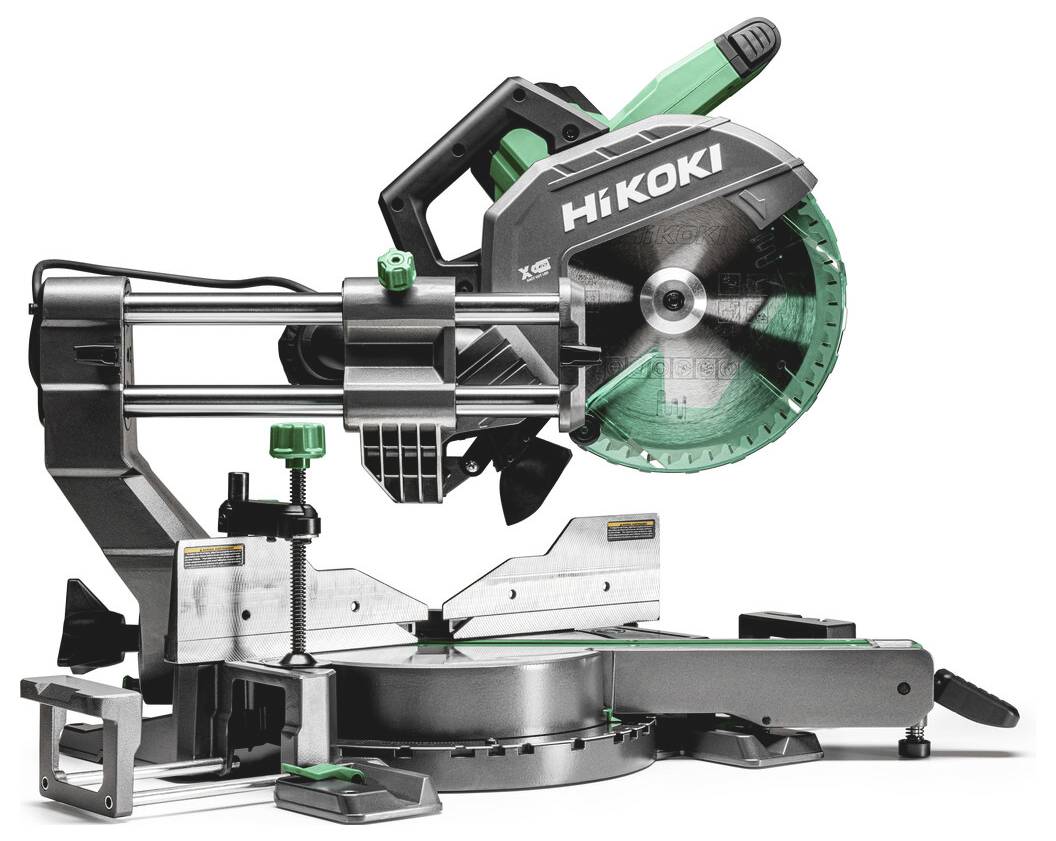

A HiKOKI compound miter saw with green blade guard, rail arms, and clamped workpiece support on a white background.

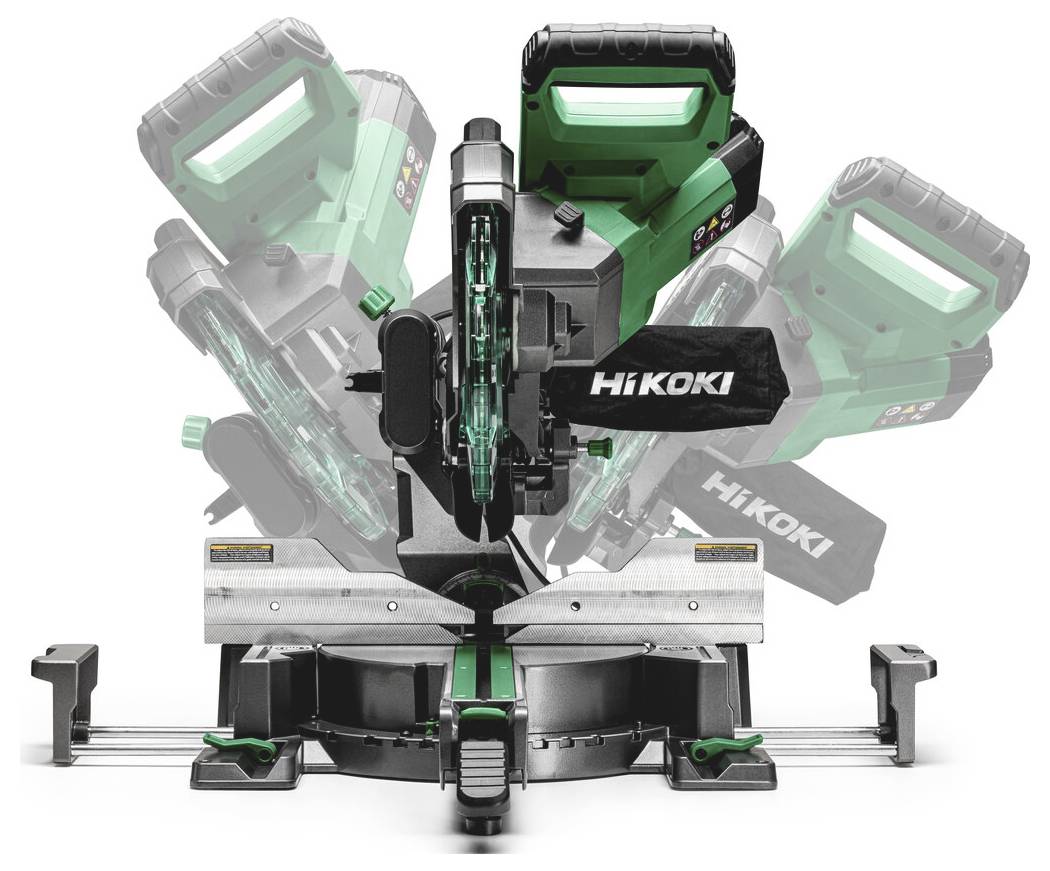

HIKOKI sliding miter saw with a dual-bevel cutting head, shown front-on with translucent overlays indicating multiple angle positions.

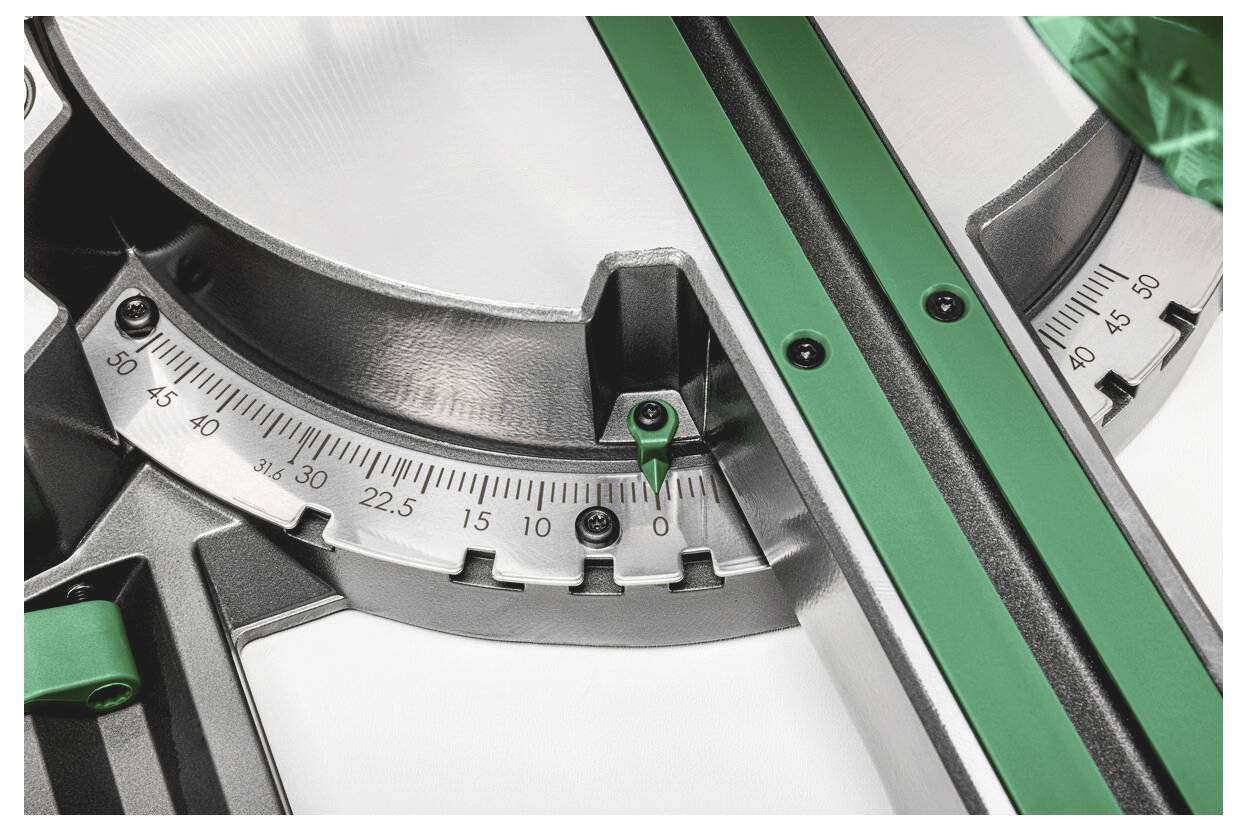

Close-up of a miter saw angle gauge and blade guard, showing the adjustable 0–50 degree cutting scale.<br>

Man using a miter saw to cut a long wooden board in a workshop, wearing safety glasses and earplugs.

A man wearing safety glasses operates a HIKOKI power saw in a workshop, cutting wood on a workbench.

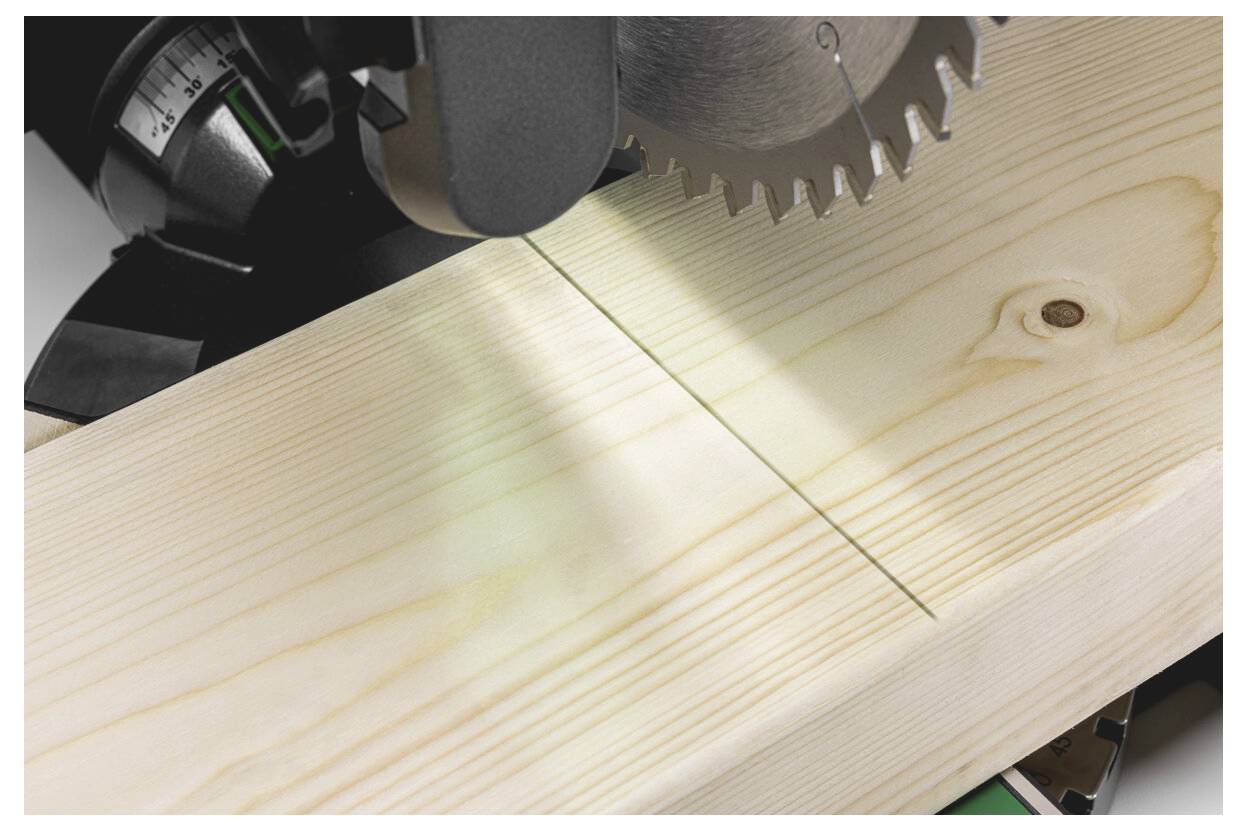

Circular saw cutting a light-colored wooden board, with the blade visible at the top edge<br>

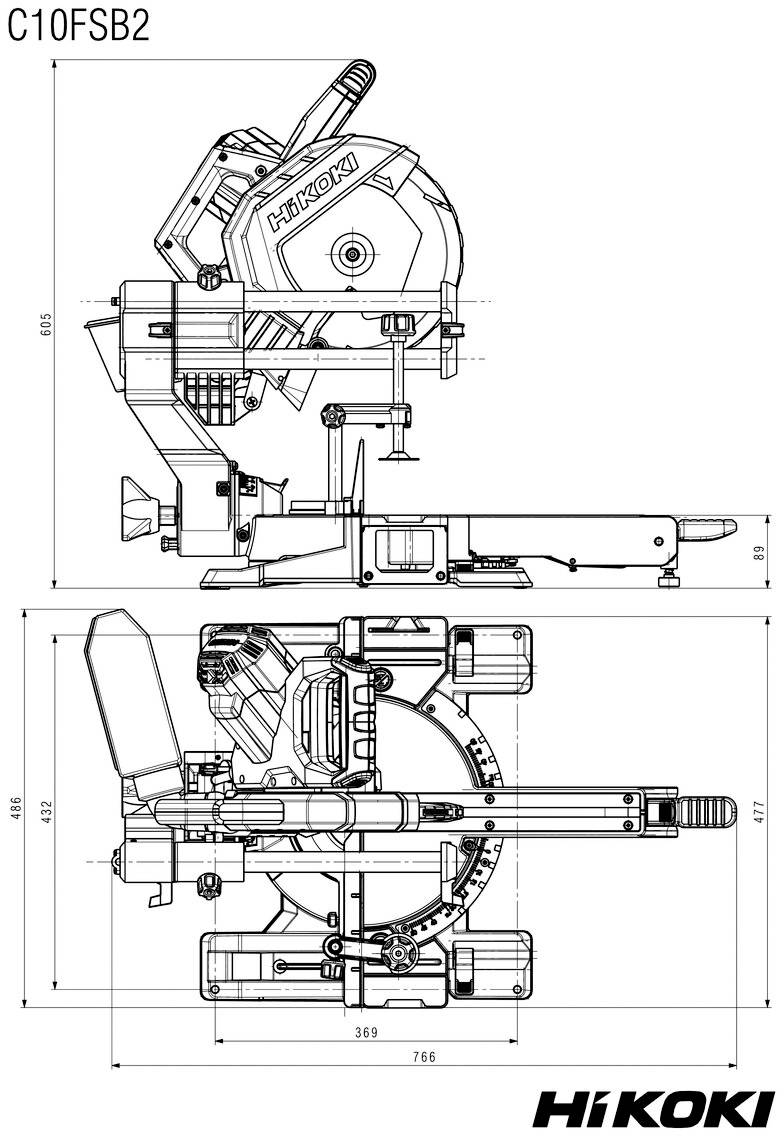

Technical line drawing of a HiKOKI C10FSB2 miter saw, showing side and top views with dimensions.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

HiKOKI chopsaw cable-bound C10FSB2WAZ

1450 W
Cutting depth (max.) (45°/ 90° ): /

Technical specifications

Network frequency: 50~60 Hz
Max. Cutting capacity (0°) 92 x 305 mm
Max. Cutting capacity (chamfer left 45°) 48 x 305 mm
Max. Cutting capacity (chamfer right 45°) 26 x 305 mm
Max. Cutting capacity (miter 45° left/chamfer 45°): 48 x 215 mm
Max. Cutting capacity (miter 45° / chamfer right 45°): 26 x 215 mm
Mitre function: Double miter
Max. Tilt angle (left): 47°
Max. Tilt angle (right): 47°
Max. Mitre angle (left): 50°
Max. Mitre angle (right): 50°
Emission, sound pressure level 103 dB
Emission, sound power 90 dB
Emission uncertainty kPa: 3 dB
Pull function: Yes
LED shadow line: Yes
Groove cutting: Yes
Compact sliding system: Yes
Table extension: Yes
LED Light: Yes

Product type: Chopsaw

Saw blade diameter: 254 mm

Bore Ø: 30 mm

: 1450 W

Operating voltage: 230 V

Dim: (L x W x H) 766 x 477 x 605 mm

Length: 766 mm

Width: 477 mm

Height: 605 mm

Weight: 19 kg

Content: 1 pc(s)

Idle speed: 4500

Documents & Downloads

Datasheet

Datasheet 3814768 HiKOKI Chopsaw 254 mm 30 mm 1450 W

User & Safety Instructions

User & Safety Instructions 3814768 HiKOKI Chopsaw 254 mm 30 mm 1450 W

Description

· Shadow Line technology marks the cut line perfectly without setting expenditure for high-precision cuts
· Compactly designed pulling function without space required behind the chopsaw
· Robust metal miter scale with nine latching points for quick and accurate miter settings
· Maximum flexibility with rotatable table on both sides and tiltable saw head on both sides
· Effective dust extraction through built-in dust collection funnel
· The integrated brake stops the saw blade quickly for high user protection
· Soft start for long life of motor and gear
· The table can be extended to the right and left for sawing wide workpieces; on the right with integrated end stop
· Quick release clamp for a secure fixing of the work-piece
