Name: HiKOKI NR1865DKAW6Z Cordless nail gun w/o battery, w/o charger
Brand: HiKOKI
SKU: 3819422

HiKOKI NR1865DKAW6Z Cordless nail gun w/o battery, w/o charger-0

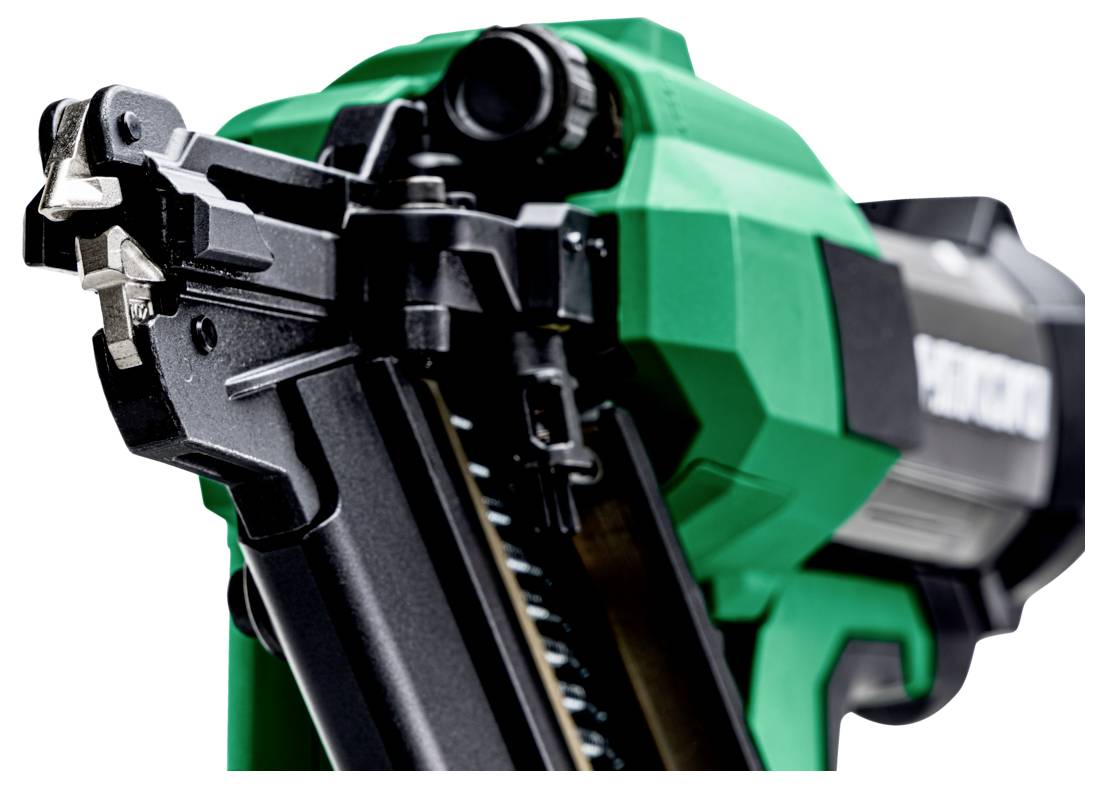

Close-up of a green and black nail gun, showing the front firing tip and magazine against a white background.

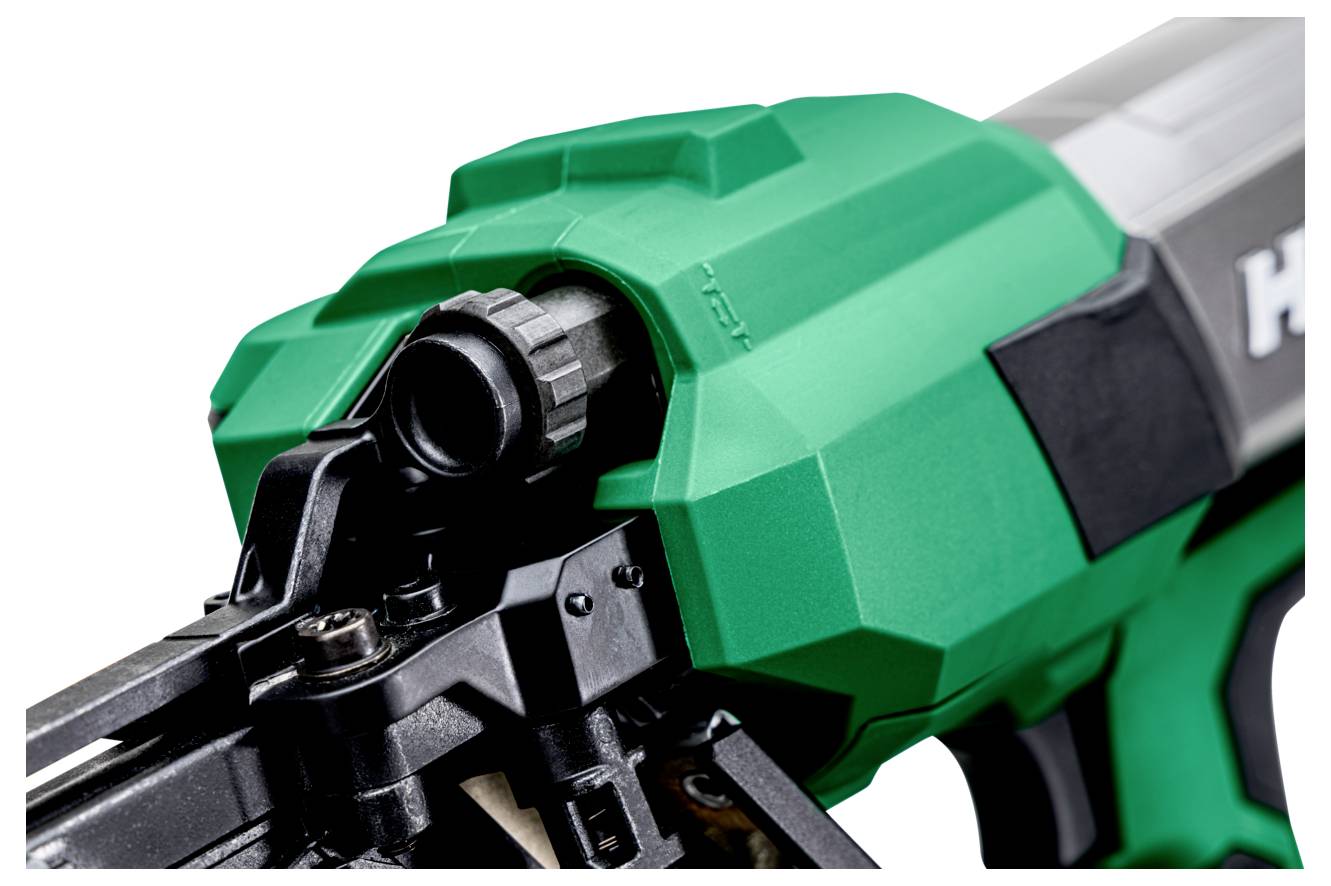

Close-up of a green cordless nail gun, showing the front driving mechanism and part of the handle.<br>

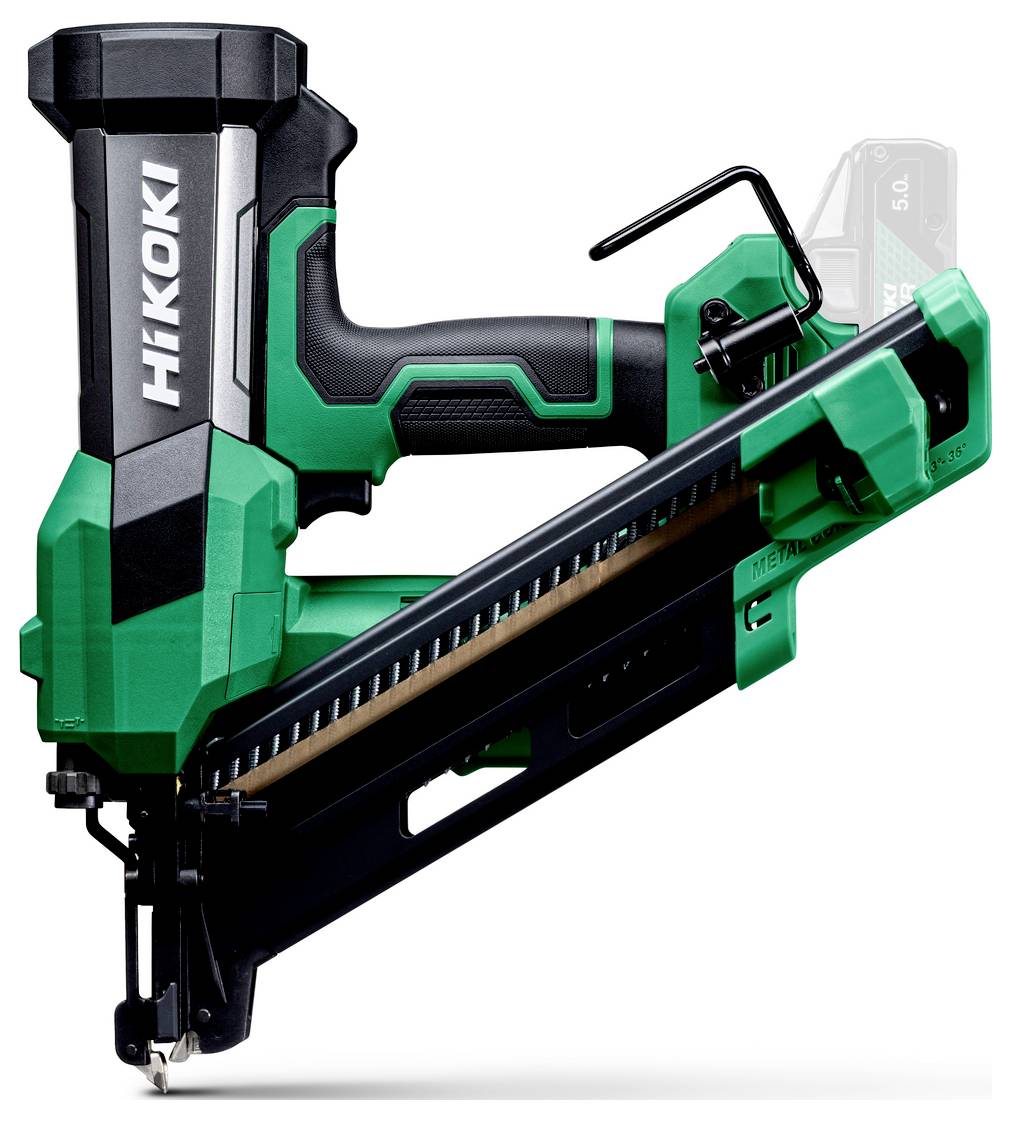

Green and black Hikoki cordless nail gun shown in side view on a white background.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NR1865DKAW6Z cordless anchor

The world's lightest 18 V brushless 65 mm anchor nail driver (34°)
Slim design and strap-tie probe tip for precise, fast nail in wood joints – even in narrow spots
Up to 9× faster fixing of wood joints in comparison to screws or manual nailing
High speed for driving up to 3 nails per second
HiKOKI Air Spring Drive System +: Unique mechanism for highest shooting speed, compact design and maximum service life

Technical specifications

Vibration: 4.2 m/sec²
Vibration uncertainty K: 1.5 m/sec²
Emission, sound power: 105 dB
Emission, sound pressure level 92 dB
Emission uncertainty kPa: 3 dB
Nail arrangement angle: 36° (round head, paper-bound)
Bound nails, type: Paper-connected
Drive system: DC (air spring)
LED light: Yes
Depth setting: Yes
Dry shot ban: Yes
Brushless: Yes

Product type: Cordless nail gun

Features: w/o battery
w/o charger

No. of power packs included: 0

Operating voltage: 18 V

Dim: (L x W) 324 mm x 145 mm

Length: 324 mm

Width: 145 mm

Weight: 3.3 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3819422 HiKOKI NR1865DKAW6Z Cordless nail gun w/o battery, w/o charger

Description

The HiKOKI cordless armature ammeter NR1865DKA 34° was developed for quick and precise fixing of wooden connectors. Its slim design and the strap-tit probe tip enable accurate nail even in inaccessible places. Mounting tasks can be completed efficiently with a speed of up to 3 nails per second and a work progress of up to nine times faster than with screws or manual needles. The HiKOKI Air Spring Drive System+ supports high shooting speeds in a compact design. The wireless operation without hose, compressor or gas cartridge provides for more freedom of movement at the construction site. Anchors up to 64 mm can also be inserted into hard materials. The lightweight design with magnesium components makes it easier to work over long periods of time, while the magazine supports fast loading and a trouble-free workflow. The dry shot lock protects the workpiece and the device with empty magazine and the integrated LED light improves the view in bad light conditions. Thanks to the compatibility with magazines for strip nails, anchor nails and duplex nails, this nail gun is suitable for many different applications on the construction site.

This text is machine translated.
