Name: HiKOKI NR1890DCBWPZ Cordless nail gun incl. rechargeables, incl. charger
Brand: HiKOKI
SKU: 3819425

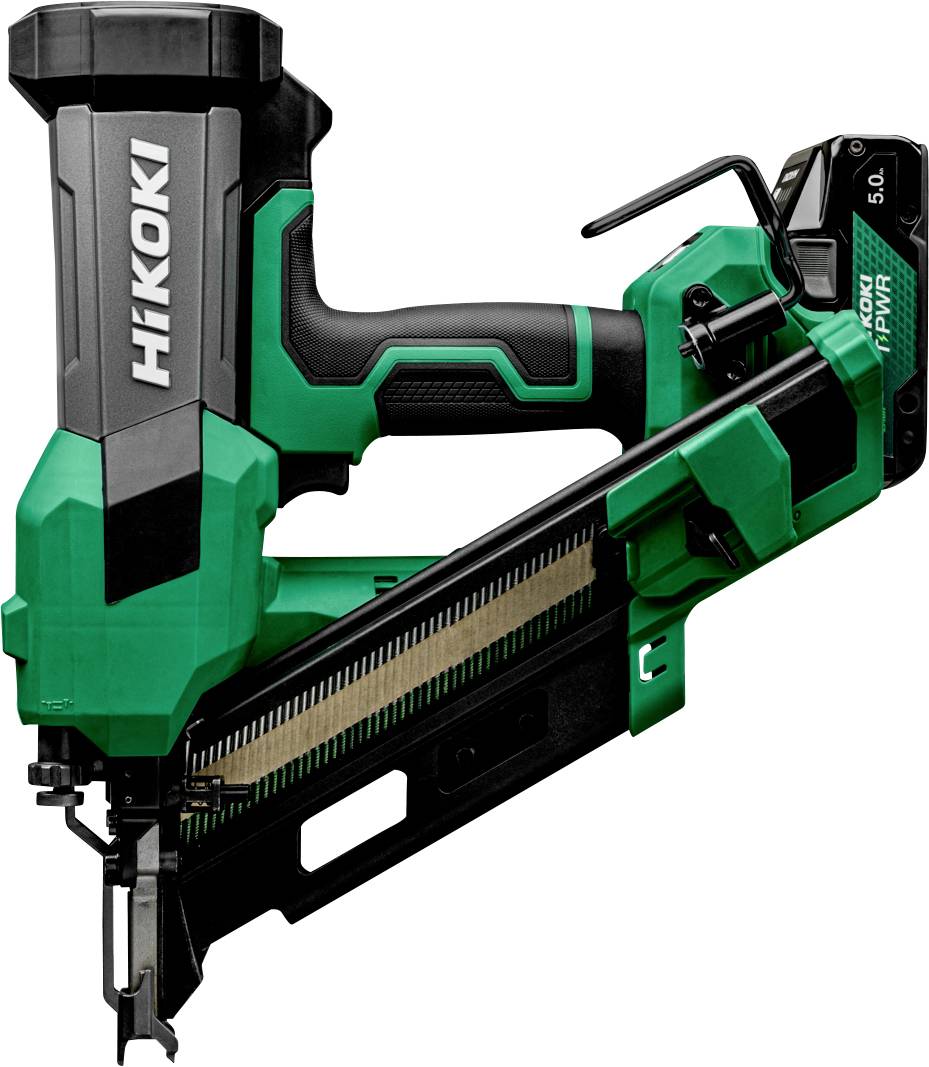

Green and black HiKOKI 5.0 cordless nail gun shown in side view on a white background.

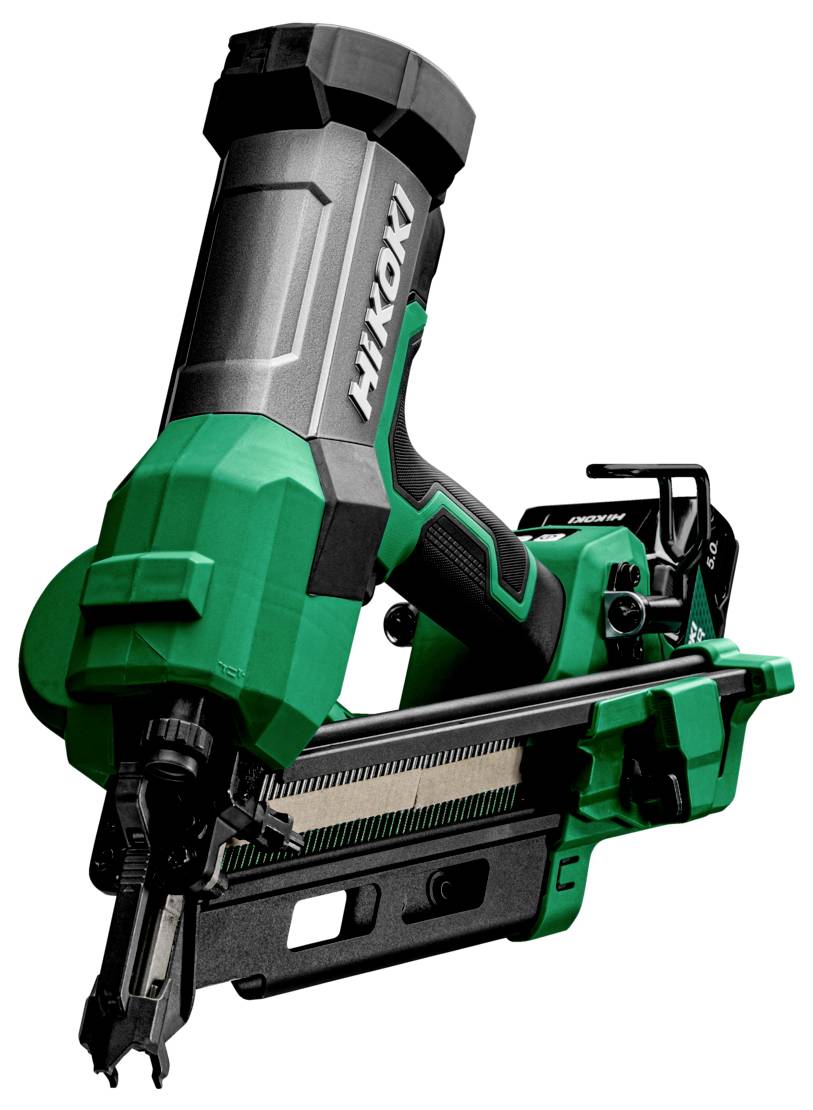

A green and black Hikoki pneumatic nail gun on a white background, shown in angled side view.

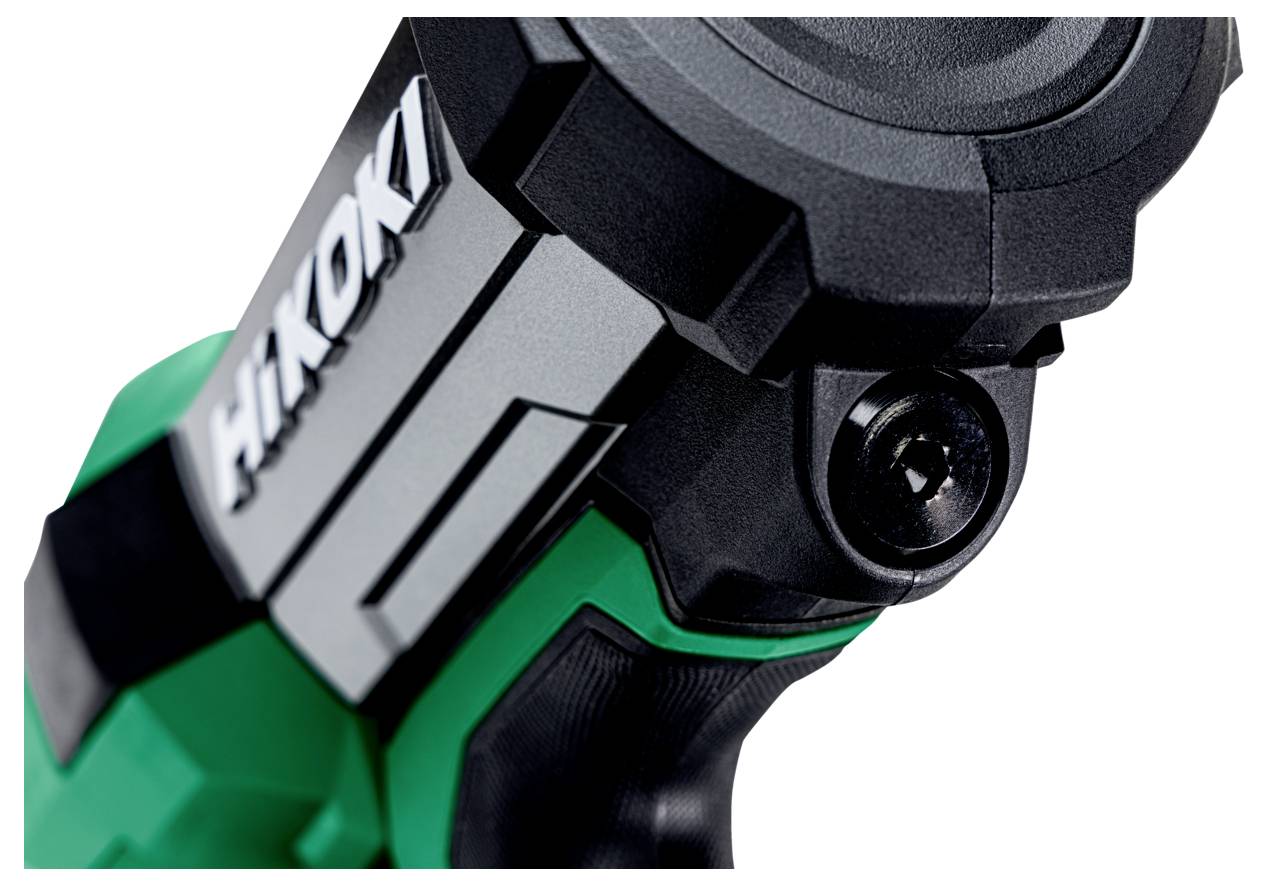

Close-up of a Hikoki power tool head in black and green on a white background.<br>

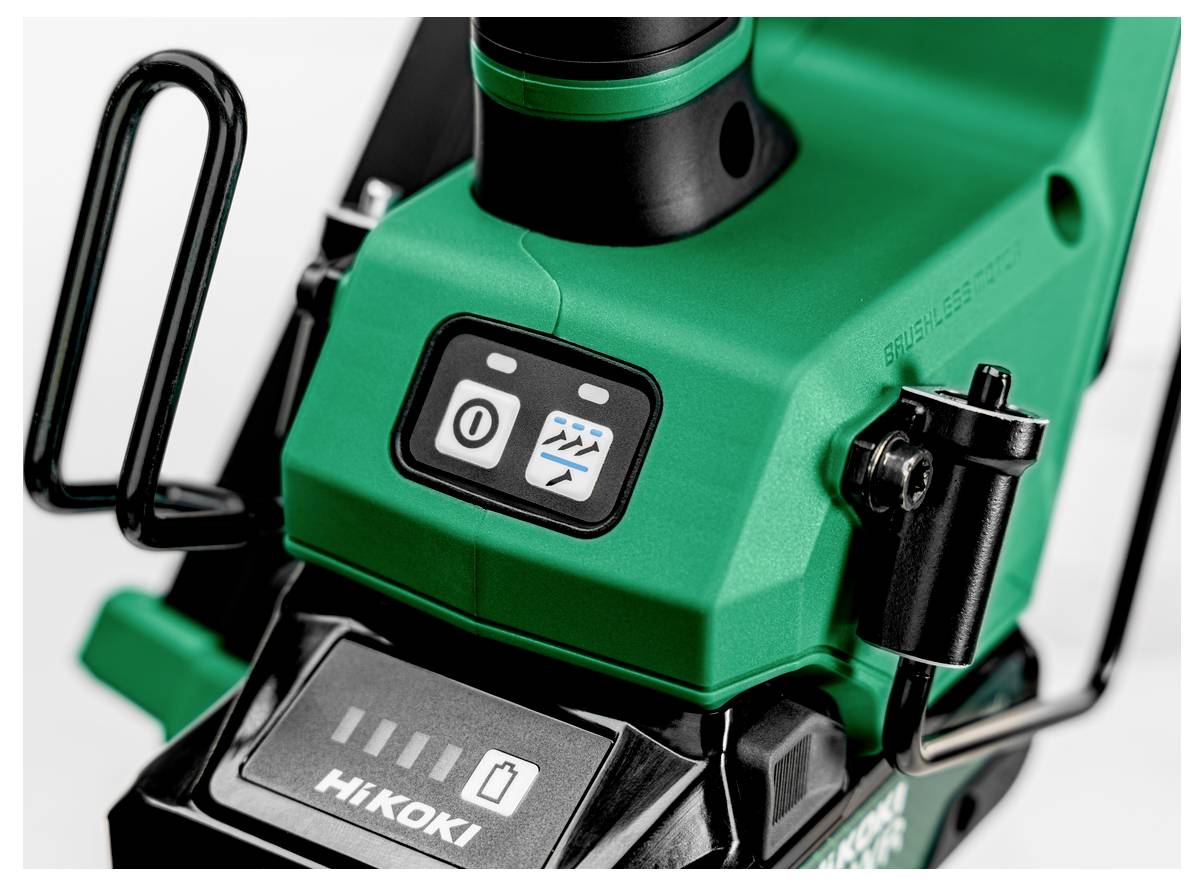

Close-up of a green and black HiKOKI power tool with battery indicator and control buttons, showing the handle and adjustment hardware.

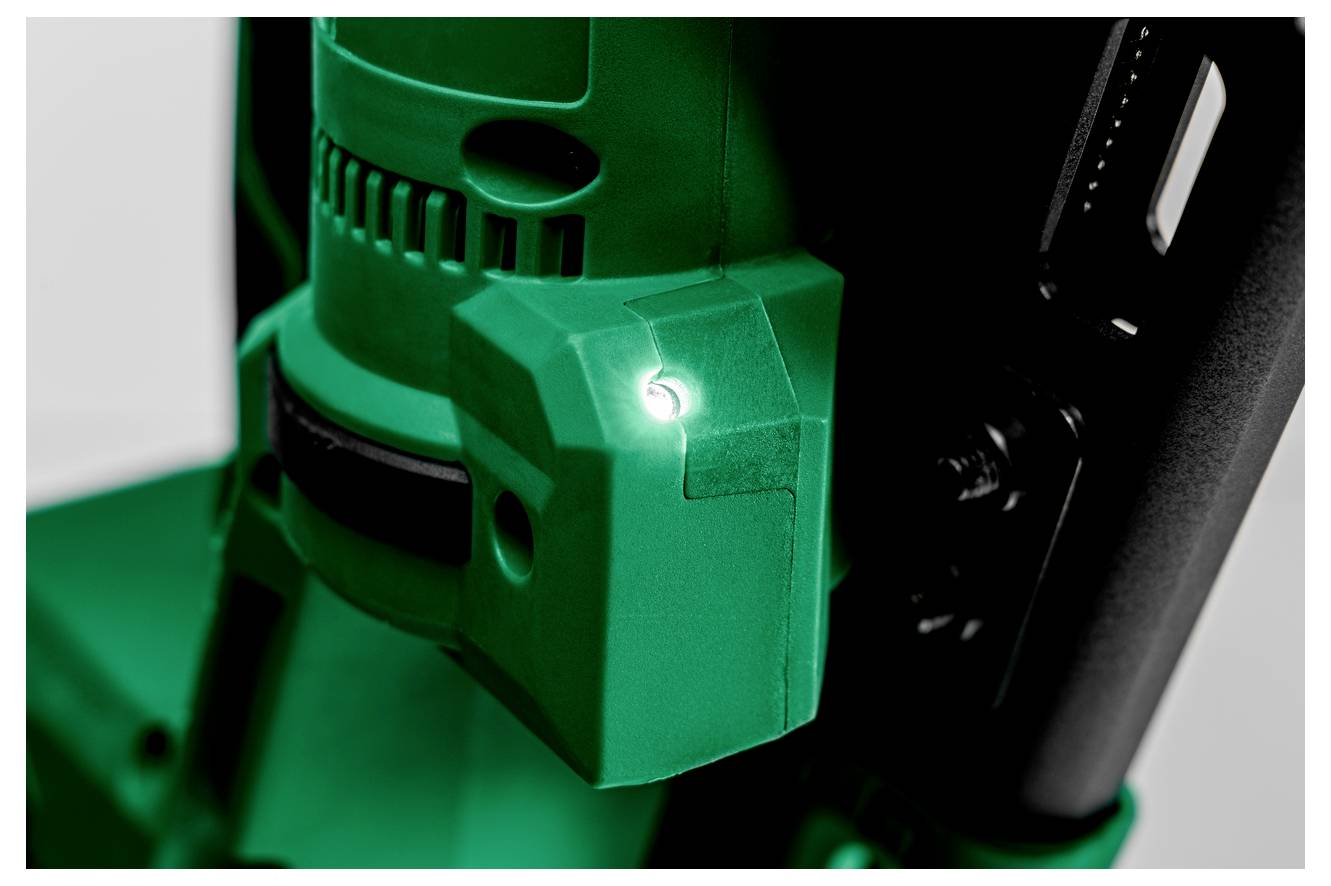

Close-up of a green device attachment with a lit circular indicator on a black machine, showing a status light or sensor module.

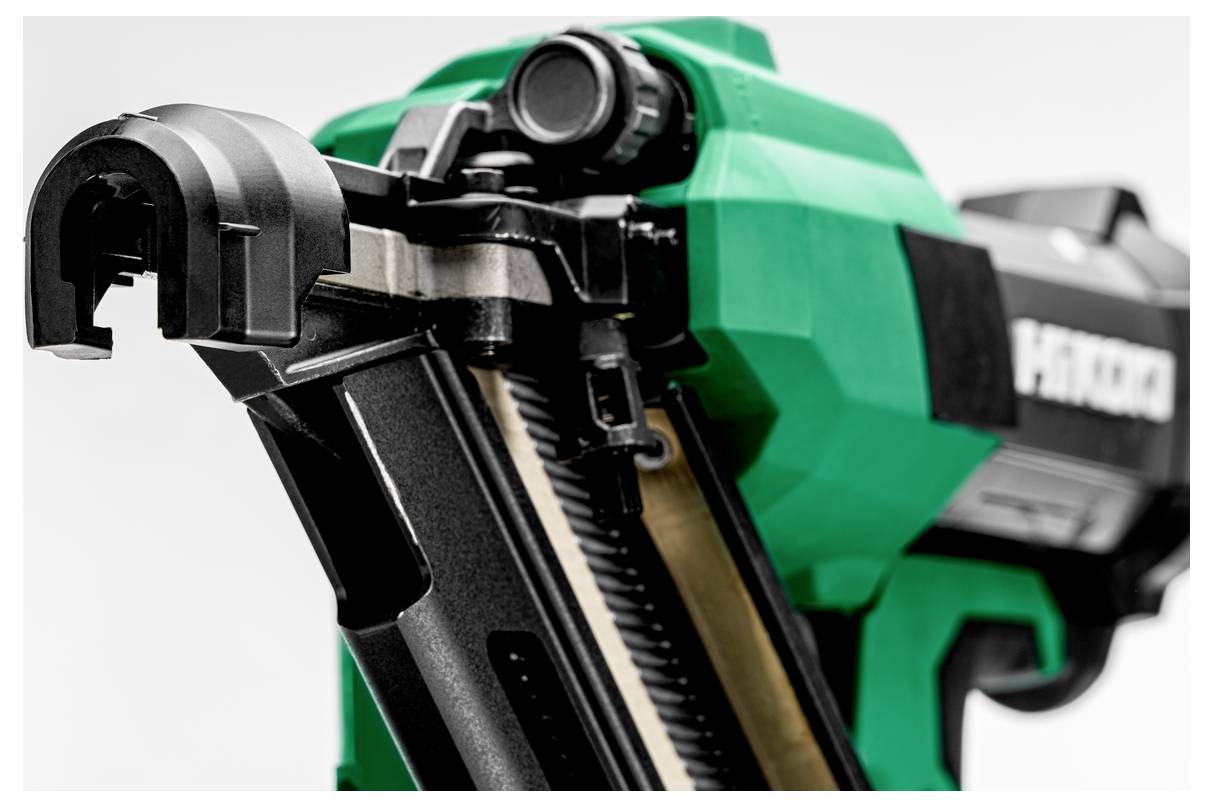

Close-up of a green and black Hitachi nail gun, showing the front tip and magazine on a white background.

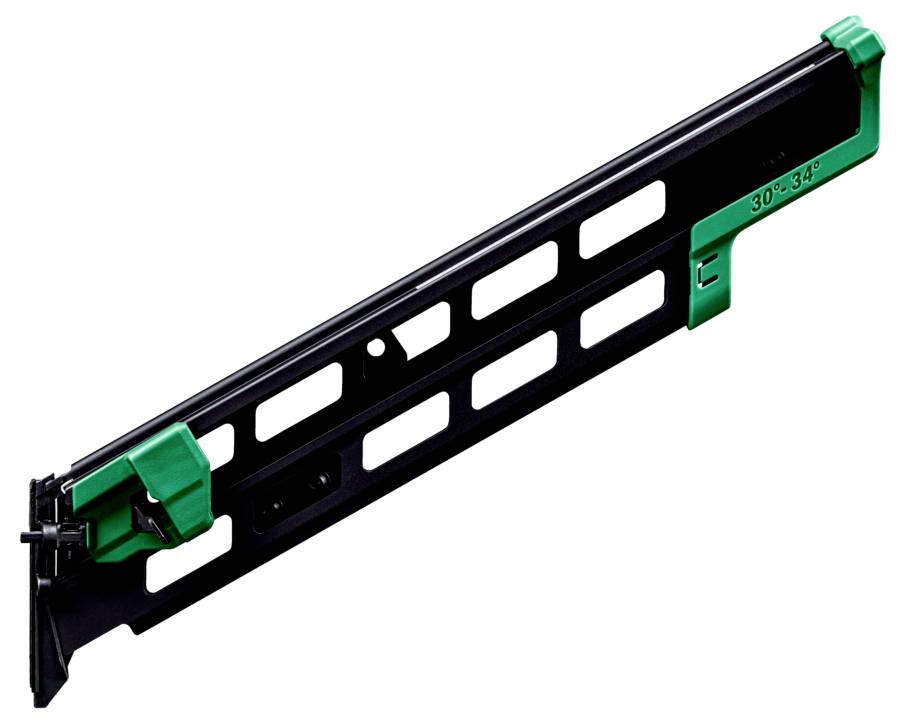

Black and green adjustable mounting bracket with elongated slots, marked '30°-34°', shown on a white background.

1/8

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Battery-operated armature ammeter NR1890DCBWPZ

The world's lightest 18 V brushless 90 mm strip nail gun (34°)
High speed for driving up to 4.5 nails per second
HiKOKI Air Spring Drive System +: Unique mechanism for highest shooting speed, compact design and maximum service life
Gaseous-free battery Power - no exhaust gases, no hoses, no compressors.
Powerful for effortless insertion of 90 mm ring nails in hard materials

Technical specifications

Vibration: 4.2 m/sec²
Vibration uncertainty K: 1.5 m/sec²
Emission, sound power: 105 dB
Emission, sound pressure level 92 dB
Emission uncertainty kPa: 3 dB
Nail placement angle 30°-34°
Bound nails, type: Paper-connected
Drive system: DC (air spring)
LED light: Yes
Depth setting: Yes
Dry shot ban: Yes
Brushless: Yes

Product type: Cordless nail gun

Features: incl. rechargeables
incl. charger

Technology: Li-ion

No. of power packs included: 1

Operating voltage: 18 V

Dim: (L x W) 324 mm x 139 mm

Length: 324 mm

Width: 139 mm

Weight: 3.3 kg

Battery voltage: 18 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3819425 HiKOKI NR1890DCBWPZ Cordless nail gun incl. rechargeables, incl. charger

Description

The HiKOKI battery-strip nail gun NR1890DCB 34° enables fast and efficient working with a try-in speed of up to 4.5 nails per second. The HiKOKI Air Spring Drive System+ ensures high shooting speed in a compact design and supports a smooth workflow. Thanks to wireless operation without hose, compressor or gas cartridge, the device offers more freedom of movement at the building site. Even 90 mm ring nails can be reliably imported into hard materials. The lightweight design with magnesium components makes it easy to work over long periods of time, while the magazine allows quick recharging and easy cleaning. For precise results, the release lug provides a secure grip during scrapping, and the dry-shot lock protects the workpiece and the device when the magazine is empty. An integrated LED light improves visibility in poor lighting conditions. Due to the compatibility with magazines for strip nails, anchor nails and duplex nails, this nail gun is suitable for various applications on the construction site.
