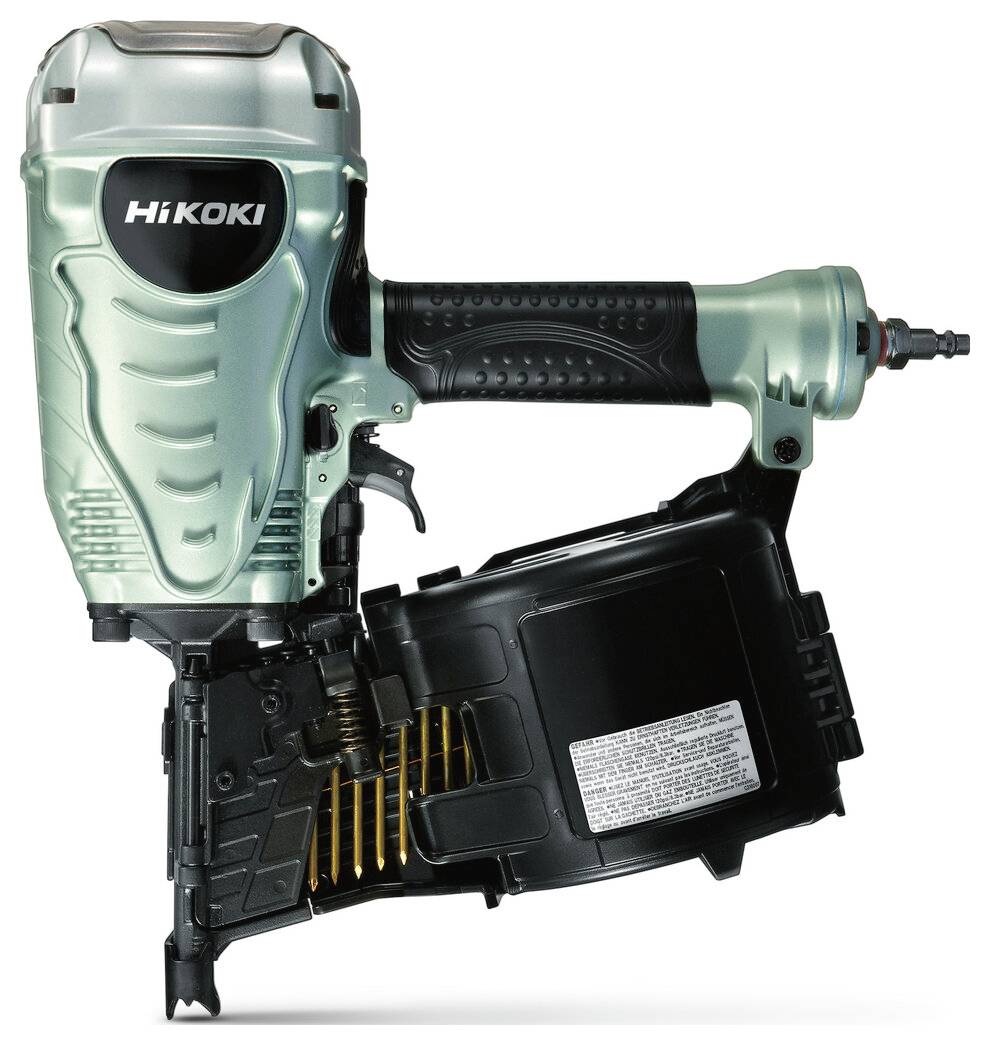

HiKOKI Pneumatic nail gun
EAN:
Part number:
Item no:
Highlights & Details
Pneumatic coil nail gun NV90AGL4Z
- Pneumatic 16°, 45-90 mm coil nail driver for wired nails up to a shaft diameter of 3.3 mm
- Comfortable operation thanks to the rack handle
- Simple, tool-free adjustment of the depth and direction of discharge
- The air outlet can be swiveled 360° and allows a precise control of the exhaust with just one press of a button
- Easy to load Pop-Out magazine on top
Technical specifications
- Feed speed: 3 /s
- Operating pressure 0.5 - 0.85 MPa
- Wired nails, length 45 - 90 mm
- Usable shaft diameter (wired nails): 2.5 x 3.3 mm
- Magazine capacity (wired coil nails): 200 - 300
- Tool length 336 mm
- Tool width 135 mm
- Tool height 332 mm
- Vibration: 3.8 m/sec²
- Vibration uncertainty K: 1.5 m/sec²
- Emission, sound pressure level 96 dB
- Emission, sound power 104 dB
- Emission uncertainty kPa: 2.5 dB
- Drive system: Normal pressure
- Depth setting: Yes
- Contact triggering mode: Yes
- Product type
Pneumatic nail gun
- Weight
3.5 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3808698 HiKOKI Pneumatic nail gun
Description
The HiKOKI NV90AGL4Z pneumatic coil nail is designed for 16° wired nails from 45 to 90 mm and shaft diameter up to 3.3 mm. The tool-free adjustment of the depth and direction of exhaust supports precise working in different applications. The air outlet can be swiveled by 360° and allows for a targeted exhaust air control, while the pop-out magazine simplifies the reloading. The safe change-over from single to contact trigger offers flexibility and control while nailing.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Eye Protection (Code 875769)
