HiKOKI SDS-Max-Hammer drill chisel 1150 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
HiKOKI SDS-Max-Hammer drill chisel 1150 W
- 1150 W
- Impact (max.) 10.1 J
- Max. drill bit Ø
Technical specifications
- Network frequency: 50~60 Hz
- Hammer stroke rate at full load 1430 - 2850 rpm
- Cable length 4 m
- Application: Chiselling under full load
- Vibration: 8 m/sec²
- Vibration uncertainty K: 1.5 m/sec²
- Emission, sound pressure level 90 dB
- Emission, sound power 98 dB
- Emission uncertainty kPa: 3 dB
- UVP (User Vibration Protection): Yes
- Switch lock: Yes
- Aluminium casing: Yes
- Anti-vibration handle: Yes
- Brushless: Yes
- Product type
Hammer drill chisel
1150 W
- Operating voltage
230 V
- Blow count (max.)
2850 /min
- Impact (max.)
10.1 J
- Tool holder
SDS-Max
- Weight
7.3 kg
- Length
480 mm
- Width
108 mm
- Height
237 mm
- Dim
(L x W x H) 480 x 108 x 237 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3808689 HiKOKI SDS-Max-Hammer drill chisel 1150 W
User & Safety Instructions
User & Safety Instructions 3808689 HiKOKI SDS-Max-Hammer drill chisel 1150 W
Description

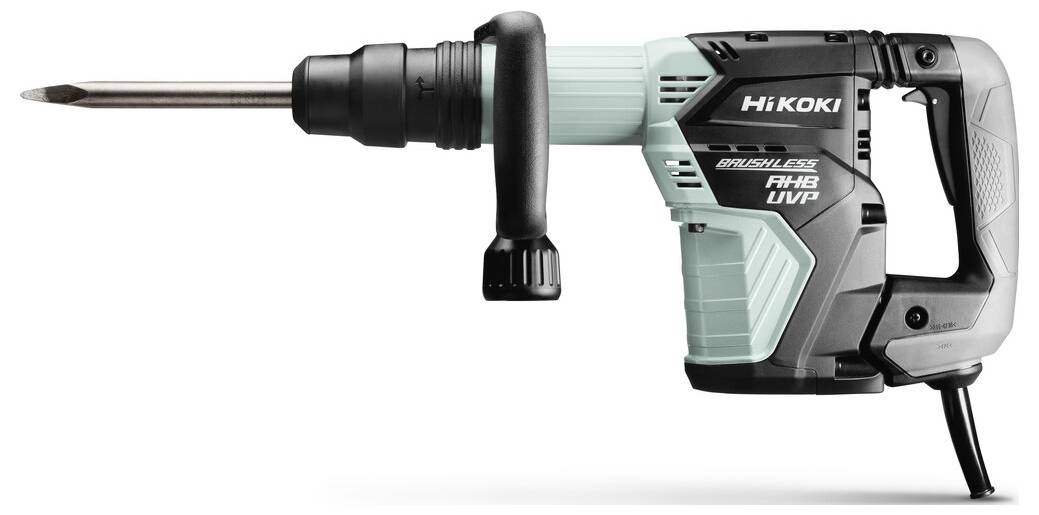

The HiKOKI chisel hammer SDS-Max H45MEY is designed for a number of different chisel tasks with brushless motor, 1,150 W and 12.2 J impact energy. The variable speed control adjusts the hammer frequency to the application, while the constant speed control supports the power under load. SDS-Max chisel can be changed in one step, WAS accelerates the workflow. Soft-touch handle, user vibration protection and low vibration handle provide control, grip and comfort when used.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Compressed air pointed chisel (SDS Max shaft)
- Extra handle
