Name: HiKOKI SDS-Plus-Cordless hammer drill 4 Ah, 8 Ah Lithium incl. spare battery, incl. charger
Brand: HiKOKI
SKU: 3814774

HIKOKI cordless rotary hammer drill kit with green carrying case, battery charger, and two batteries on a white background

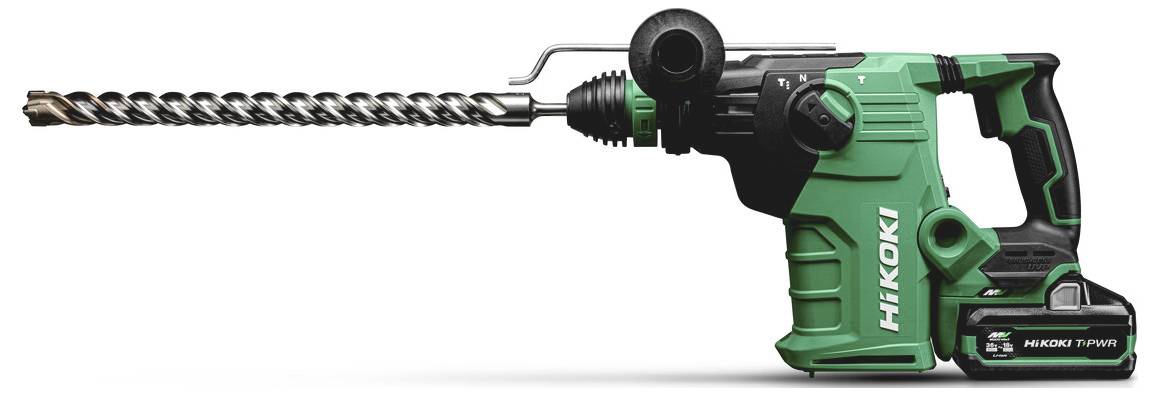

Green cordless rotary hammer drill with long bit, shown in side view on a white background.

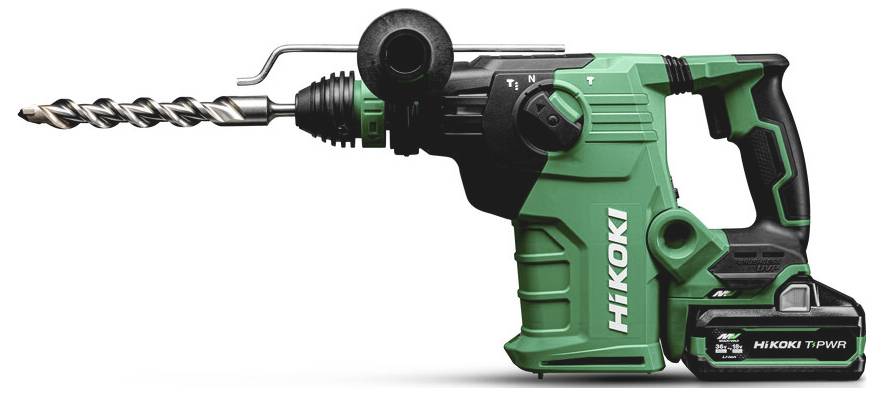

Green and black Hikoki cordless rotary hammer drill with side handle and drill bit, shown in side view on a white background.

Construction worker in a hard hat and safety vest drilling into a concrete wall with a green power drill outdoors.

Worker using a green power drill overhead to install or fasten material on a concrete ceiling in an unfinished interior.

A worker kneels while using a green power drill to bore into a concrete block wall indoors, wearing a mask, gloves, and safety glasses.

Worker using a green Hikoki power drill overhead on a metal surface, viewed from below.

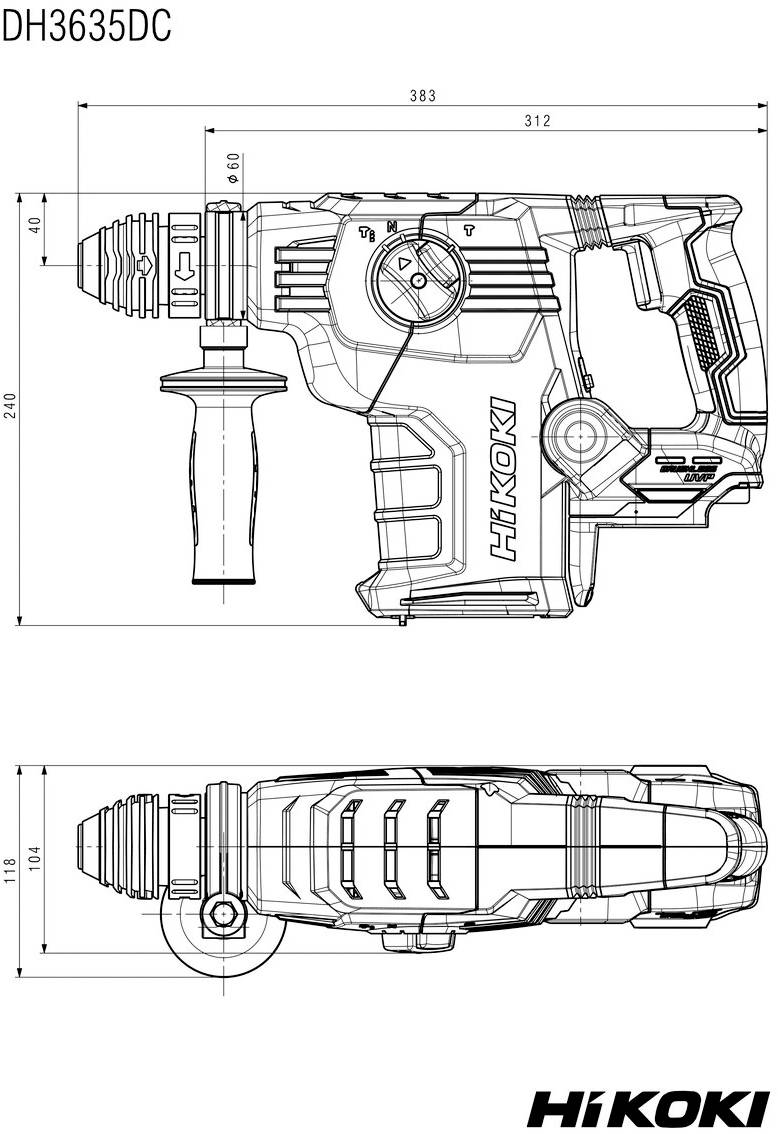

Technical line drawing of a HiKOKI rotary hammer drill, shown side and top views with labeled dimensions.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

HiKOKI SDS-Plus-Cordless hammer drill 4 Ah, 8 Ah Lithium incl. spare battery, incl. charger

Impact (max.) 4.2 J
Max. drill bit Ø 35 mm

Technical specifications

Concrete drilling diameter 3.4 - 35 mm
Drilling diameter of steel: 20 mm
Drilling diameter of wood 30 mm
Application: Drilling under full load in concrete
Vibration: 13.9 m/sec²
Vibration uncertainty K: 1.5 m/sec²
Application: Chiselling under full load
Vibration: 11 m/sec²
Vibration uncertainty K: 1.5 m/sec²
Emission, sound pressure level 93 dB
Emission, sound power 101 dB
Emission uncertainty kPa: 5 dB
UVP (User Vibration Protection): Yes
RFC (Reactive Force Control): Yes
Right/Left rotation: Yes
Slip clutch: Yes
Anti-vibration handle: Yes
LED Light: Yes
Brushless: Yes

Product type: Cordless hammer drill

Capacity (mAh, Ah): 4 Ah
8 Ah

Technology: Lithium

No. of power packs included: 2

Operating voltage: 36 V DC

Rotational speed range: 0-810 min

Impact (max.): 4.2 J

Max. drill diameter: 35 mm

Tool holder: SDS-Plus

Features: incl. spare battery
incl. charger

Weight: 4.4 kg

Weight, information: incl. rechargeable battery

Length: 383 mm

Width: 104 mm

Height: 240 mm

Dim: (L x W x H) 383 x 104 x 240 mm

Documents & Downloads

Datasheet

Datasheet 3814774 HiKOKI SDS-Plus-Cordless hammer drill 4 Ah, 8 Ah Lithium incl. spare battery, incl. charger

User & Safety Instructions

User & Safety Instructions 3814774 HiKOKI SDS-Plus-Cordless hammer drill 4 Ah, 8 Ah Lithium incl. spare battery, incl. charger

Description

· Hammer drill with 3 functions: Hammer drilling, drilling and chiseling
· Quick change between SDS Plus mounting and quick-action drill chuck (accessories) for extended use with cylindrical drills
· Brushless motor for high performance, less wear and longer life
· Doubly safe when locking the drill: No kick-back thanks to mechanical decoupling plus sensor-controlled cut-off (Reactive Force Control RFC)
· User Vibration Protection (UVP) to minimize vibrations - for the highest user comfort
· Reduction of speed and impact energy possible for drilling and for working in soft materials
· Integrated LED for a clear view of the work surface
· Switchable to left run for easy loosening of canned drill
· Ergonomic soft-touch handle for optimal control and Hohem usage comfort
· Power by MULTI VOLT, the intelligent battery system for 18 V and 36 V electrical tools: Best performance, maximum freedom

This text is machine translated.
