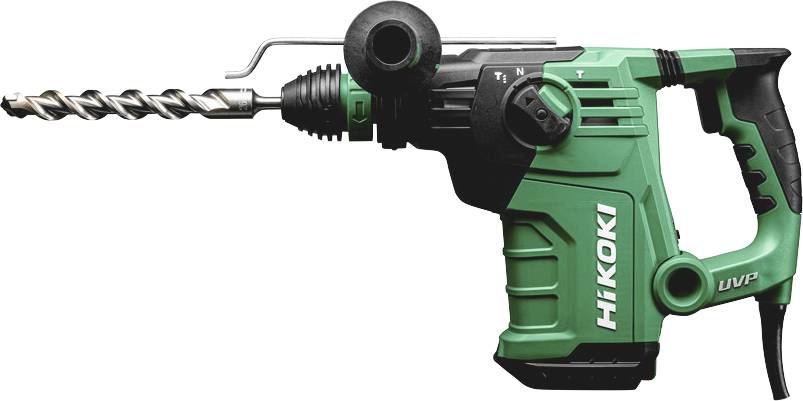

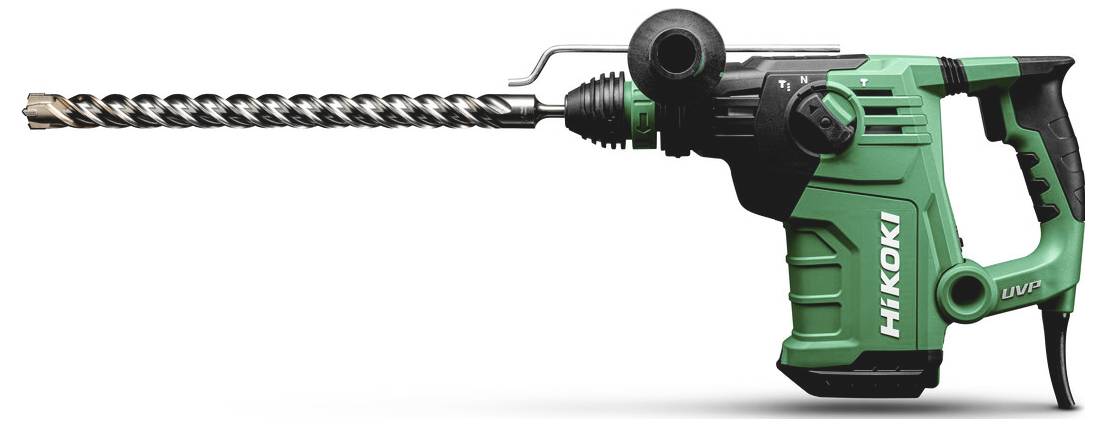

HiKOKI SDS-Plus-Hammer drill 1050 W

1050 W
Impact (max.) 4.2 J
Max. drill bit Ø 35 mm

Technical specifications

Mains frequency 50 Hz
Hammer stroke rate at full load 0 - 4350 rpm
Concrete drilling diameter 3.4 - 35 mm
Drilling diameter of steel: 20 mm
Drilling diameter of wood 30 mm
Cable length 3.9 m
Application: Drilling under full load in concrete
Vibration: 17.2 m/sec²
Vibration uncertainty K: 1.5 m/sec²
Application: Chiselling under full load
Vibration: 12.8 m/sec²
Vibration uncertainty K: 1.5 m/sec²
Emission, sound pressure level 93 dB
Emission, sound power 101 dB
Emission uncertainty kPa: 3 dB
UVP (User Vibration Protection): Yes
RFC (Reactive Force Control): Yes
Right/Left rotation: Yes
Slip clutch: Yes
Anti-vibration handle: Yes
LED Light: Yes

Product type: Hammer drill

: 1050 W

Operating voltage: 230 V

Rotational speed range: 0-810 min

Impact (max.): 4.2 J

Max. drill diameter: 35 mm

Tool holder: SDS-Plus

Weight: 5 kg

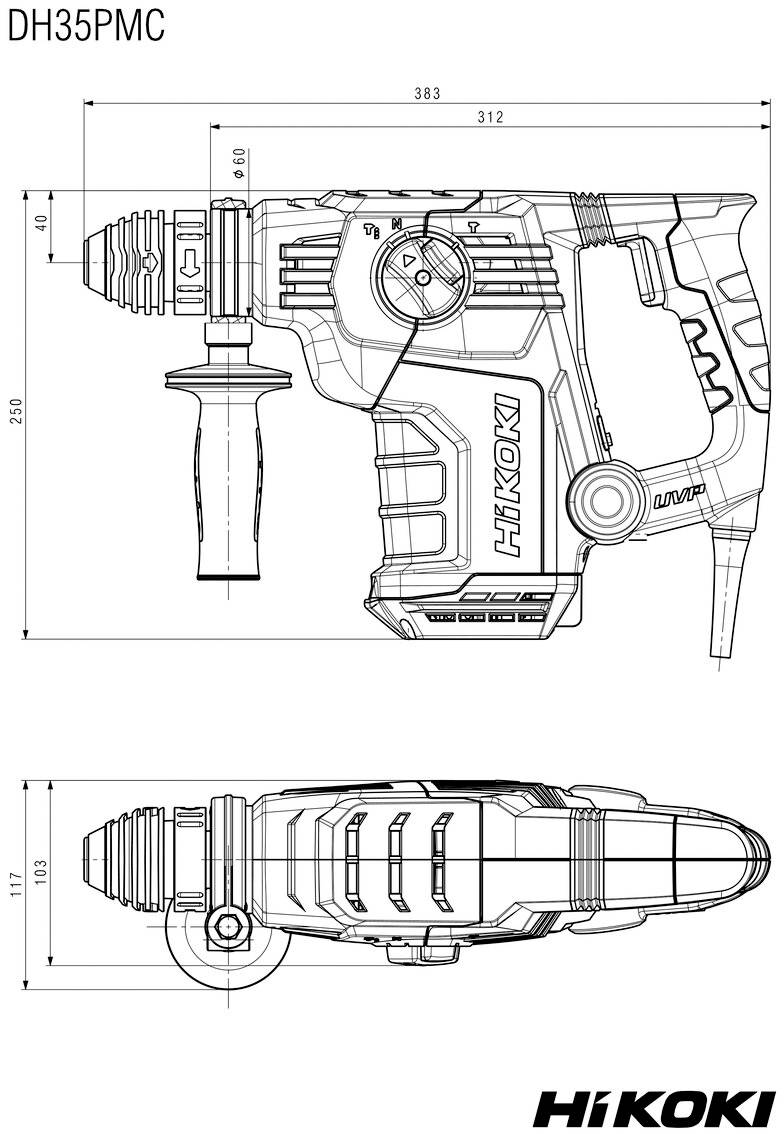

Length: 383 mm

Width: 103 mm

Height: 250 mm

Dim: (L x W x H) 383 x 103 x 250 mm

Documents & Downloads

Datasheet

Datasheet 3814775 HiKOKI SDS-Plus-Hammer drill 1050 W

User & Safety Instructions

User & Safety Instructions 3814775 HiKOKI SDS-Plus-Hammer drill 1050 W

Description

· Hammer drill with 3 functions: Hammer drilling, drilling and chiseling
· Quick change between SDS Plus mounting and quick-action drill chuck (accessories) for extended use with cylindrical drills
· Doubly safe when locking the drill: No kick-back thanks to mechanical decoupling plus sensor-controlled cut-off (Reactive Force Control RFC)
· User Vibration Protection (UVP) to minimize vibrations - for the highest user comfort
· Reduction of speed and impact energy possible for drilling and for working in soft materials
· Integrated LED for a clear view of the work surface

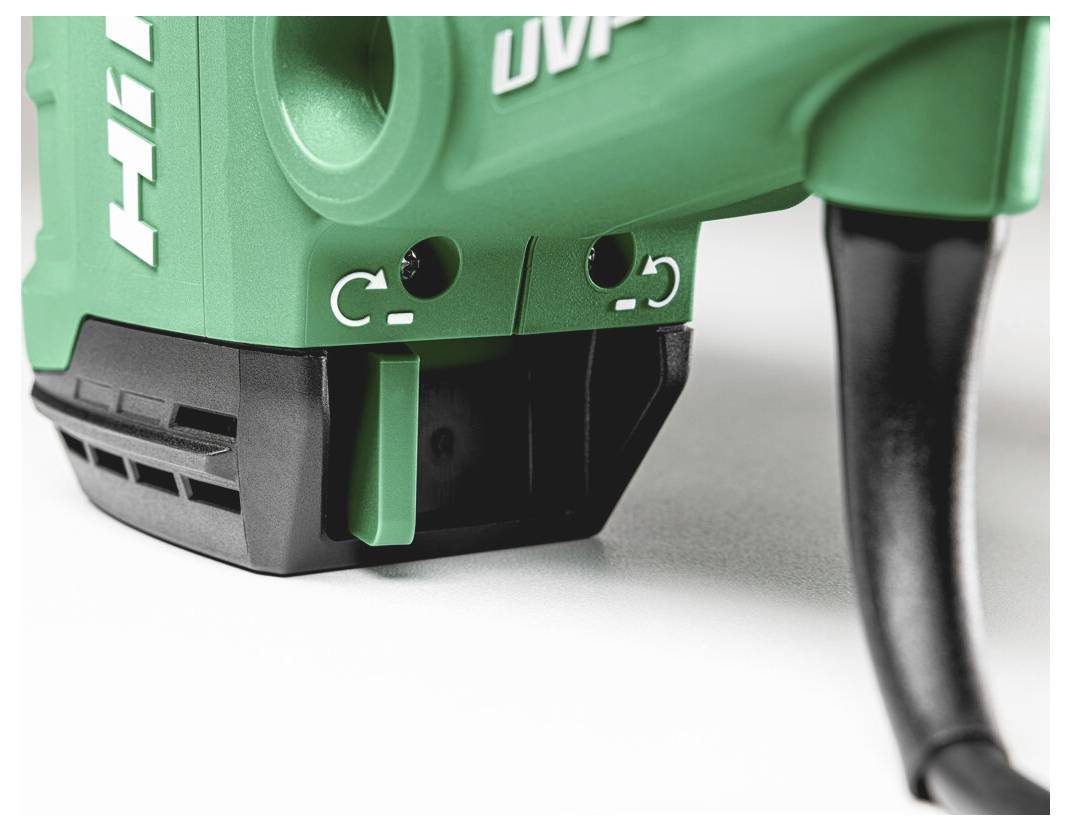

· Switchable to left run for easy loosening of canned drill
· Ergonomic soft-touch handle for optimal control and Hohem usage comfort
