HiKOKI SDS-Plus-Hammer drill 720 W
EAN:
Part number:
Item no:
Highlights & Details
HiKOKI SDS-Plus-Hammer drill 720 W
- 720 W
- Impact (max.) 3.2 J
- Max. drill bit Ø 32 mm
Technical specifications
- Network frequency: 50~60 Hz
- Hammer stroke rate at full load 0 - 400 rpm
- Concrete drilling diameter 4 - 28 mm
- Drilling diameter of steel: 13 mm
- Drilling diameter of wood 32 mm
- Cable length 4 m
- Application: Drilling under full load in concrete
- Vibration: 7.2 m/sec²
- Vibration uncertainty K: 5 m/sec²
- Application: Chiselling under full load
- Vibration: 4.6 m/sec²
- Vibration uncertainty K: 2.2 m/sec²
- Emission, sound pressure level 94 dB
- Emission, sound power 102 dB
- Emission uncertainty kPa: 3 dB
- Right/Left rotation: Yes
- Slip clutch: Yes
- Switch lock: Yes
- Product type
Hammer drill
720 W
- Operating voltage
230 V
- Rotational speed range
0 - 4000/m
- Blow count (max.)
4300 /min
- Impact (max.)
3.2 J
- Max. drill diameter
32 mm
- Tool holder
SDS-Plus
- Functions
Stepless speed control
- Weight
3.9 kg
- Length
316 mm
- Width
102 mm
- Height
208 mm
- Dim
(L x W x H) 316 x 102 x 208 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3808676 HiKOKI SDS-Plus-Hammer drill 720 W
Description

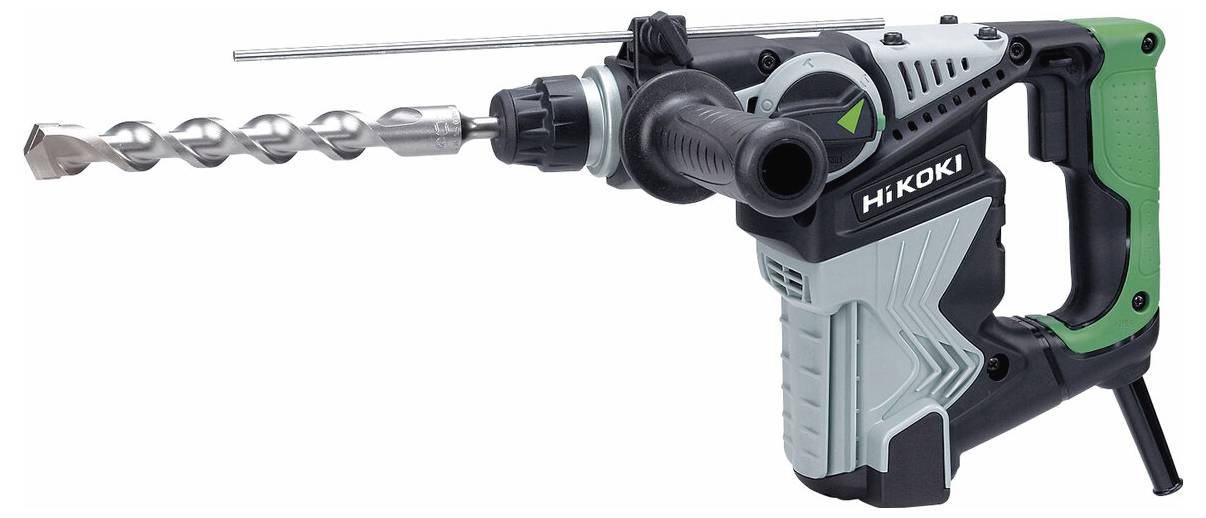

The HiKOKI hammer drill SDS Plus DH28PC is a hammer drill and chisel with 720 W for concrete drill holes up to 28 mm. With 3.2 J impact energy and three operating modes, it is suitable for drilling, hammer drilling and chiseling. The soft-touch handle improves control and usage comfort, while the one-push-bit mounting system enables quick changeover of SDS-plus drills and chisels. The mechanism for avoiding neutral position, the right/left-handed rotation switch and the safety slip clutch support safe and precise working.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Extra handle
- Depth gauge
