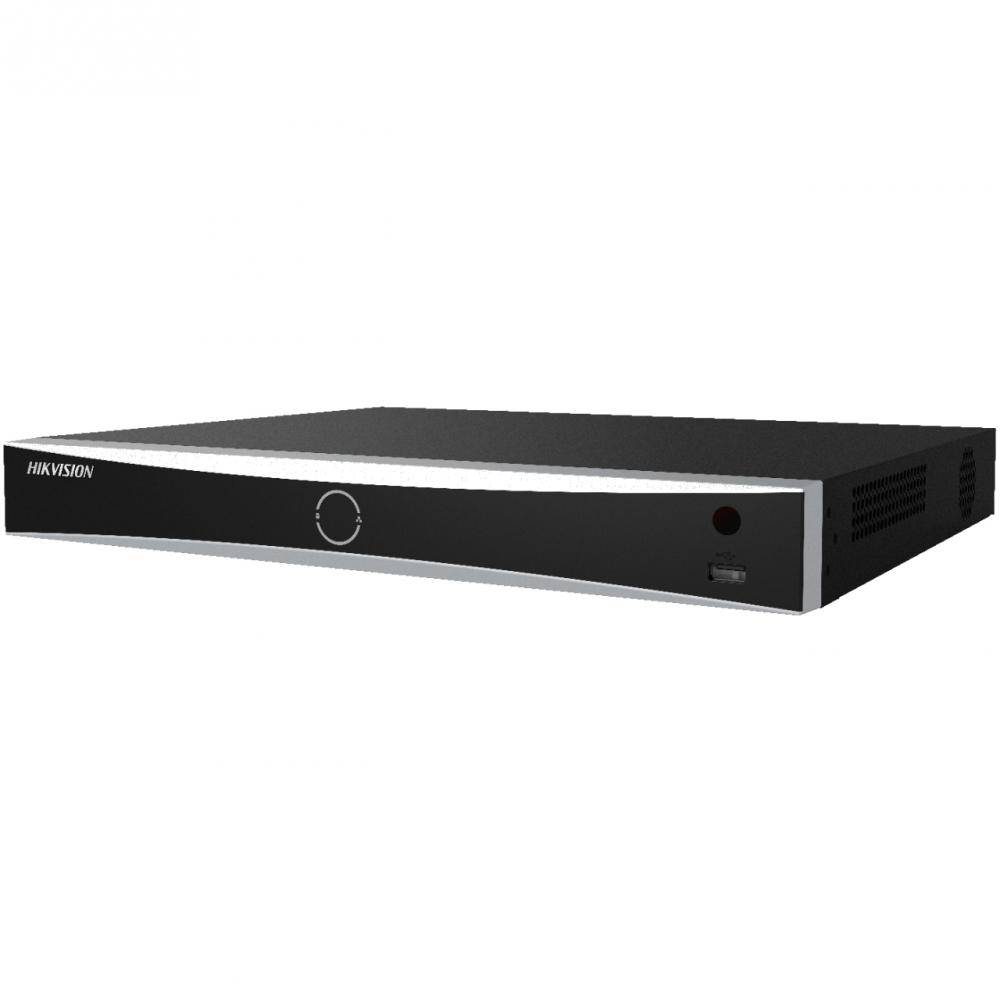

HIKVISION DS-7608NXI-K2/8P AcuSense NVR 8-channel Network video recorder
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 444.54 / piece)
€ 444.54
plus VAT.
14-day return policy included
Hikvision 8-channel network recorder with PoE (2 x HDD)
Highlights & Details
- Up to 8 channel IP camera inputsPlug & Play with 8 Power-over-Ethernet (PoE) interfacesH.265+/H.265/H.264+/H.264 VIDEO FORMATSUp to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacityUp to 80 Mbps of incoming bandwidth
Technical specifications
- SATA 2 x SATA interfaceCapacity: Up to 10 TB capacity for each hard driveUSB-interface: Front plate: 1x USB 2.0, rear side: 1 x USB 2.0HDMI output 1 ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 HzVGA output 1-CH, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- Product type
Network video recorder
- Signal standard
IP
- Channels
8
- Outputs
HDMI
VGA
- PoE
IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)
- Width
385 mm
- Height
52 mm
- Depth
315 mm
- Weight
3 kg

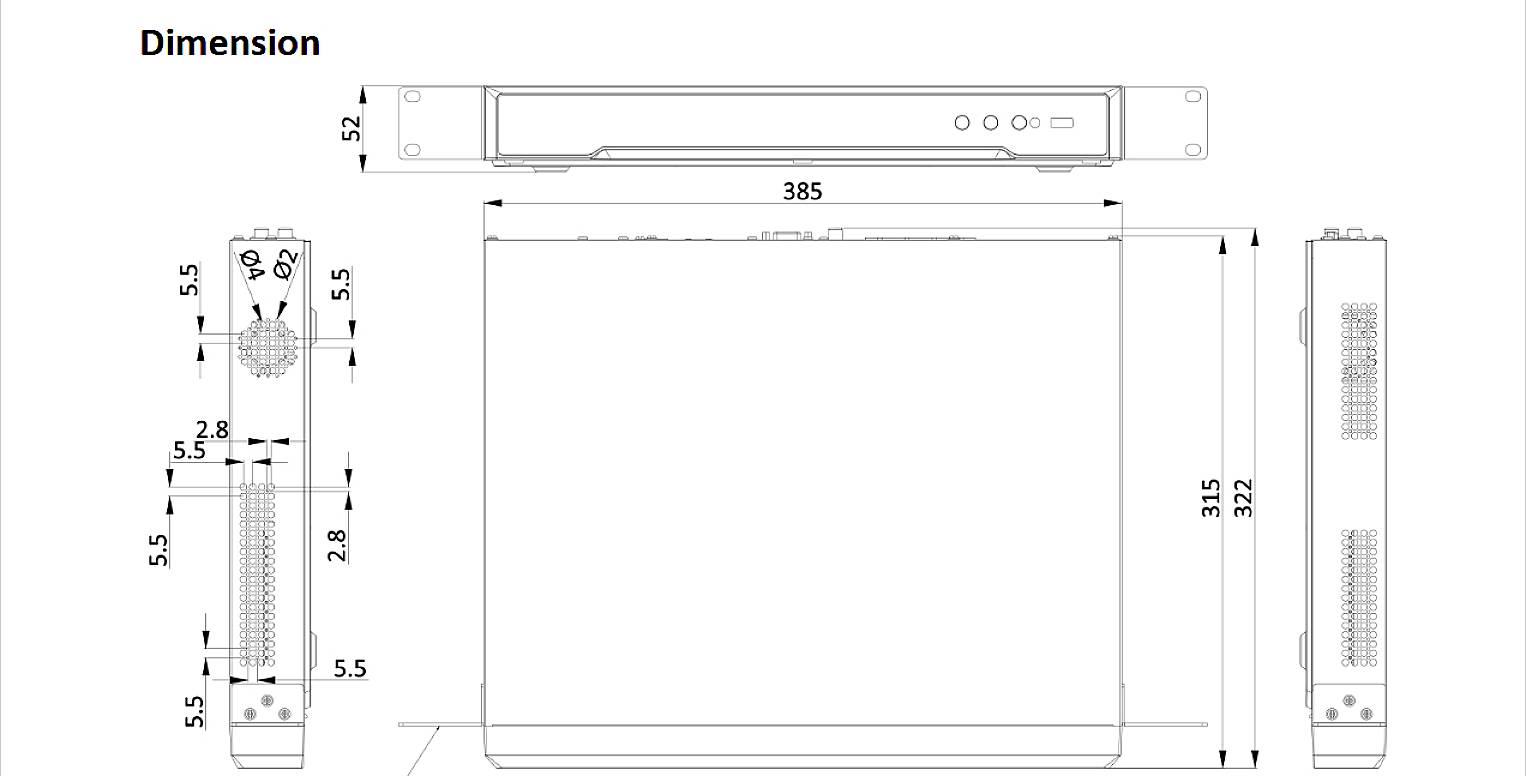

- Dim
(W x H x D) 385 x 52 x 315 mm
- Resolution (max.)
3840 x 2160 p
- Built-in memory
none
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2730695 HIKVISION DS-7608NXI-K2/8P AcuSense NVR 8-channel Network video recorder
User & Safety Instructions
User & Safety Instructions 2730695 HIKVISION DS-7608NXI-K2/8P AcuSense NVR 8-channel Network video recorder
Description
Intelligent functionAll channels support Motion Detection 2.01-channel face recognition for video stream or 4-channel face recognition for face picturesSmart search for the selected area in the video and intelligent playback to improve playback efficiencyProfessional and reliableH.265+ compression effectively reduces memory space by up to 75%Stream-over-TLS encryption technology that provides a more secure stream transmission serviceHD video outputOffers independent HDMI and VGA-outputsHDMI video output with up to 4K resolutionStorage and playbackUp to 2 SATA interfaces for connecting hard drives (up to 10 TB capacity per HDD)Synchronous 8-channel playbackNetwork & Ethernet access8 independent PoE network interfaces1 self-fitting 10/100/1000 Mbps Ethernet interfaceHik-Connect for easy network management.
This text is machine translated.
This text is machine translated.
Features
- 4K-HDMI outputUp to 8 MP resolutionFace detectionUse Hikvision Acusense technology to minimize manual effort and security costs.
Scope of delivery
- Power supply unit
- Mouse
- Cable for HDD
- Screws for HDD
- Quick guide
- Network cable
Hints
No hard disk included!
System requirements
- Windows, iOS, Android
