Hirose Electronic Hirose Electronic N/A H7641.6-50 Plug, straight Red 50 pc(s) H7641.6-50 Plug, straight Red 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Hirose Electronic N/A H7641.6-50 Plug, straight Red 50 pc(s)
- RJ-45 straight plug
- Red
- Cat6 S/UTP (STP)
- 50 pieces(s)
Technical specifications
- Factory colour
Red
- Type A
RJ45 8p8c plug
- Type B
RJ45 8p8c plug
- Connector standard
RJ45
- Connection
Crimp
- Material
Plastic
Metal
CAT 6
- AWG max.
24
- AWG (min.)
27
- Cross section (flexible) (max.)
0.205 mm²
- Cross section (flexible) (min.)
0.09 mm²
- Cross section (inflexible) (max.)
0.205 mm²
- Cross section (inflexible) (min.)
0.09 mm²
- Connector type
Plug, straight
- No. of rows
1
- Contact material
Brass
- Max. temperature
85 °C
- Min. temperature
-55 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3845844 Hirose Electronic Hirose Electronic N/A H7641.6-50 Plug, straight Red 50 pc(s) H7641.6-50 Plug, straight Red 50 pc(s)
Description
Channel class E up to 250 MHz (CAT.6) for wires
Shielded version
Wire insulation approx. 0.9 - 1.0 mm
For cable diameter up to 6.6 mm

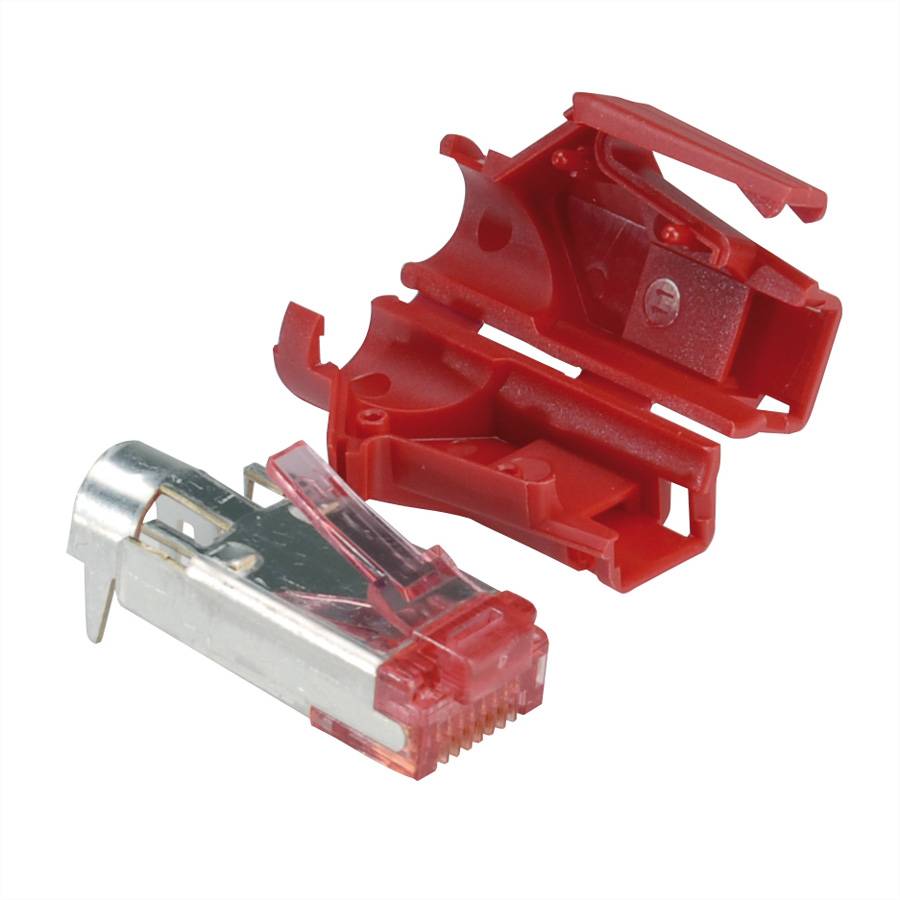

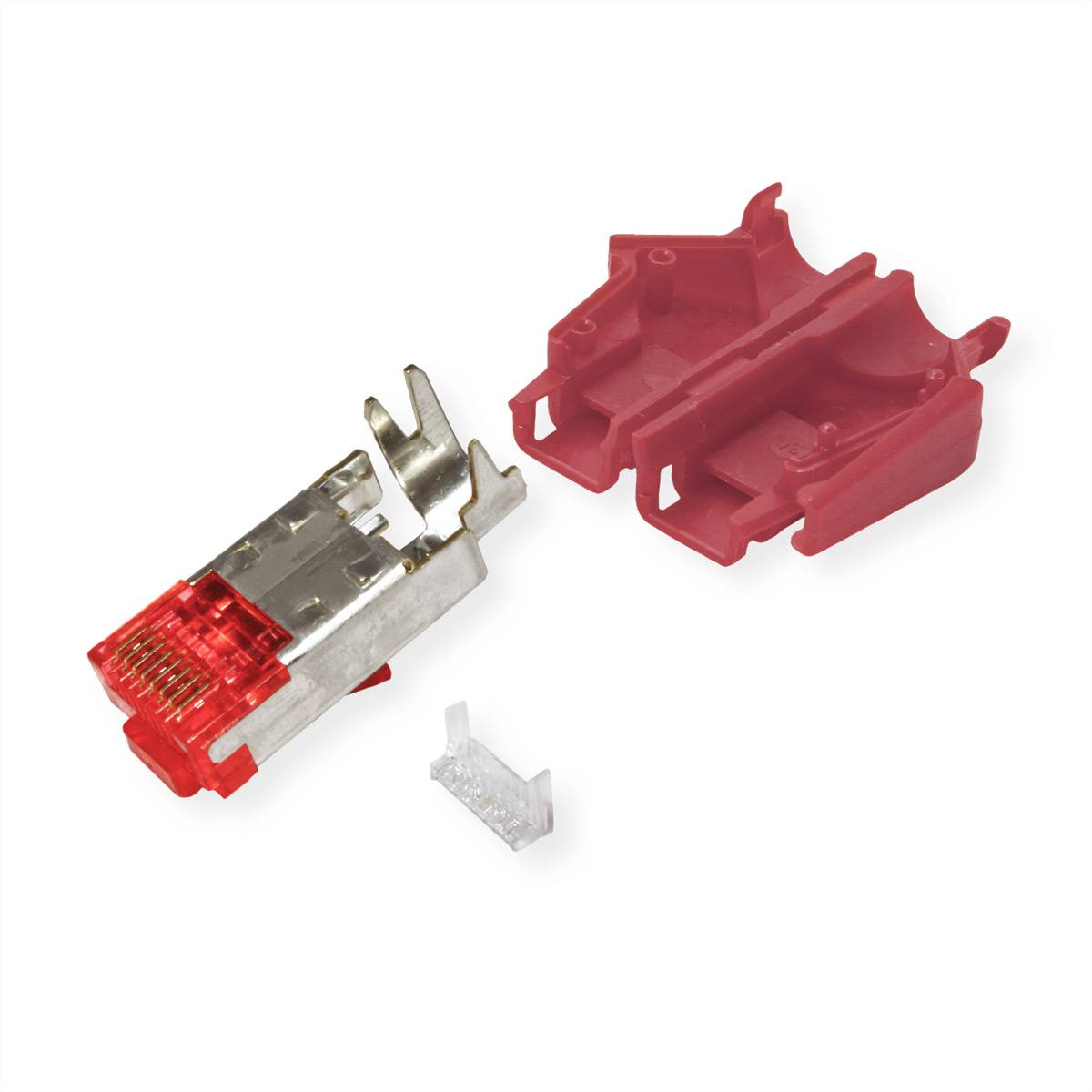

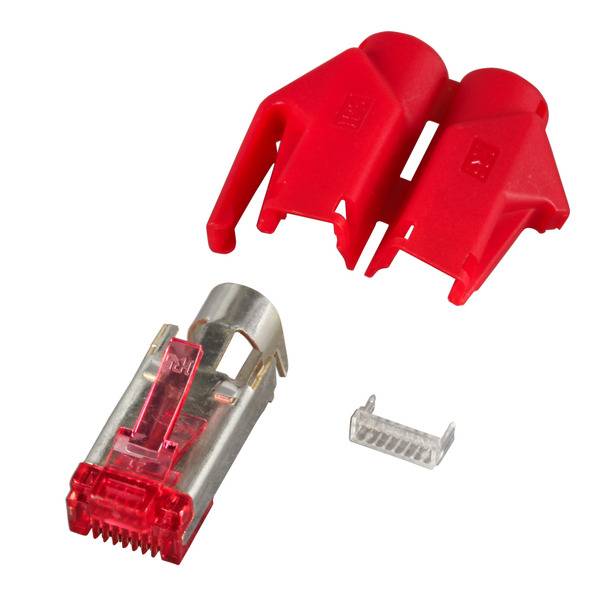

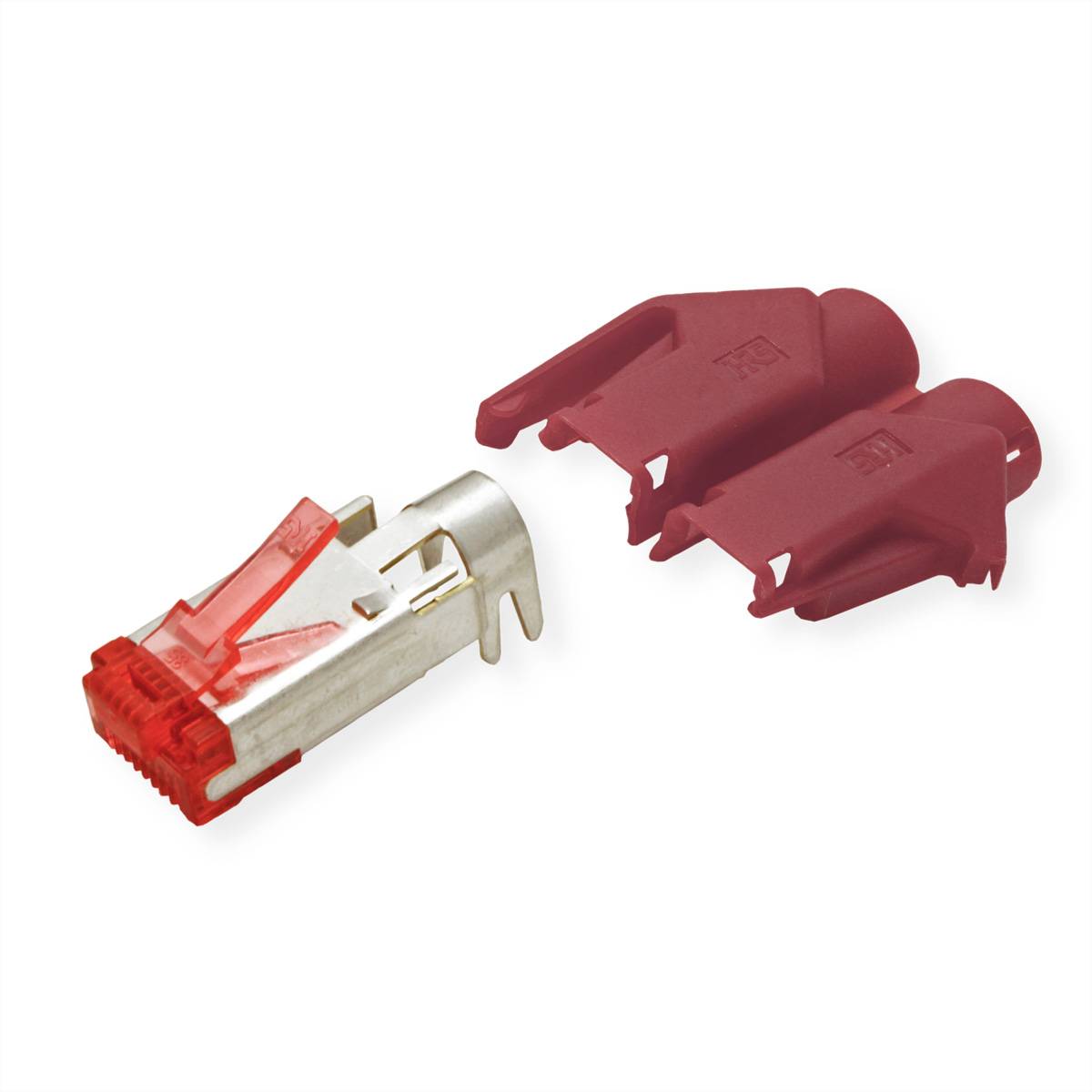

The set consists of RJ connectors, kink protection bushing and guide plate
Suitable crimping tool DCW1002 + DCW1002.1 or 39934.2
This text is machine translated.
Shielded version
Wire insulation approx. 0.9 - 1.0 mm
For cable diameter up to 6.6 mm
The set consists of RJ connectors, kink protection bushing and guide plate
Suitable crimping tool DCW1002 + DCW1002.1 or 39934.2
This text is machine translated.
Scope of delivery
- Hirose TM21 shielded plug, 50 red sleeve
