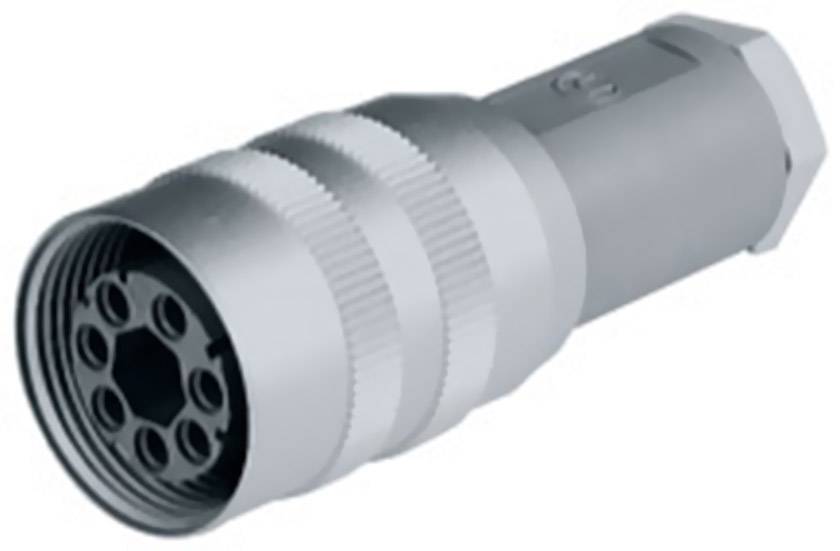

Hirschmann 931 720-001-100 Bullet connector Wire connector Total number of pins: 6 + PE 100 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Wire connector
Total no. of pins
6 + PE
Connection
Crimp
Content
100 pc(s)
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 18.45 / piece)
€ 1,844.54
plus VAT.
14-day return policy included
Technical specifications
- Connection cross-section up to 1.5 mm² (6-pin)
- 0.5 mm² 11-pin
- Angled contact box
- IP 65 (DIN 40050)
- Type
N6R EF
- Product type
Bullet connector
- Connector type
Wire connector
- Total no. of pins
6 + PE
- Connection
Crimp
- Content
100 pc(s)
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Leading contact (PE)
Yes
- Nominal voltage
250 V
- Cable Ø (max.)
9 mm
- Cable Ø up to
7 mm
- Connection angle
180°
- Manufacturer part #
931 720-001-100
- Industrial packaging
Yes
- Cable Ø range
7 - 9 mm
- Number of pins
6
- max. cross section
1.5 mm²
- Cross-section range
1.5 mm² (max)
- Connection
Crimp
- Temperature range
-40 - +90 °C
Documents & Downloads
Datasheet
Datasheet 1718489 Hirschmann 931 720-001-100 Bullet connector Wire connector Total number of pins: 6 + PE 100 pc(s)
Description
Multipin round connector to DDIN 43651 standard. Robust construction. Vibration-resistant connection ensured by centre screw or screw socket. Cable grip inserted in the PG thread connection.
