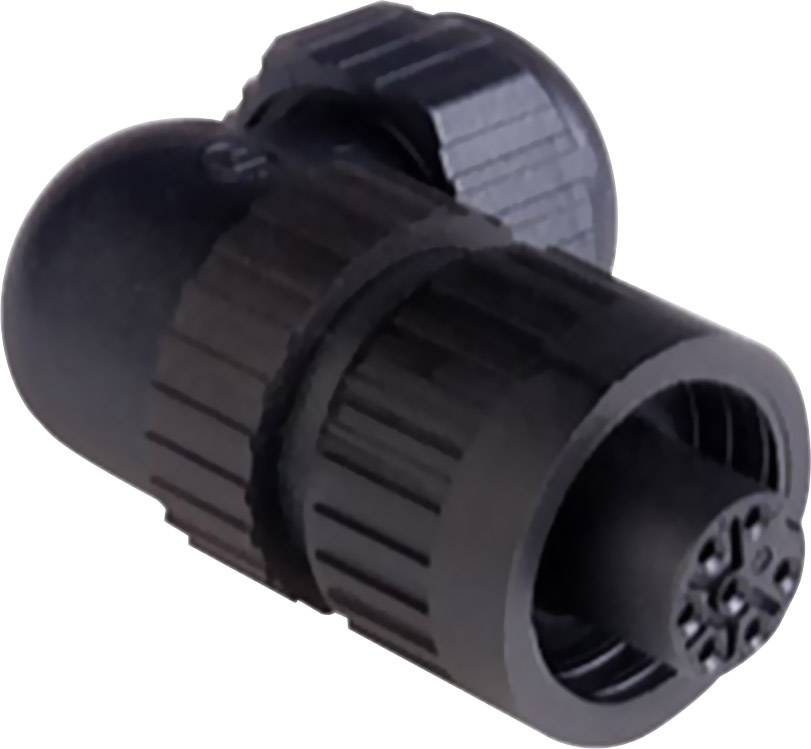

Hirschmann 934 131-100-100 Bullet connector Connector, right angle Total number of pins: 6 + PE Series (round connectors
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Connector, right angle
Total no. of pins
6 + PE
Connection
Soldering
Content
100 pc(s)
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 10.92 / piece)
€ 1,091.60
plus VAT.
14-day return policy included
Highlights & Details
CA Series mains voltage connector
Technical specifications
- Contact surface CU Zn
- Type
CA 6 W LD
- Product type
Bullet connector
- Connector type
Connector, right angle
- Total no. of pins
6 + PE
- Connection
Soldering
- Factory colour
Black
- Content
100 pc(s)
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Seal
Screw cap
- Leading contact (PE)
Yes
- Nominal voltage
250 V
- Contact material
Ag
- Cable Ø (max.)
12 mm
- Cable Ø up to
6 mm
- Connection angle
180°
- Manufacturer part #
934 131-100-100
- Industrial packaging
Yes
- Cable Ø range
6 - 12 mm
- Certification marks
UL, VDE
- Number of pins
6
- max. cross section
0.75 mm²
- Cross-section range
0.75 mm² (max)
IP67
- Series
CA
- Contamination level
3
- Pins
4 (3 + PE)
- Connection
Screws
- Cable diameter
6 mm - 12 mm
- Temperature range
-40 - +90 °C
Documents & Downloads
Datasheet
Datasheet 1718544 Hirschmann 934 131-100-100 Bullet connector Connector, right angle Total number of pins: 6 + PE Series (round connectors
Description
Robust, universal connector for general use in engineering, control circuits, medical electrical equipment, and in the chemicals industry. International approvals for world-wide employment VDE, UR, SEV, CSA.
