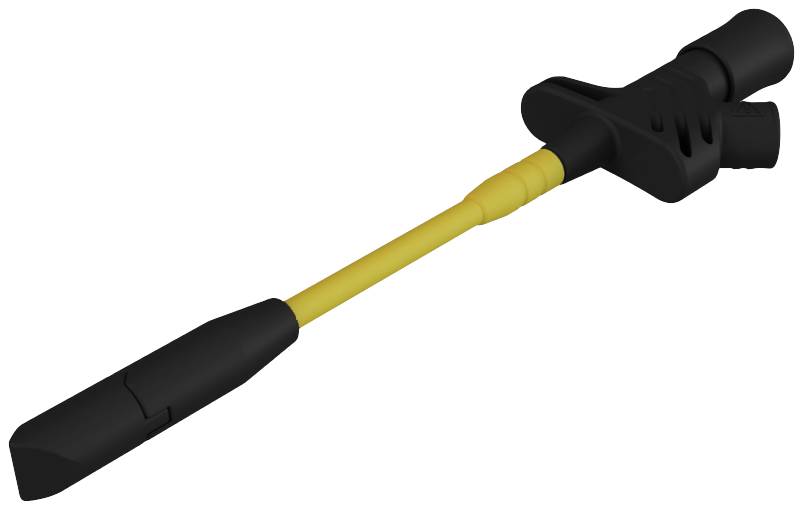

Hirschmann Test & Measurement KLEPS 2700 sw Clip terminal 4 mm jack connector CAT II 1000 V Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 17.64
-33 %
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details
Kleps 2700 grip test probe
- 4 mm
- Black
Technical specifications
- Safety standard: 61010
- Product type
Clip terminal
- Connection
4 mm jack connector
- Clamping range diameter mm
1.5 mm
- Max. clamping range
3.5 mm
- Factory colour
Black
- Nominal voltage
30 V AC
60 V DC
- Reading category
CAT II 1000 V
- Jack diameter
4 mm
- Length
162 mm
- Tip material
Stainless steel, nickel-plated
- Max. resistance
100 mΩ
- Content
1 pc(s)
- Nominal current
10 A
- Temperature range
-25 °C - +80 °C
- Type
KLEPS 2700 sw
Documents & Downloads
Datasheet
Datasheet 138380 Hirschmann Test & Measurement KLEPS 2700 sw Clip terminal 4 mm jack connector CAT II 1000 V Black
User & Safety Instructions
User & Safety Instructions 138380 Hirschmann Test & Measurement KLEPS 2700 sw Clip terminal 4 mm jack connector CAT II 1000 V Black
Description
Safety grip test probe with two-part tip.
