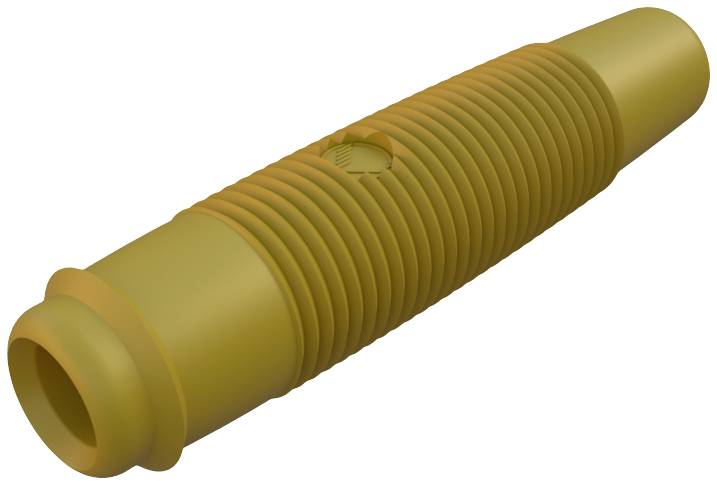

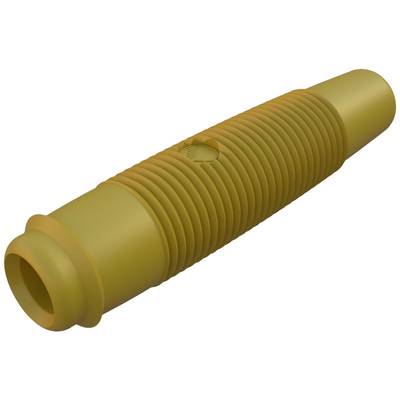

Hirschmann Test & Measurement KUN 30 Au Jack socket Socket, straight Pin diameter: 4 mm Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Jack socket
Connector type
Socket, straight
Pin Ø
4 mm
Connection
Soldering
Nominal current
16 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14-day return policy included
Highlights & Details
Hirschmann Test & Measurement KUN 30 Au Jack socket Socket, straight Pin diameter: 4 mm Yellow 1 pc(s)
- 4 mm
Our service for you
Technical specifications
- Product type
Jack socket
- Connector type
Socket, straight
- Pin Ø
4 mm
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Cross section (flexible) (max.)
2.5 mm²
- Connection
Soldering
- Factory colour
Yellow
- Insulation type
Insulated
- Manufacturer part #
931804703
- Type
KUN 30 Au
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PVC
- Contact material
Brass gold plated
- Nominal voltage
60 V DC
- RoHS-compliant
Yes
- Temperature range
-25 °C Up to +70 °C
- Material (details)
Contact: gold-plated brass
- Nominal voltage (details)
60 V DC
- Nominal current (details)
16 A
- Contact resistance
2 mΩ
- Connection
Soldering
Documents & Downloads
Datasheet
Datasheet 732894 Hirschmann Test & Measurement KUN 30 Au Jack socket Socket, straight Pin diameter: 4 mm Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 732894 Hirschmann Test & Measurement KUN 30 Au Jack socket Socket, straight Pin diameter: 4 mm Yellow 1 pc(s)
Description
With non-slip flexible sleeve, plug connection can be soldered for 4 mm plug and cable connection for max. 2.5 mm²
