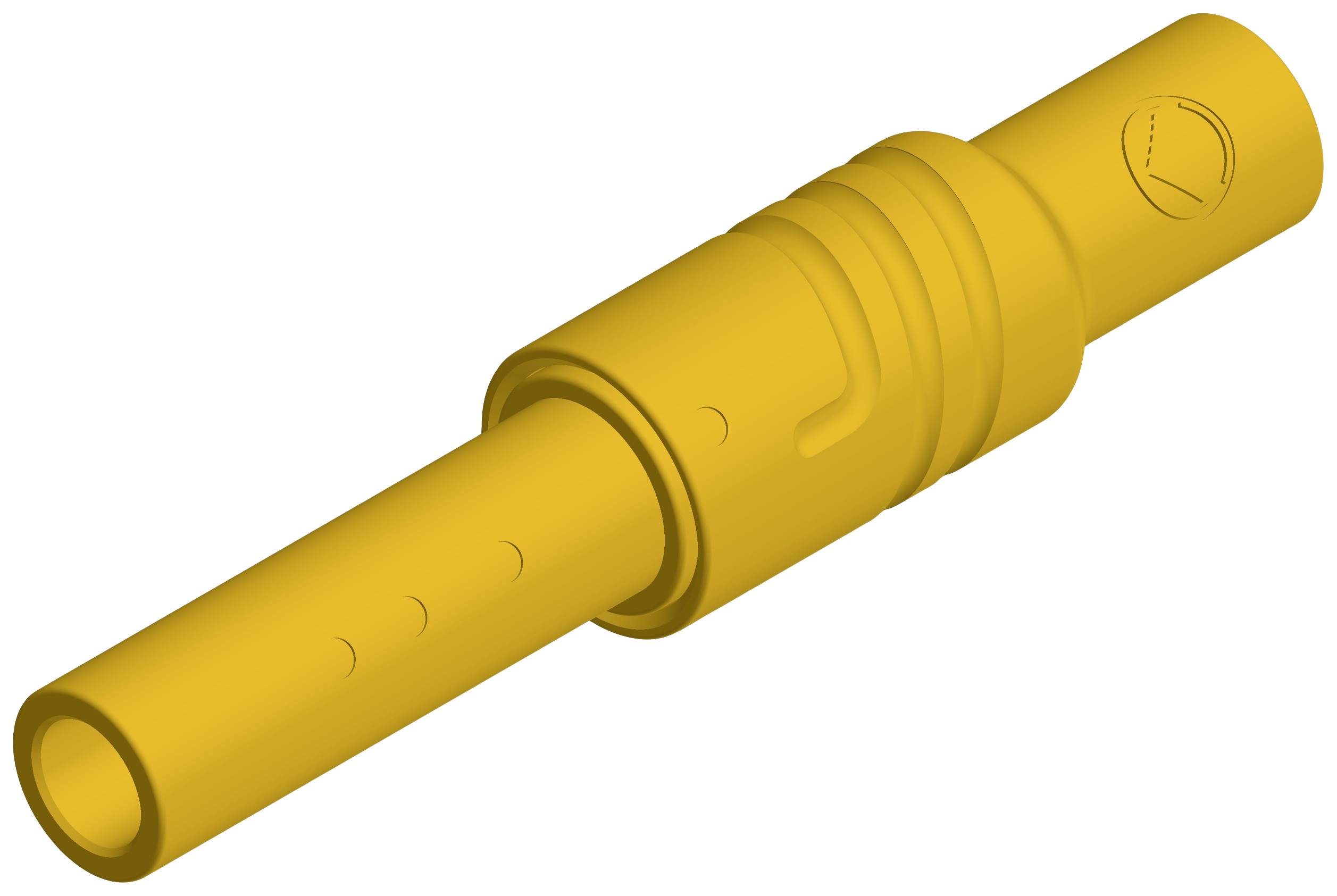

Hirschmann Test & Measurement KUN S Straight blade safety socket Socket, straight Pin diameter: 4 mm Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Straight blade safety socket
Connector type
Socket, straight
Pin Ø
4 mm
Cross section (flexible) (min.)
0.5 mm²
Connection
Screws
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
Highlights & Details
Hirschmann Test & Measurement KUN S Straight blade safety socket Socket, straight Pin diameter: 4 mm Yellow 1 pc(s)
- 4 mm rigid sleeve system
Our service for you
Technical specifications
- Product type
Straight blade safety socket
- Connector type
Socket, straight
- Pin Ø
4 mm
- Nominal current
24 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
24 A
- Cross section (flexible) (max.)
1.5 mm²
- Connection
Screws
- Factory colour
Yellow
- Insulation type
Insulated
- Manufacturer part #
934096103
- Type
KUN S
- Content
1 pc(s)
- Insulation material
PA
- Contact material
Brass nickel plated
- Nominal voltage
1000 V
- RoHS-compliant
Yes
- Certification marks
DIN EN 61010/ 031
- Connection
-
- Operating voltage
1000 max. V
Documents & Downloads
Datasheet
Datasheet 735272 Hirschmann Test & Measurement KUN S Straight blade safety socket Socket, straight Pin diameter: 4 mm Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 735272 Hirschmann Test & Measurement KUN S Straight blade safety socket Socket, straight Pin diameter: 4 mm Yellow 1 pc(s)
Description
Couplers used for building your own test/measurement leads. Various contact and connection systems let you find the optimum solution for every application. Couplers make it possible to create extension/jointed cables. Safety coupler KUN S 4 mm Ø screw terminal.
