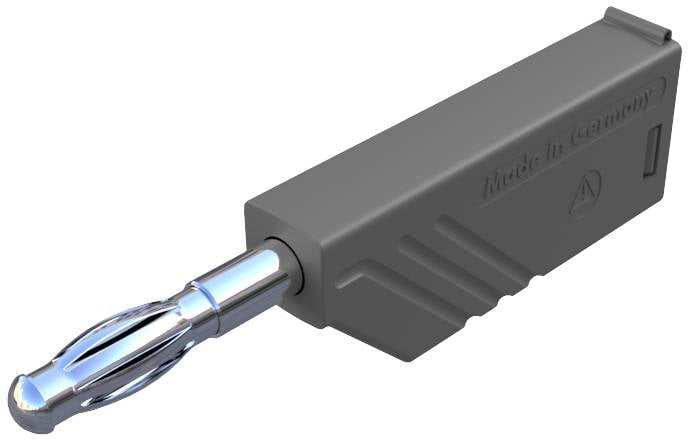

Hirschmann Test & Measurement LAS N WS grau Straight blade plug Plug, straight Pin diameter: 4 mm Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Straight blade plug
Connector type
Plug, straight
Pin Ø
4 mm
Cross section (flexible) (min.)
0.5 mm²
Connection
Screws
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
14-day return policy included
Highlights & Details
Hirschmann Test & Measurement LAS N WS grau Straight blade plug Plug, straight Pin diameter: 4 mm Grey 1 pc(s)
- 4 mm
Our service for you
Technical specifications
- Product type
Straight blade plug
- Connector type
Plug, straight
- Pin Ø
4 mm
- Nominal current
24 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
24 A
- Cross section (flexible) (max.)
1.5 mm²
- Connection
Screws
- Factory colour
Grey
- Insulation type
Partially insulated
- Manufacturer part #
934100106
- Type
LAS N WS grau
- Scoop-proof
No
- Content
1 pc(s)
- Insulation material
PA
- Contact material
Nickel plated
- Nominal voltage
60 V DC
- RoHS-compliant
Yes
- Temperature range
-15 to +70 °C
- Material (details)
Contact: Nickel-plated brass
- Resistance
3 mΩ
- Nominal voltage (details)
60 V DC
- Nominal current (details)
24 A
- Cross section
1.5 mm²
- Certification marks
IEC 61010
- Connection
Screws
Documents & Downloads
Datasheet
Datasheet 732694 Hirschmann Test & Measurement LAS N WS grau Straight blade plug Plug, straight Pin diameter: 4 mm Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 732694 Hirschmann Test & Measurement LAS N WS grau Straight blade plug Plug, straight Pin diameter: 4 mm Grey 1 pc(s)
Description
Tower plug with screw connection for lines of 0.5mm² to 1.5mm², outer diameter of cable max. 4.2mm. Connector 4 mm with Lamellae spring, non contact protective.
