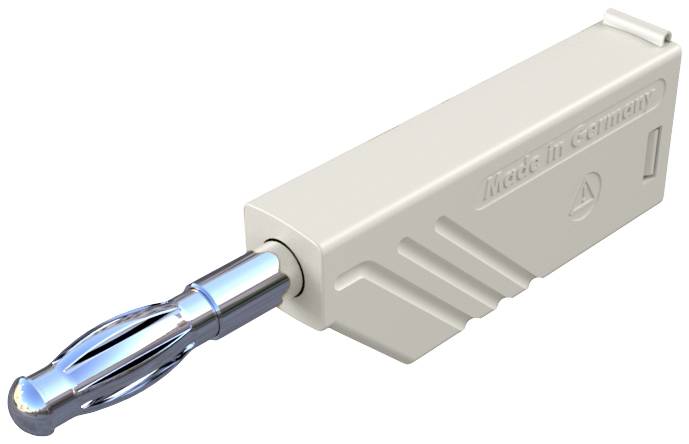

Hirschmann Test & Measurement LAS N WS weiß Straight blade plug Plug, straight Pin diameter: 4 mm White 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Straight blade plug
Connector type
Plug, straight
Pin Ø
4 mm
Cross section (flexible) (min.)
0.5 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 5.87
-39 %
€ 3.61
plus VAT.
14-day return policy included
Highlights & Details
Hirschmann Test & Measurement LAS N WS weiß Straight blade plug Plug, straight Pin diameter: 4 mm White 1 pc(s) Piece
- 4 mm
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Straight blade plug
- Connector type
Plug, straight
- Pin Ø
4 mm
- Nominal current
24 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
24 A
- Cross section (flexible) (max.)
1.5 mm²
- Connection
Screws
- Factory colour
White
- Insulation type
Partially insulated
- Manufacturer part #
934100107
- Type
LAS N WS weiß
- Dim
(Ø) 4 mm
- Scoop-proof
No
- Content
1 pc(s)
- Insulation material
PA
- Contact material
Nickel plated
- Nominal voltage
60 V DC
- (Ø)
4 mm
- RoHS-compliant
Yes
- Temperature range
-15 to +70 °C
- Material (details)
Contact: Nickel-plated brass
- Resistance
3 mΩ
- Nominal voltage (details)
60 V DC
- Nominal current (details)
24 A
- Cross section
1.5 mm²
- Certification marks
IEC 61010
- Connection
Screws
Documents & Downloads
Datasheet
Datasheet 732708 Hirschmann Test & Measurement LAS N WS weiß Straight blade plug Plug, straight Pin diameter: 4 mm White 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 732708 Hirschmann Test & Measurement LAS N WS weiß Straight blade plug Plug, straight Pin diameter: 4 mm White 1 pc(s) Piece
Description
Tower plug with screw connection for lines of 0.5mm² to 1.5mm², outer diameter of cable max. 4.2mm. Connector 4 mm with Lamellae spring, non contact protective.
