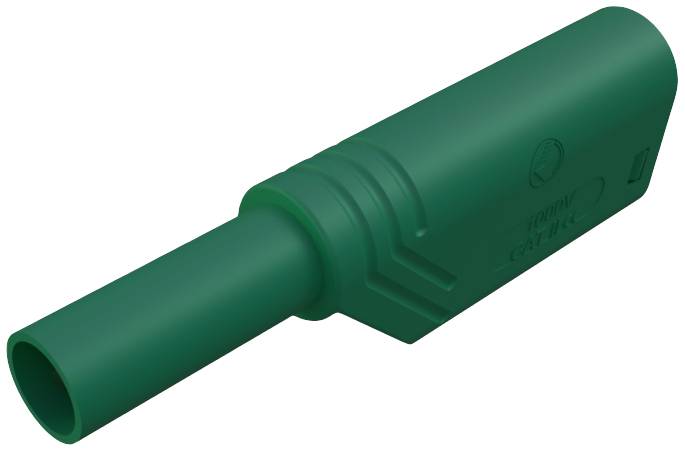

Hirschmann Test & Measurement LAS S WS Straight blade safety plug Plug, straight Pin diameter: 4 mm Green 1 pc(s)
EAN:
Part number:
Item no:
Product type
Straight blade safety plug
Connector type
Plug, straight
Pin Ø
4 mm
Cross section (flexible) (min.)
0.5 mm²
Connection
Screws
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€ 5.03
-20 %
€ 4.03
plus VAT.
14-day return policy included
Highlights & Details
Safety lamellae plug LAS and WS
- 4 mm rigid sleeve system
Our service for you
Technical specifications
- Product type
Straight blade safety plug
- Connector type
Plug, straight
- Pin Ø
4 mm
- Nominal current
24 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
24 A
- Cross section (flexible) (max.)
1.5 mm²
- Connection
Screws
- Factory colour
Green
- Insulation type
Insulated
- Manufacturer part #
934099104
- Type
LAS S WS
- Dim
(Ø) 4 mm
- Scoop-proof
Yes
- Content
1 pc(s)
- Insulation material
PA
- Contact material
Nickel plated
- Nominal voltage
1000 V DC/AC
- (Ø)
4 mm
- RoHS-compliant
Yes
- Temperature range
-15 to +70 °C
- Material (details)
Contact: Nickel-plated
- Nominal voltage (details)
1000 V/AC/DC CAT II
- Cross section
1.5 mm²
- Certification marks
IEC 61010
- Connection
Screws
Documents & Downloads
Datasheet
Datasheet 735066 Hirschmann Test & Measurement LAS S WS Straight blade safety plug Plug, straight Pin diameter: 4 mm Green 1 pc(s)
User & Safety Instructions
User & Safety Instructions 735066 Hirschmann Test & Measurement LAS S WS Straight blade safety plug Plug, straight Pin diameter: 4 mm Green 1 pc(s)
Description
Tower plug with screw connection for lines of 0.5mm² to 1.5mm², outer diameter of cable max. 4.2mm. Prong 4 mm with Lamellae spring, 1000 V-System.
