Hirschmann Test & Measurement MAL S WS-B 100/2,5 gr Safety test lead 4 mm safety jack 4 mm safety plug (stackable) 100 c
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details

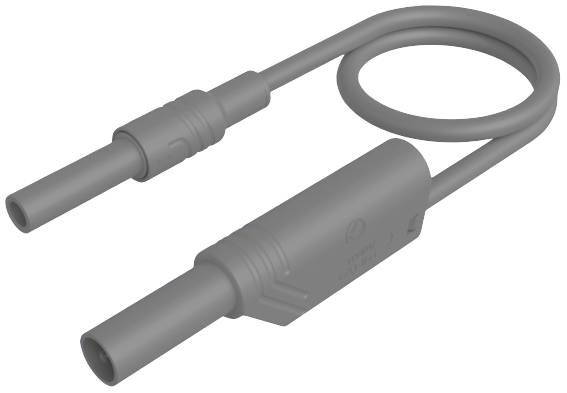

Safety adapter measuring lead
- CAT II
Technical specifications
- Product type
Safety test lead
- Type A
4 mm safety jack
- Type B
4 mm safety plug (stackable)
- Cable length
100 cm
- Factory colour
Grey
- Plug features
Nestable
Scoop-proof
- Material
PA
PVC
- Cable cross section
2.5 mm²
- Nominal voltage
1000 V
- Diameter/connectortype
4 mm
- Temperature range
-15 to 70 °C
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Jack diameter
4 mm
- Contact material
Ni
- Reading category
CAT II
- Type
MAL S WS-B 100/2,5 gr
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2621057 Hirschmann Test & Measurement MAL S WS-B 100/2,5 gr Safety test lead 4 mm safety jack 4 mm safety plug (stackable) 100 c
User & Safety Instructions
User & Safety Instructions 2621057 Hirschmann Test & Measurement MAL S WS-B 100/2,5 gr Safety test lead 4 mm safety jack 4 mm safety plug (stackable) 100 c
Description
Contact-proof adapter measuring lead according to IEC 61010, withFurther pluggable 4 mm safety plug as well as 4 mm safety socket. Highly flexible, double insulated stranded wire.
