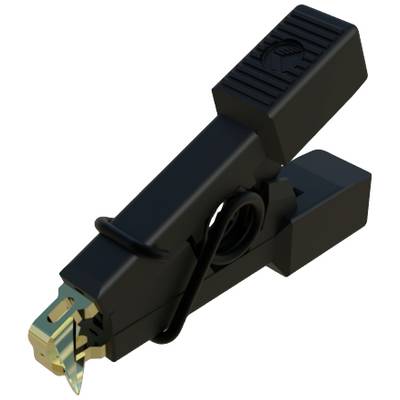

Hirschmann Test & Measurement MICRO-SMD CLIP 1 Alligator clip 0.64 mm jack connector Ohne Messkategorie Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14-day return policy included
Highlights & Details
Test clip Micro-SMD Clip 1
- 0.64 mm
- Black
Technical specifications
- Product type
Alligator clip
- Connection
0.64 mm jack connector
- Clamping range diameter mm
8 mm
- Max. clamping range
8 mm
- Factory colour
Black
- Nominal voltage
60 V DC
- Reading category
Ohne Messkategorie
- Jack diameter
0.64 mm
- Length
25 mm
- Tip material
Gold-plated copper-beryllium
- Max. resistance
6 mΩ
- Content
1 pc(s)
- Nominal current
1 A
- Temperature range
-30 - +100 °C
- Type
MICRO-SMD CLIP 1
Documents & Downloads
Datasheet
Datasheet 121305 Hirschmann Test & Measurement MICRO-SMD CLIP 1 Alligator clip 0.64 mm jack connector Ohne Messkategorie Black
User & Safety Instructions
User & Safety Instructions 121305 Hirschmann Test & Measurement MICRO-SMD CLIP 1 Alligator clip 0.64 mm jack connector Ohne Messkategorie Black
Description
Features
- Self retaining 2 pole test clip, especially for SMD components
- Gold plated, hardened tip for testing in circuits
- Flat pot for the testing of individual components
- Groove for clamping thin wires
- Balanced spring force to measure small and large components
- 0.64 mm pin connector
- Spring electrically isolated
