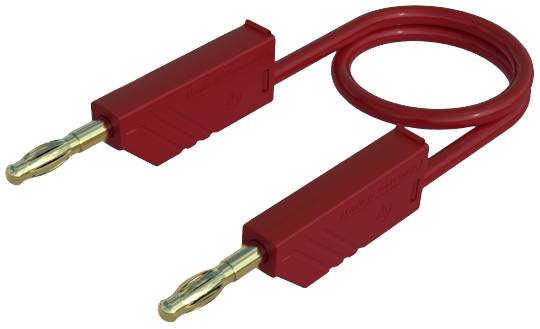

Hirschmann Test & Measurement MLN 200/2,5 RT Test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Red 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
Highlights & Details
4mm PVC-test lead, on both sides stackable plugs - Au, 2,5mm², 200 cm
- Highly flexible, double insulated PVC-test lead, gold-plated and stackable plugs Ø 4mm, 200 cm
Technical specifications
- Product type
Test lead
- Type A
Banana jack 4 mm
- Type B
Banana jack 4 mm
- Cable length
2.00 m
- Factory colour
Red
- Plug features
Nestable
- Material
PVC
- Cable cross section
2.5 mm²
- Nominal voltage
30 V AC
60 V DC
- Diameter/connectortype
4 mm system
- Temperature range
-15 °C to +70 °C °C
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Jack diameter
4 mm
- Contact material
Au
- Reading category
CAT I
- Width
7.5 mm
- Height
15 mm
- Type
MLN 200/2,5 RT
- Nominal current (details)
32 A
- Reading category
CAT I
Documents & Downloads
Datasheet
Datasheet 678939 Hirschmann Test & Measurement MLN 200/2,5 RT Test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 678939 Hirschmann Test & Measurement MLN 200/2,5 RT Test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Red 1 pc(s)
Description
Measuring lead, at either end 4 mm diameter plug with caged spring and 4 mm diameter socket for tower construction. Gold-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages.
Features
- 4 mm plug with caged spring for high contact reliability. Built in colour indicator for easy identification of insulation damages.
Scope of delivery
- 1 x measuring lead
