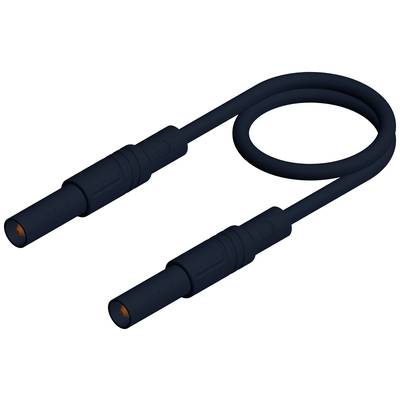

Hirschmann Test & Measurement MLS GG 200/1 sw Safety test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Black 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 10.08
-8 %
€ 9.24
plus VAT.
14-day return policy included
Highlights & Details
4 mm safety test lead, 2x straight plugs, 1 mm², 200 cm
- safety test lead 1000 V / CAT III, straight plugs Ø 4 mm, 16 A, 200 cm
Technical specifications
- Product type
Safety test lead
- Type A
Banana jack 4 mm
- Type B
Banana jack 4 mm
- Cable length
2.00 m
- Factory colour
Black
- Plug features
Scoop-proof
- Material
PVC
- Cable cross section
1 mm²
- Nominal voltage
1000 V
- Diameter/connectortype
4 mm safety system
- Temperature range
-15 °C to +70 °C °C
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Contact material
Ni
- Reading category
CAT III 1000 V
- Width
7.8 mm
- Height
7.8 mm
- Type
MLS GG 200/1 sw
- Nominal current (details)
16 A
- Reading category
CAT III
Documents & Downloads
Datasheet
Datasheet 679006 Hirschmann Test & Measurement MLS GG 200/1 sw Safety test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 679006 Hirschmann Test & Measurement MLS GG 200/1 sw Safety test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Black 1 pc(s)
Description
Safety measuring lead, at either end 4 mm diameter safety connector with straight outlet. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Color indicator for the recognition of damage to the insulation. In accordance to IEC 61010 standard.
Features
- Highly flexible, double insulated stranded lead. Built in colour indicator for easy identification of insulation damages. CE certified.
Scope of delivery
- 1 x safety measuring lead
