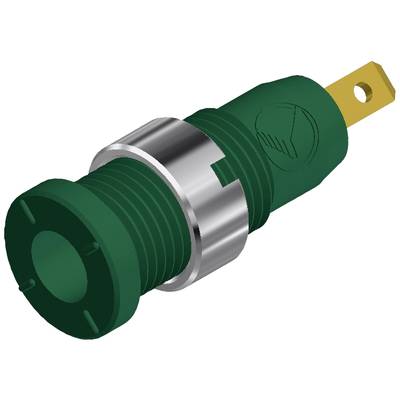

Hirschmann Test & Measurement MSEB 2610 F 2,8 Au Safety jack socket Socket, vertical vertical Pin diameter: 2 mm Green 1
EAN:
Part number:
Item no:
Product type
Safety jack socket
Connector type
Socket, vertical vertical
Pin Ø
2 mm
Connection
Type C CEE 7/16 plug 2.8 mm
Nominal current
10 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€ 5.03
-20 %
€ 4.03
plus VAT.
14-day return policy included
Highlights & Details
Hirschmann Test & Measurement MSEB 2610 F 2,8 Au Safety jack socket Socket, vertical vertical Pin diameter: 2 mm Green 1 pc(s)
- 2 mm
Our service for you
Technical specifications
- Product type
Safety jack socket
- Connector type
Socket, vertical vertical
- Pin Ø
2 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Connection
Type C CEE 7/16 plug 2.8 mm
- Factory colour
Green
- Insulation type
Insulated
- Manufacturer part #
975455704
- Type
MSEB 2610 F 2,8 Au
- Content
1 pc(s)
- Insulation material
PA 6.6
- Contact material
Brass gold plated
- Nominal voltage
1000 V DC/AC
- RoHS-compliant
Yes
- Temperature range
(-25 to +70 ºC) °C
- Material (details)
Contact: gold-plated brass
- Resistance
5 mΩ
- Nominal voltage (details)
1000 V/AC/DC CAT III
- Nominal current (details)
10 A
- Connection
2.8 mm male spade connector
Documents & Downloads
Datasheet
Datasheet 733068 Hirschmann Test & Measurement MSEB 2610 F 2,8 Au Safety jack socket Socket, vertical vertical Pin diameter: 2 mm Green 1
User & Safety Instructions
User & Safety Instructions 733068 Hirschmann Test & Measurement MSEB 2610 F 2,8 Au Safety jack socket Socket, vertical vertical Pin diameter: 2 mm Green 1
Description
Miniature safety panel-mounted socket, Ø 2 mm. For mounting in switch panels and equipment frames with up to 8 mm wall thickness. Mounting hole dia. 8 mm.
