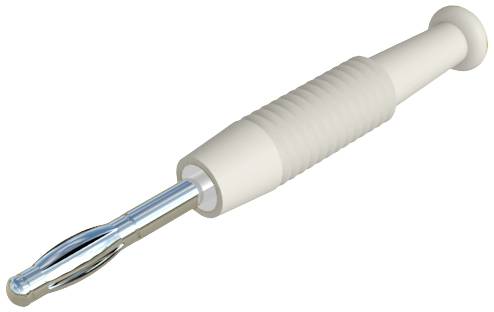

Hirschmann Test & Measurement MSTF 2 ws Straight blade plug Plug, straight Pin diameter: 2 mm White 1 pc(s)
EAN:
Part number:
Item no:
Product type
Straight blade plug
Connector type
Plug, straight
Pin Ø
2 mm
Connection
Soldering
Nominal current
6 A
Datasheet (PDF)
Number
Total (€ 1.08 / piece)
€ 2.34
-54 %
€ 1.08
plus VAT.
14-day return policy included
Highlights & Details
MSTF plug 2
- 6 A White
Our service for you
Technical specifications
- Product type
Straight blade plug
- Connector type
Plug, straight
- Pin Ø
2 mm
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Cross section (flexible) (max.)
0.50 mm²
- Connection
Soldering
- Factory colour
White
- Insulation type
Partially insulated
- Manufacturer part #
938420107
- Type
MSTF 2 ws
- Scoop-proof
No
- Content
1 pc(s)
- Insulation material
PVC
- Contact material
Brass nickel plated
- Nominal voltage
30 V AC
60 V DC
- RoHS-compliant
Yes
- Temperature range
-15 °C - + 70 °C
Documents & Downloads
Datasheet
Datasheet 1881248 Hirschmann Test & Measurement MSTF 2 ws Straight blade plug Plug, straight Pin diameter: 2 mm White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1881248 Hirschmann Test & Measurement MSTF 2 ws Straight blade plug Plug, straight Pin diameter: 2 mm White 1 pc(s)
Description
Spring 2 mm plug, for cables up to 0.5 mm² and maximum outer diameter of 2 mm, suitable for all unsprung 2 mm connectors.
