Hirschmann Test & Measurement PL 2700 S W sw Test lead Test probe 4 mm plug 1.00 m Black 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details
Test lead PL 2700 S W sw
- CAT II
- Cable cross section 1 mm²
- Cable length 1.00 m
- Connector/ Input type A: Test probe
- Connector / Output type B: 4 mm plug
Technical specifications
- Forward resistance: 20MΩ
- Standard IEC 61010
- Product type
Test lead
- Type A
Test probe
- Type B
4 mm plug
- Cable length
1.00 m
- Factory colour
Black
- Plug features
Angled
- Material
PVC
- Cable cross section
1 mm²
- Nominal voltage
1000 V
- Diameter/connectortype
4 mm
- Temperature range
-15 to +70 °C
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Contact material
Brass nickel plated
- Reading category
CAT II
- Type
PL 2700 S W sw
Documents & Downloads
Datasheet
Datasheet 2119260 Hirschmann Test & Measurement PL 2700 S W sw Test lead Test probe 4 mm plug 1.00 m Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2119260 Hirschmann Test & Measurement PL 2700 S W sw Test lead Test probe 4 mm plug 1.00 m Black 1 pc(s)
Description

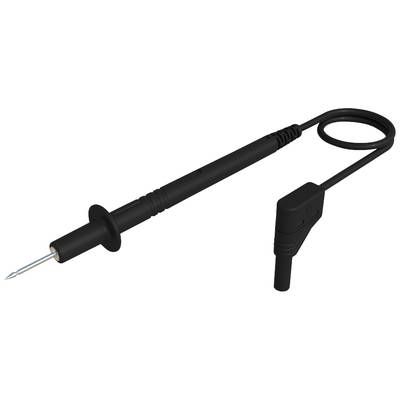

Contact-proof test lead with test tip, tip for penetration of oxide layers. 4 mm diameter safety plug with angled outlet. Highly flexible, double insulated stranded wire with integrated color indicator for detecting damage to the insulation.
This text is machine translated.
This text is machine translated.
Features
- Material: PVC.
- This text is machine translated.
