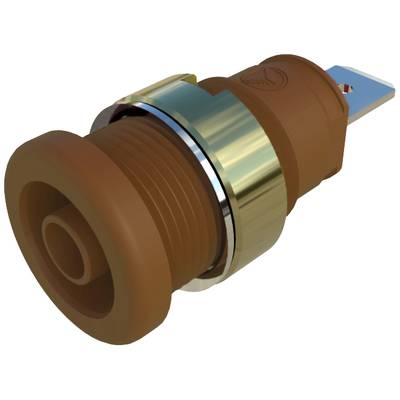

Hirschmann Test & Measurement SEB 2610 F4,8 Safety jack socket Socket, vertical vertical Pin diameter: 4 mm Brown 1 pc(s
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety jack socket
Connector type
Socket, vertical vertical
Pin Ø
4 mm
Connection
Type C CEE 7/16 plug 4.8 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€ 5.03
-20 %
€ 4.03
plus VAT.
14-day return policy included
Highlights & Details
Hirschmann Test & Measurement SEB 2610 F4,8 Safety jack socket Socket, vertical vertical Pin diameter: 4 mm Brown 1 pc(s) Piece
- 4 mm
Our service for you
Technical specifications
- Gold-plated brass
- Packaging type
Piece
- Product type
Safety jack socket
- Connector type
Socket, vertical vertical
- Pin Ø
4 mm
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Connection
Type C CEE 7/16 plug 4.8 mm
- Factory colour
Brown
- Insulation type
Insulated
- Manufacturer part #
972355105
- Type
SEB 2610 F4,8
- Dim
(Ø) 4 mm
- Scoop-proof
Yes
- Content
1 pc(s)
- Insulation material
PA
- Contact material
Gold plated
- Dimensions
12.2 mm
- Nominal voltage
1000 V
- (Ø)
4 mm
- RoHS-compliant
Yes
- Temperature range
-40 - +80 °C
- Recess diameter (details)
12.2 mm
- Resistance
5 Ω
- Nominal voltage (details)
1000 V (CAT III)
- Nominal current (details)
25 A
- Contamination level
2
- Connection
4.8 mm male spade connector
Documents & Downloads
Datasheet
Datasheet 732787 Hirschmann Test & Measurement SEB 2610 F4,8 Safety jack socket Socket, vertical vertical Pin diameter: 4 mm Brown 1 pc(s
User & Safety Instructions
User & Safety Instructions 732787 Hirschmann Test & Measurement SEB 2610 F4,8 Safety jack socket Socket, vertical vertical Pin diameter: 4 mm Brown 1 pc(s
Description
Contact safe mounting Jack. For installation in control panels or equipment chassis to 6 mm wall thickness.
Features
- Accidental contact protection
- For mounting in switch panels and equipment frames with up to 6 mm panel thickness.
Hints
Attachment BES 1000
