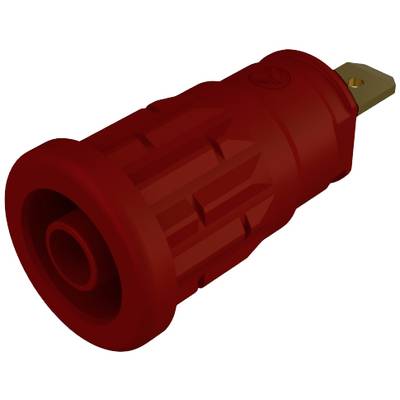

Hirschmann Test & Measurement SEP 2610 F4,8 Safety jack socket Socket, vertical vertical Pin diameter: 4 mm Red 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety jack socket
Connector type
Socket, vertical vertical
Pin Ø
4 mm
Connection
Type C CEE 7/16 plug 4.8 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
10
7% = € 0.17
€ 2.17
25
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.34 / piece)
€ 2.34
plus VAT.
14-day return policy included
Highlights & Details
Hirschmann Test & Measurement SEP 2610 F4,8 Safety jack socket Socket, vertical vertical Pin diameter: 4 mm Red 1 pc(s) Piece
- 4 mm
Technical specifications
- Wall thickness: 1 - 10 mm
- Packaging type
Piece
- Product type
Safety jack socket
- Connector type
Socket, vertical vertical
- Pin Ø
4 mm
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Connection
Type C CEE 7/16 plug 4.8 mm
- Factory colour
Red
- Insulation type
Insulated
- Manufacturer part #
972361101
- Type
SEP 2610 F4,8
- Dim
(Ø) 4 mm
- Scoop-proof
Yes
- Jack diameter
12.2 mm
- Content
1 pc(s)
- Insulation material
PA
- Contact material
Brass gold plated
- Dimensions
1 - 10 mm
- Nominal voltage
1000 V
- (Ø)
4 mm
- RoHS-compliant
Yes
- Temperature range
-40 - +80 °C
- Material (details)
Gold-plated brass
- Nominal voltage (details)
1000 V AC/DC (CAT III)
- Nominal current (details)
24 A
- Wall thickness (details)
1 - 10 mm
- Connection
4.8 mm spade connector
Documents & Downloads
Datasheet
Datasheet 733974 Hirschmann Test & Measurement SEP 2610 F4,8 Safety jack socket Socket, vertical vertical Pin diameter: 4 mm Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 733974 Hirschmann Test & Measurement SEP 2610 F4,8 Safety jack socket Socket, vertical vertical Pin diameter: 4 mm Red 1 pc(s)
Description
Touch-proof press-in socket. For installation in control panels with walls from 1-10 mm thick. Mounting opening diameter 12.2 mm, chamfer: 0.5 x 45°.
