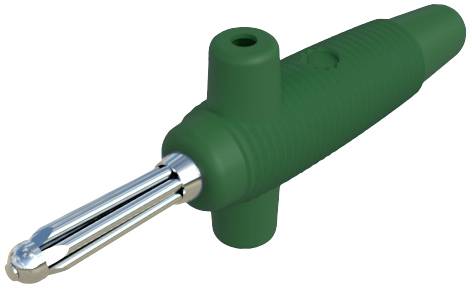

Hirschmann Test & Measurement VON 30 Jack plug Plug, straight Pin diameter: 4 mm Green 1 pc(s)
EAN:
Part number:
Item no:
Product type
Jack plug
Connector type
Plug, straight
Pin Ø
4 mm
Connection
Soldering
Nominal current
30 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Highlights & Details
Banana plug OF 20/30
- 4 mm
Our service for you
Technical specifications
- Product type
Jack plug
- Connector type
Plug, straight
- Pin Ø
4 mm
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Cross section (flexible) (max.)
2.5 mm²
- Connection
Soldering
- Factory colour
Green
- Insulation type
Partially insulated
- Manufacturer part #
931667104
- Type
VON 30
- Type
FROM 30
- Content
1 pc(s)
- Insulation material
PVC
- Contact material
Brass nickel plated
- Nominal voltage
60 V DC
- RoHS-compliant
Yes
- Temperature range
-25 - +70 °C
- Nominal voltage (details)
60 V DC
- Nominal current (details)
30 A
- Connection
Soldered connection
- Cable diameter
max. 1.5 mm²
Documents & Downloads
Datasheet
Datasheet 732499 Hirschmann Test & Measurement VON 30 Jack plug Plug, straight Pin diameter: 4 mm Green 1 pc(s)
User & Safety Instructions
User & Safety Instructions 732499 Hirschmann Test & Measurement VON 30 Jack plug Plug, straight Pin diameter: 4 mm Green 1 pc(s)
Description
Full-contact connector with pin, flexible crush-proof sleeve, continous operating current.
