Hitec Scale model multifunction charger 12 V, 230 V 6 A
EAN:
Part number:
Item no:
Highlights & Details
Multi-functional charger X 1 Red
- 10 different charging/discharging profiles
- 3.2" LCD display
- Operation with Hitec Batch Master Software possible
Technical specifications
- Operating voltage
11 - 18 V / DC
100 - 240 V
- Max. charging capacity
60 W
- Charging current (max.)
6 A
- Max. discharge power
5 W
- Discharge current
2 A
- Charging slots
1
- Connector system
4 mm
- Balancer plug-in
Multi-plug
- Dim
(L x W x H) 159 x 72.5 x 123 mm
- Height
123 mm
- Length
159 mm
- Width
72.5 mm
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.)
6
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (min.)
1
- Suitable for (no. of NiCd/NiMH batteries) (max.)
15
- Suitable for (No. of NiCd/NiMH batteries) (min.)
1
- Suitable for lead-type rechargeables (max.)
20 V
- Suitable for lead-type rechargeables (min.)
2 V
- Manufacturer part #
114131
- Operating voltage
12 V
230 V
- Weight
470 g
- Product type
Scale model multifunction charger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1545966 Hitec Scale model multifunction charger 12 V, 230 V 6 A
Description

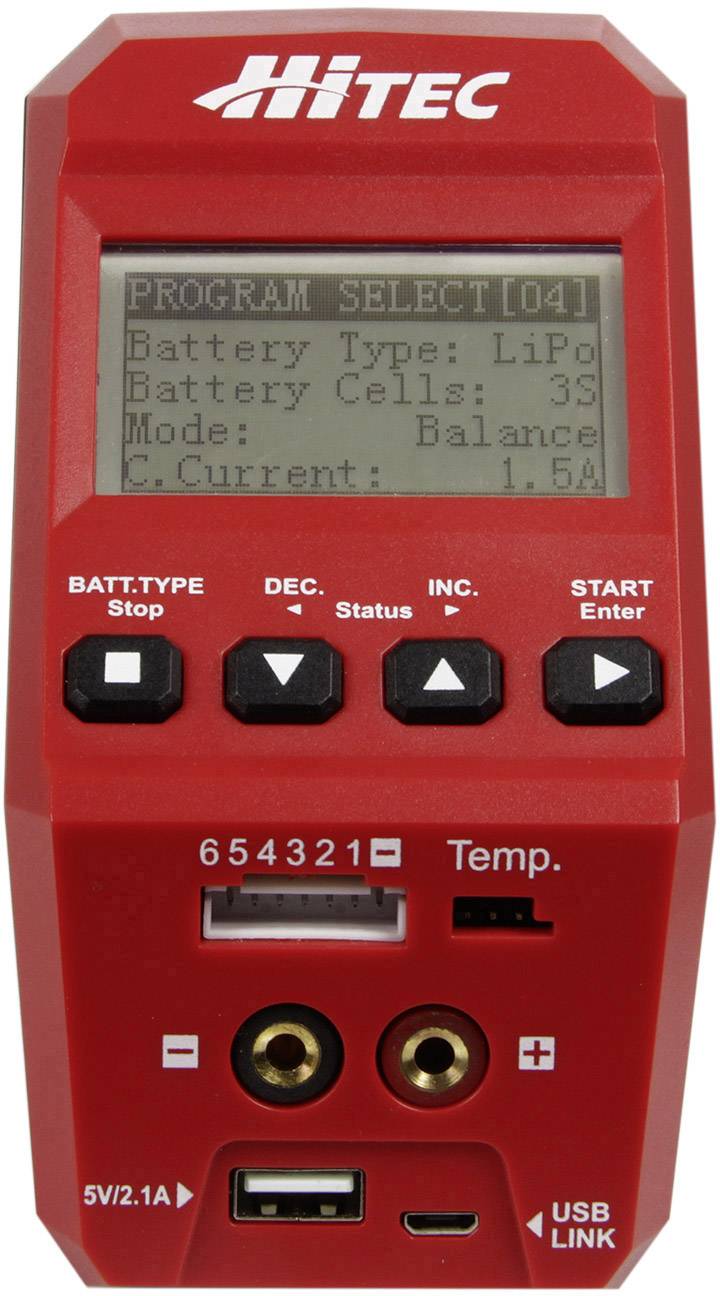

The hitec charger X1 RED is a microprocessor-controlled 12 V/230 V Ultra Performance-charger with management functions, for all common battery types. Its slim tower design makes possible a simple front panel operation of all inputs: 4 mm battery plug, balancer connection (XH), temperature sensor ports, USB 5 V/2.1A and micro B USB. Special features are the easy-to-read 3.2-inch LCD screen and the hitec batch master software, with which you can operate comfortably the X 1 RED on the computer. This compact 60-Watt power charger makes it possible for you to carry out all your charging processes can easily and conveniently
This text is machine translated.
This text is machine translated.
Features
- Optimized operating software
- Integrated balancer for lithium batteries
- Suitable for different lithium accumulator types
- Lithium Charging modes: normal, fast, balance and storage charge
- PC Charge Master Software can be used (Download from hitec internet page)
- Efizienter fan for maximum performance with low heat development

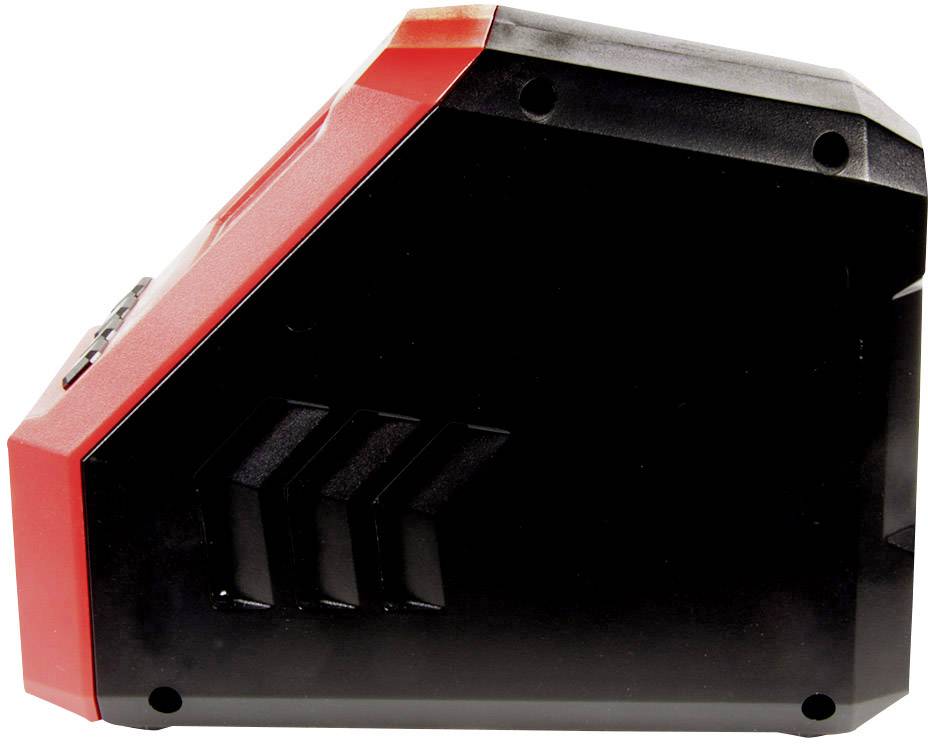

- Slim Tower Design
- Polarity reversal protection.

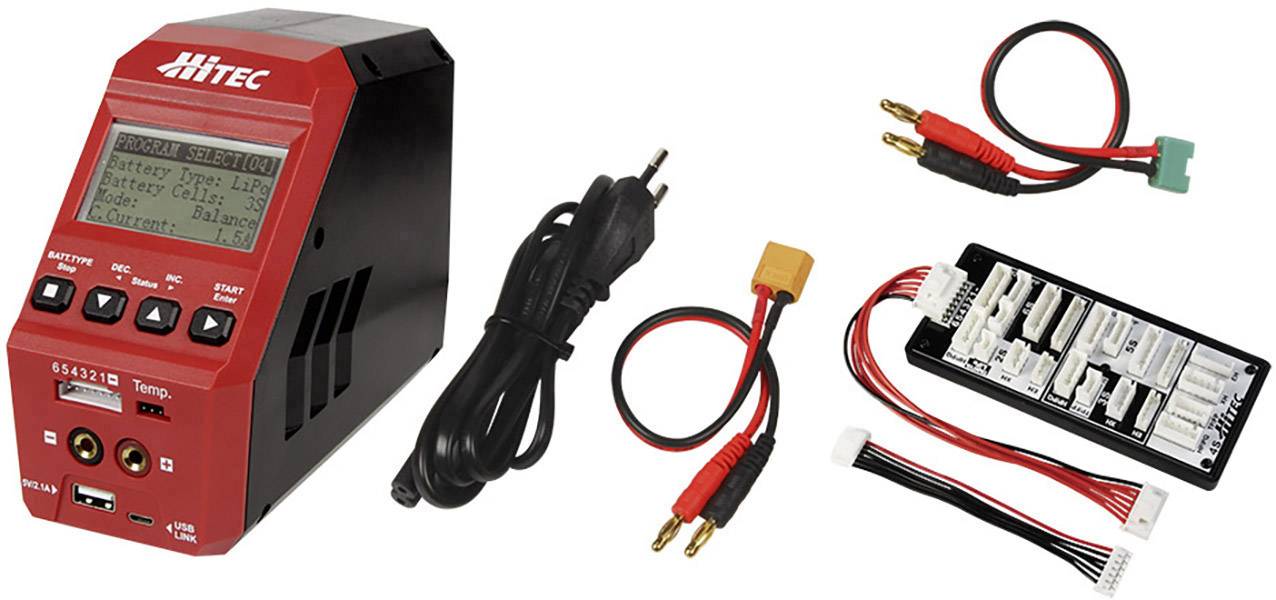

Scope of delivery
- Battery charger
- Charging cable multiplex M6 plug
- Loading cable XT-60 connector
- Universal balancer board
- User manual.
