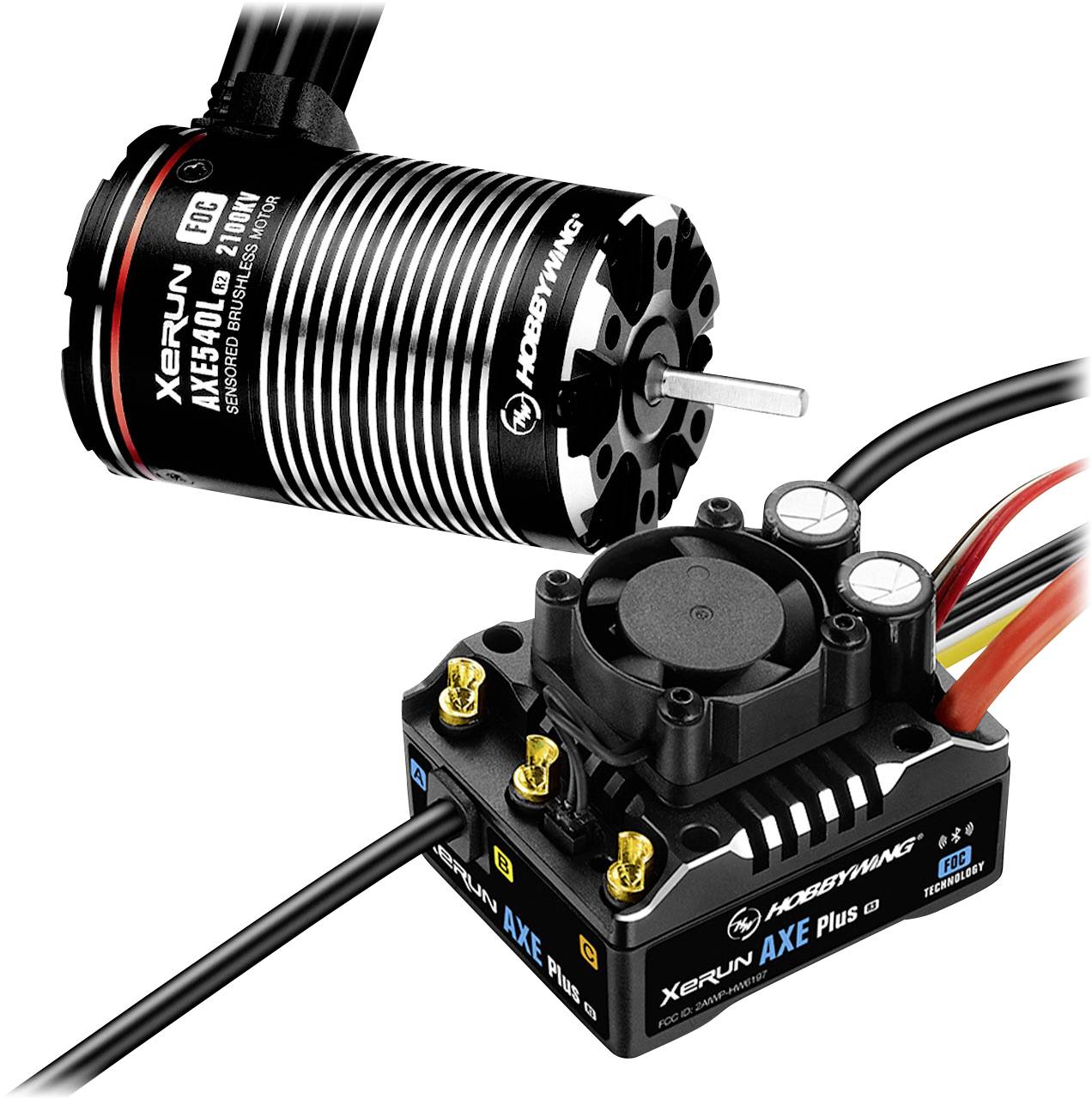

Hobbywing AXE Plus R3 540L 2100kV R2 38020386 Model car brushless motor kit 1:6, 1:8, 1:10
EAN:
Part number:
Item no:
Total (€ 210.08 / piece)
€ 210.08
plus VAT.
14-day return policy included
Technical specifications
- Current (duration/peak): 135A / 600A
- BEC: 6V / 7.4V / 8.4V (adjustable) @6A Switch-Mode
- Cable battery/motor: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
- 25 x 25 x 10mm, operated via BEC
- XT60 connections
- Programming: Via Bluetooth and "HW LINK" APP
- Application: 1/10, 1/8, 1/6 Rock Crawler
- Pole 4
- Wavelength: 16mm
- Controller (LxWxH) 49.5 x 37.9 x 32.8 mm, 127 g
- Motor (ØxL) 36 x 57.8 mm, 212 g
- Product type
Model car brushless motor kit
- kV (RPM per volt)
2100
- Scale
1:6
1:8
1:10
- No. of LiPo cells
2-6
- Shaft Ø
3.17 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400230 Hobbywing AXE Plus R3 540L 2100kV R2 38020386 Model car brushless motor kit 1:6, 1:8, 1:10
Description
Being able to get through any terrain is not a problem with the AXE Plus Combo including R3-controller and 2100kV 540L R2-motor. And thanks to the integrated FoC-technology the Combo convinces with linear power, abundant torque and almost noiseless operation - Ideal for demanding terrains.
The intelligent control, which is used in the R3-controller, enables the automatic adjustment of the torque for completely easy climbing areas and runs of hills, while the smart fan control starts only when needed. Thus the power consumption is kept low while driving and the operating temperature is optimized. With versatile programming options and a wide range of adjustable parameters, the Xerun AXE Plus R3 controller offers both powerful performance and excellent control for crawler vehicles with a wide range of requirements.
Furthermore, the enclosed 4-pole motor with a 3.175 mm shaft and 2100KV hardly has a locking torque and runs smoothly under all conditions. This is also supported by the Hobbywing patented "Staged Pole Rotor" design. And thus this Crawler Combo can work smoothly, it is protected against water and dust according to the IP67-standard and thus no long-lasting journeys under different weather conditions are present in the way. Product development also focused on the fact that the sensor connection does not allow water to enter.
This text is machine translated.
The intelligent control, which is used in the R3-controller, enables the automatic adjustment of the torque for completely easy climbing areas and runs of hills, while the smart fan control starts only when needed. Thus the power consumption is kept low while driving and the operating temperature is optimized. With versatile programming options and a wide range of adjustable parameters, the Xerun AXE Plus R3 controller offers both powerful performance and excellent control for crawler vehicles with a wide range of requirements.
Furthermore, the enclosed 4-pole motor with a 3.175 mm shaft and 2100KV hardly has a locking torque and runs smoothly under all conditions. This is also supported by the Hobbywing patented "Staged Pole Rotor" design. And thus this Crawler Combo can work smoothly, it is protected against water and dust according to the IP67-standard and thus no long-lasting journeys under different weather conditions are present in the way. Product development also focused on the fact that the sensor connection does not allow water to enter.
This text is machine translated.
Features
- Higher performance thanks to FOC technology (field-oriented control).
- Towing brake adjustable up to 200% for an unprecedented holding force on slopes.
- Super BEC with max. 6 A and three voltage levels for using different servos
- Waterproof and dust-proof according to IP67 standard including waterproof sensor connection
- Smart torque output and speed control.
- The controller has a built-in Bluetooth module for wireless programming.
- Motor with minimum latching torque & soft starting characteristics
- Optimized for fine performance
Scope of delivery

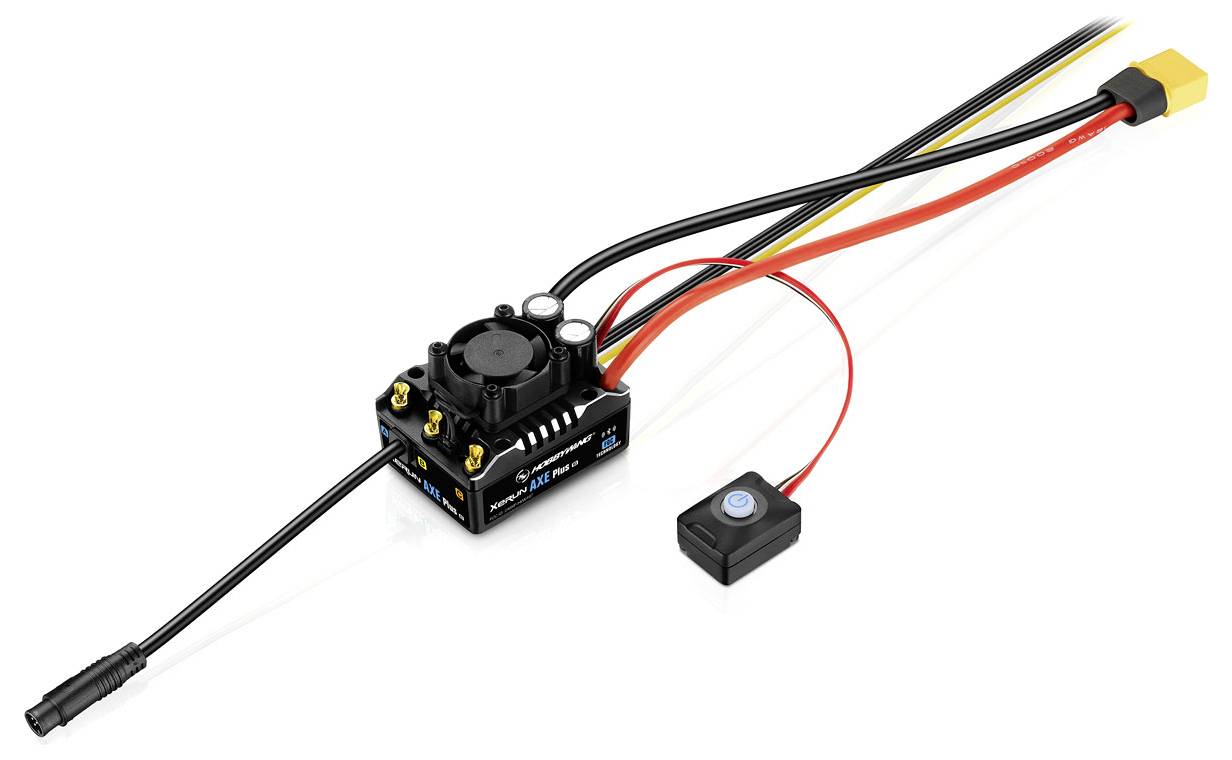

- Xerun AXE Plus R3 controller

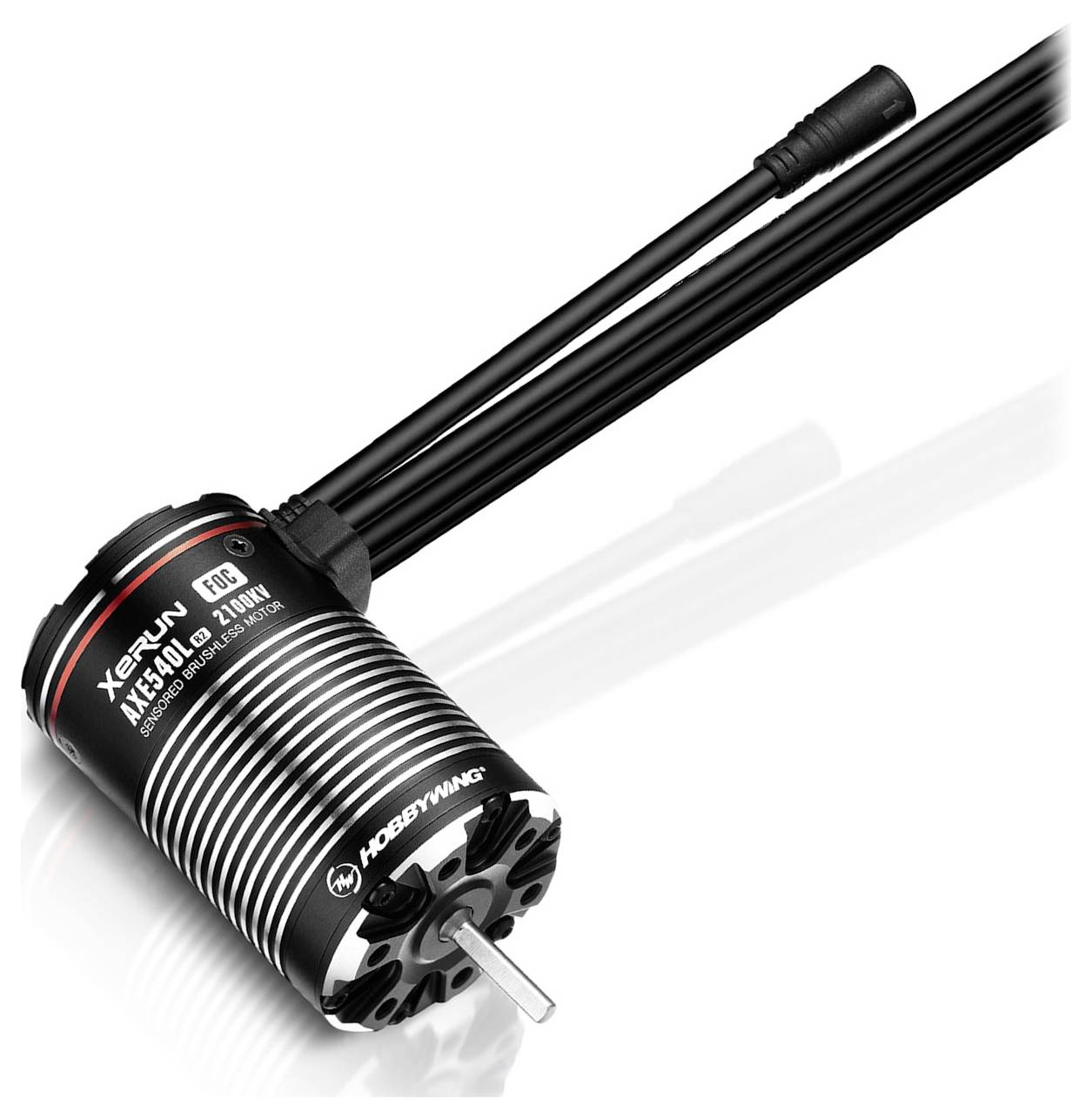

- Xerun AXE540L R2 motor with 2100kV
