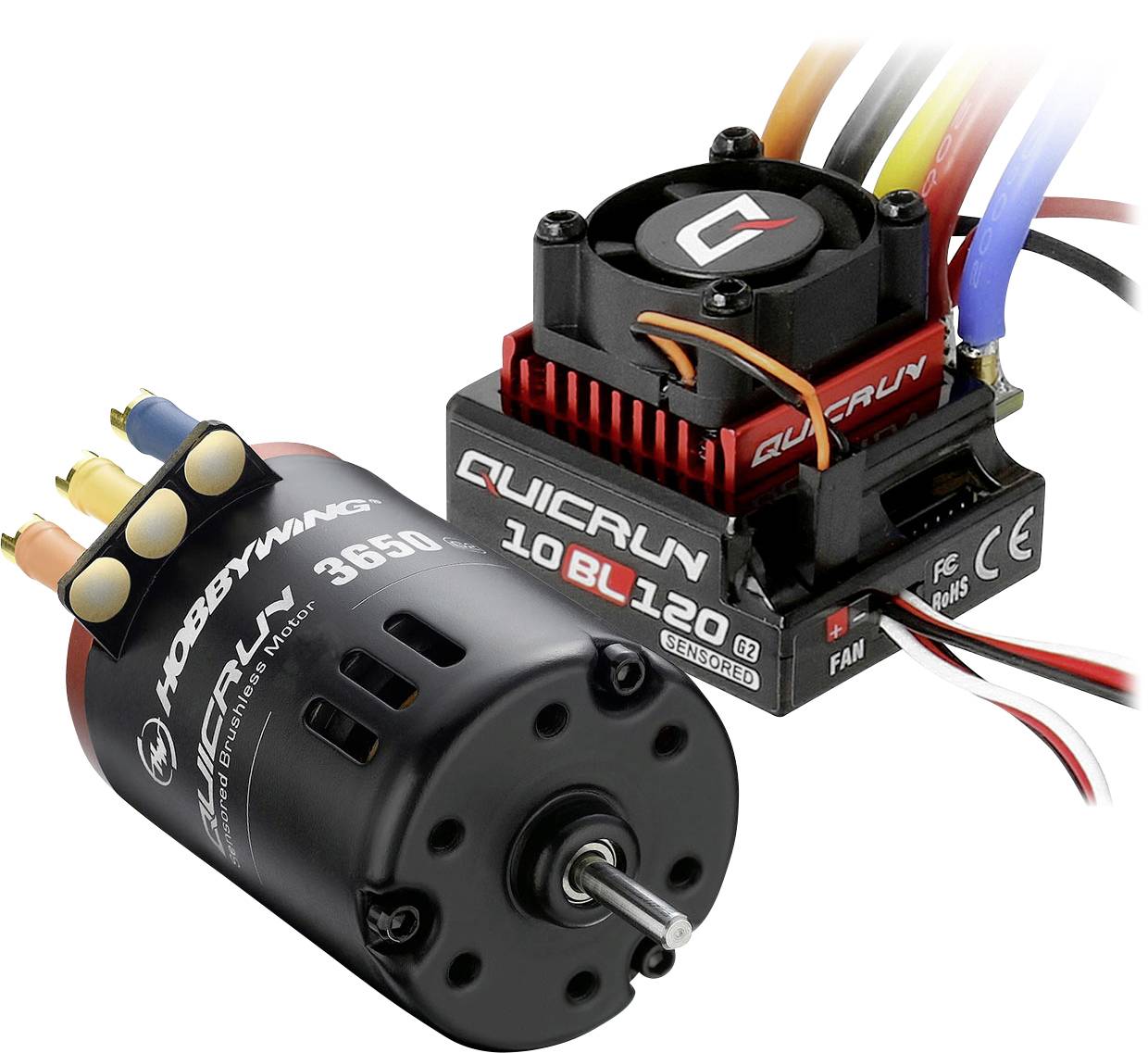

Hobbywing Combo 10BL120 G2 mit 3650SD 10.5T 38020381 Turns: 10.5 Model car brushless motor kit 1:10, 1:12
EAN:
Part number:
Item no:
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
14-day return policy included
Technical specifications
- Current (duration/peak): 120A / 760A
- BEC: 6V / 7.4V at 4A (Switch-Mode)
- Motor limit: 2S: >= 4.5T, 3650 engine, 3S: >= 10.5T, 3650 engine
- Blower: Operated via the BEC
- Programming: SET button, LED programming card, LCD programming box (G2)
- Pole 2
- Controller (LxWxH) 44 x 36.8 x 32.3 mm, 102 g
- Motor (ØxL) 36 x 52.8 mm, 186 g
- Use:1/10, 1/12 on-road (racing or drift-touring car, F1, M-vehicles etc.) and off-road (buggies/2WD-SCTs and trucks), STOCK-/SPORT-class competitions, beginner for practicing and rock crawler (applies to 21.5T and 25.5T-engines)
- Product type
Model car brushless motor kit
- kV (RPM per volt)
3600
- Scale
1:10
1:12
- No. of LiPo cells
2-3
- Shaft Ø
3.17 mm
- Turns
10.5
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400227 Hobbywing Combo 10BL120 G2 mit 3650SD 10.5T 38020381 Turns: 10.5 Model car brushless motor kit 1:10, 1:12
Description
This Quickrun combo includes the G2 version of the Quickrun 10BL120 controller as well as a versatile 3650 SD G2 motors with approximately 10.5T or 3600kV. The 2nd. Generation of the Quickrun 10BL120 regulator represents a classical, solid brushless solution for 1/10 vehicles such as touring cars, buggies and drifter. With extended BEC and a lot of additional parameters the controller is in no way inferior to its predecessor. The QuickRun series from Hobbywing offers a cost-effective alternative for all drivers, who simply want to achieve more with their setup - whether with brushless motors or not. It is aimed primarily at beginners and advanced pilots and impresses through the outstanding quality of the Hobbywing products as well as through the uncomplicated start-up.
Together, the two components form a cost-effective electronics team for both beginners and advanced DJs alike.
This text is machine translated.
Together, the two components form a cost-effective electronics team for both beginners and advanced DJs alike.
This text is machine translated.
Features
- A large number of setting options (including turbo delay, turbo timing and boost timing)
- Improved BEC output with switch instead of linear mode
- Freely selectable motor rotation direction (CW or CCW)
- Top performance at a low price
- Compact design, suitable for a multiplicity at chassis
- Ideal for many application areas and competitions
- Various protective functions: Overheating protection, undervoltage switch-off
- 2-pin rotor design
- Soft and linear force
- Good heat dissipation
- Plug 'n' Play
Scope of delivery
- Quickrun 10BL120 G2 controller
- Quickrun 3650SD G2 with 10.5T or 3600 kV
