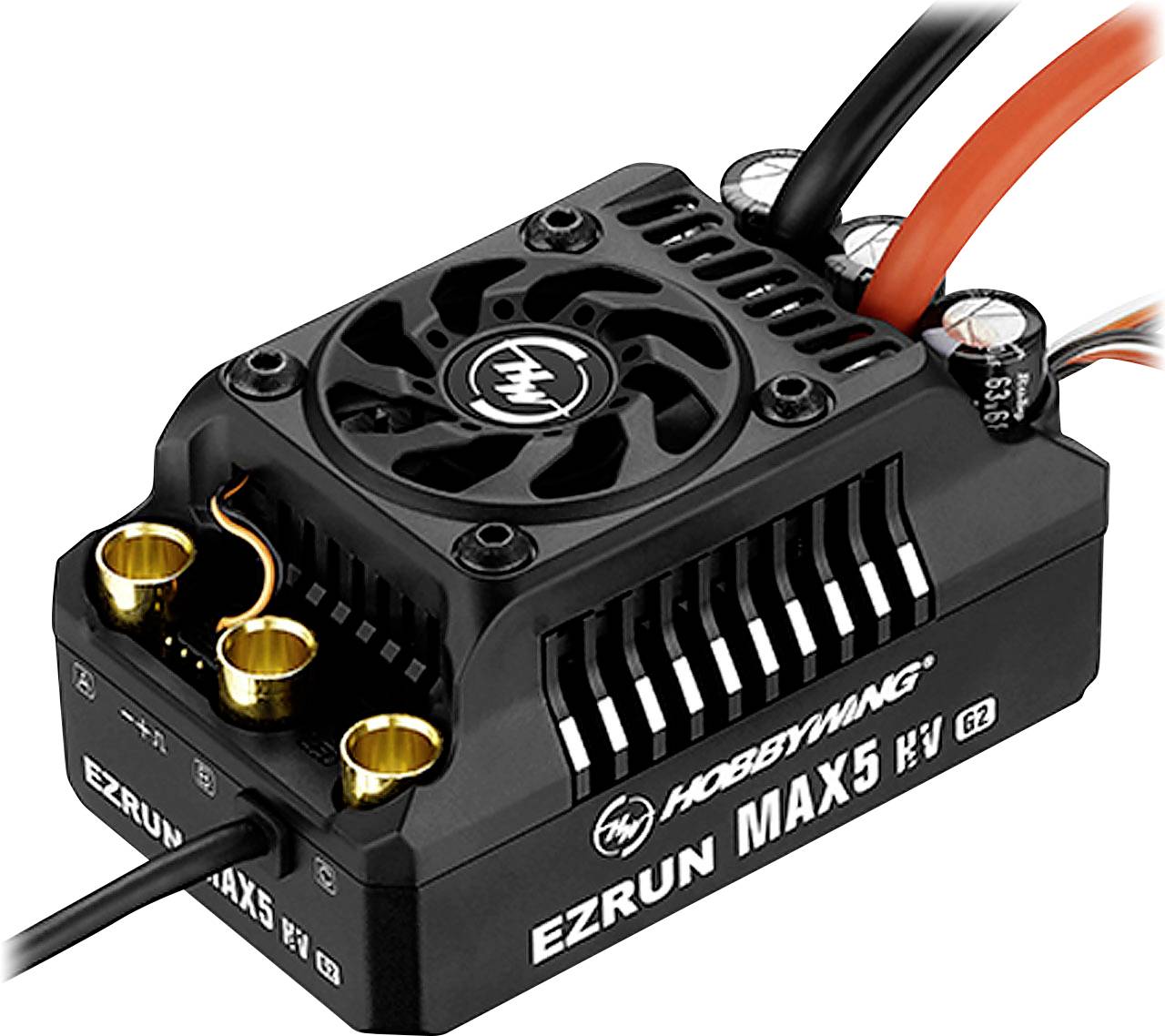

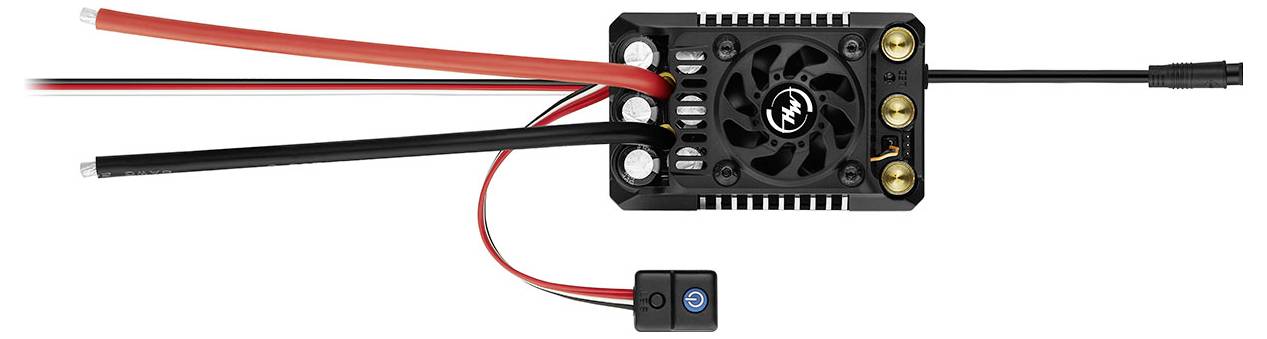

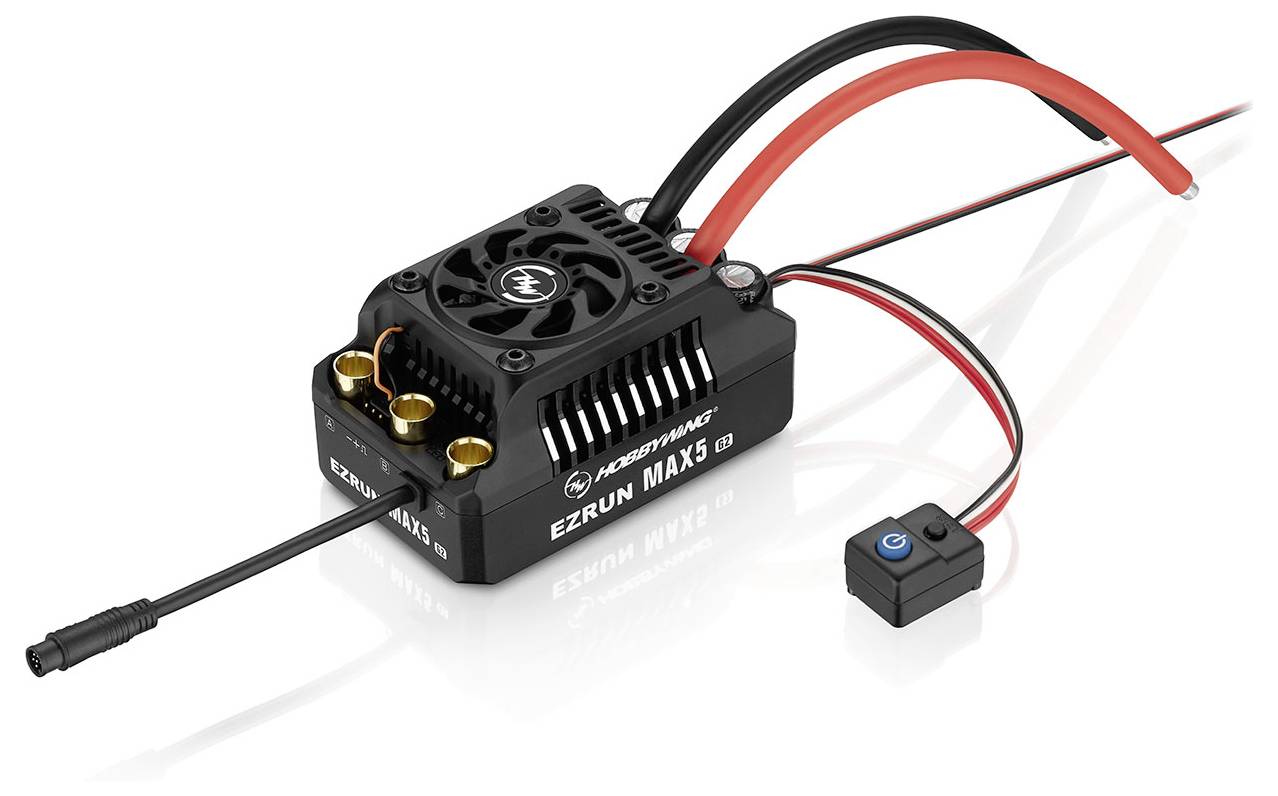

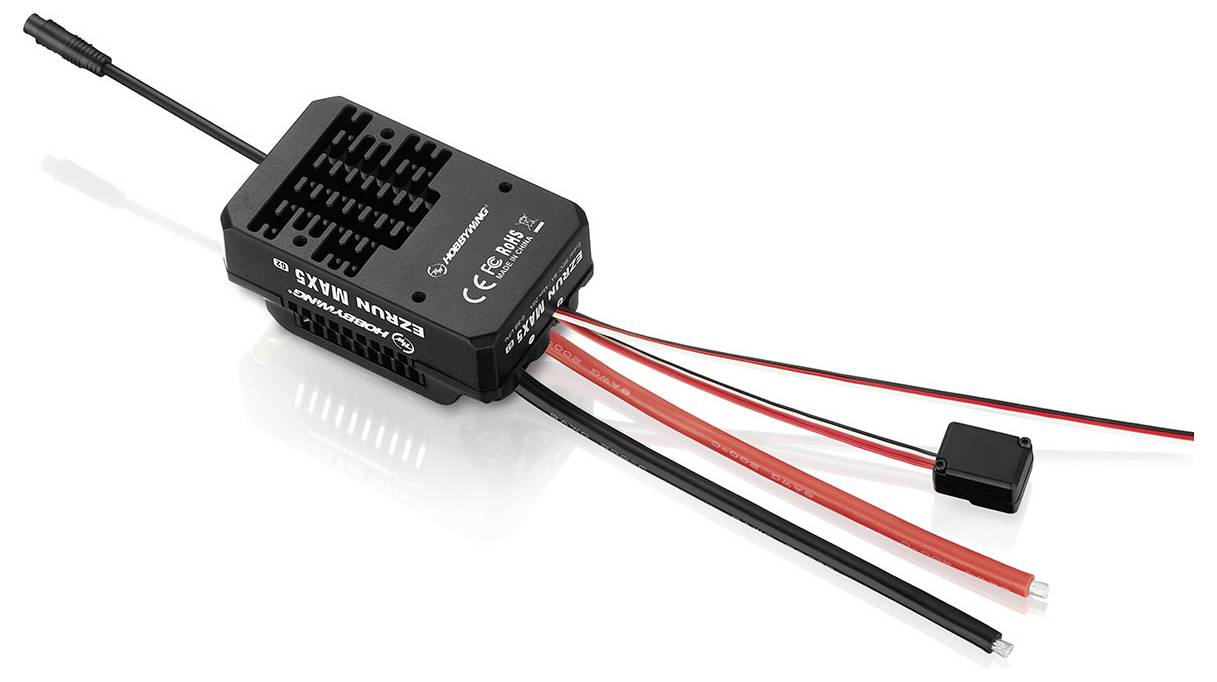

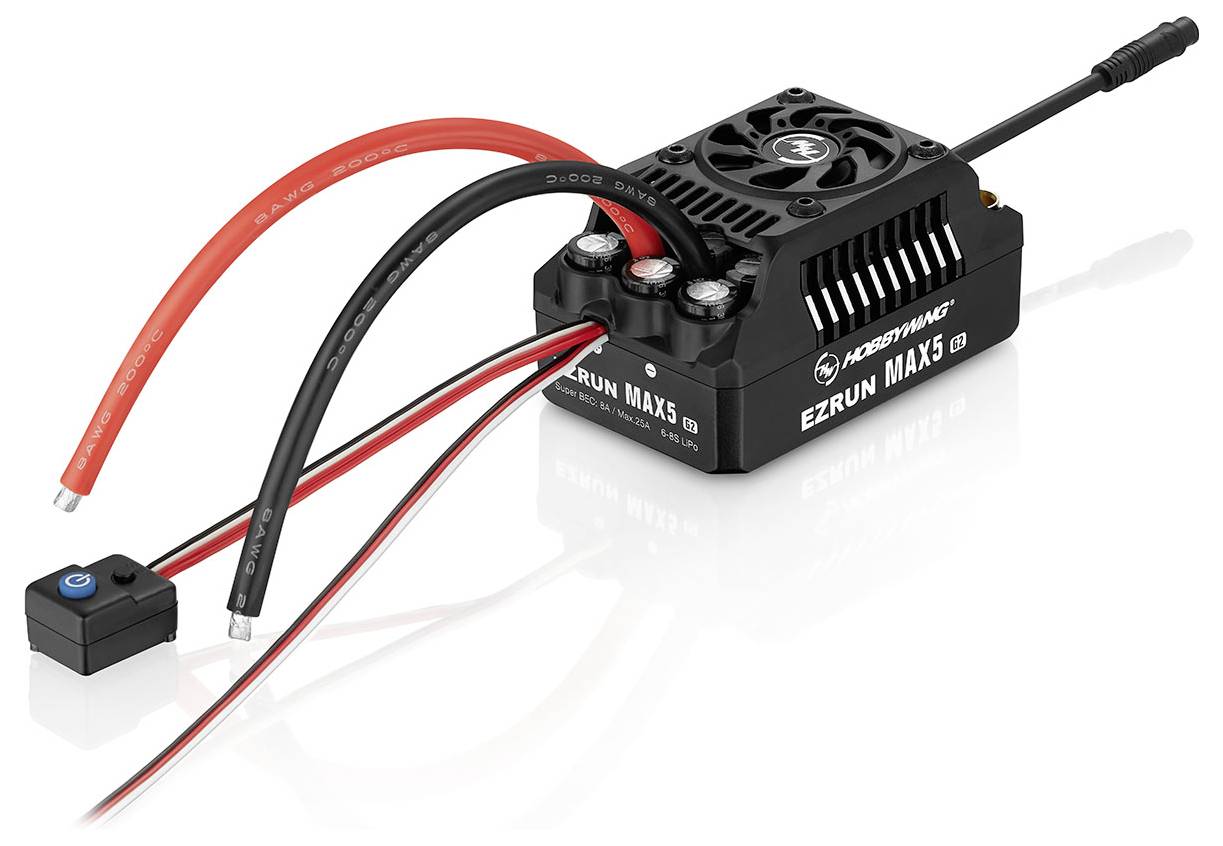

Hobbywing Ezrun MAX5 HV G2 Model car brushless speed control Load (Amp max.): 1600 A Motor limit (turns): 56118
EAN:
Part number:
Item no:
Total (€ 222.69 / piece)
€ 222.69
plus VAT.
14-day return policy included
Highlights & Details
Hobbywing Ezrun MAX5 HV G2 controller 250 Amp, 6-12s LiPo, BEC 8A
- Now with more power than the predecessor.
- Water and dust proof for use in any weather.
- Built-in ultra strong switching mode BEC to address different servos (powerful / high voltage servo).
- Includes turbo timing setting. Particularly recommended with the appropriate motor (e.g. EZRUN 56118SD G2).
- Numerous safety functions: Battery low voltage protection, controller and motor overheating protection, signal loss protection, current protection.
- Supports LED program card, LCD-G2 program box and OTA programming module for easier adjustment of controller parameters.
- Data logging function to display various run data in the HW LINK APP using the OTA Bluetooth module.
- Supports controller firmware upgrade (requires the multifunction LCD G2 Program Box or OTA Programming Module for purchase).
- Capacitor capacity increased by 45%.
- 12 adjustable parameters.
Technical specifications
- Input voltage 6-12S LiPo
- Motor Limit: 8S Lipo: KV <= 1200 - 12S Lipo: KV <= 800 56118 Motor
- Fan via the BEC
- 8.00mm Bullet Connector (female)
- Programming: LED programming card, CD programming box (G2), OTA programming module, separate programming port
- Suitable vehicles: 1/5 Buggy, Truck
- Product type
Model car brushless speed control
- Dim
(L x W x H) 94.5 x 59.4 x 50.9 mm
- Weight
429 g
- Connector system
8 mm socket
- BEC data
6V/7.4V/8.4V @8A (Switch Mode)
- Load (max.)
1600 A
- Permanent current
250 A
- Motor limit (turns)
56118
- Manufacturer part #
30104200
- Width
59.4 mm
- Height
50.9 mm
- Length
94.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400145 Hobbywing Ezrun MAX5 HV G2 Model car brushless speed control Load (Amp max.): 1600 A Motor limit (turns): 56118
Description
The EzRun MAX5 HV G2 is an impressive brushless regulator with high voltage capability. It supports up to 12S LiPo and with a maximum output current of 250 A; it delivers explosive power and excellent linearity. Thanks to intelligent free-wheel technology the controller remains relaxed and cool even with demanding driving manouvers.
This controller is protected against water and dust according to the IP 67 standard. As a result, the MAX5 HV G2 is of course also suitable for use in all weather conditions and can be operated on various surfaces such as mud, sand, ice, snow and water without damaging the power unit. With a powerful integrated BEC, an anti-spark design and a multi-direction protection this controller offers advanced functions and high security. The EzRun MAX5 HV G2 is the ideal choice for RC enthusiasts looking for maximum potential and reliability. The operation status can even be monitored by the recording and storage of real-time data. And the upgrade of the sensor cable interface greatly improves the protection and waterproof performance of the controller. With perfect compatibility to the EzRun 56118 SD G2 motor from Hobbywing, this Power system offers an unbeatable team for optimum performance and protection from overheating.
