Hobbywing Ezrun MAX6 G2 Model car brushless speed control Load (Amp max.): 1200 A Motor limit (turns): 5690
EAN:
Part number:
Item no:
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
14-day return policy included
Highlights & Details

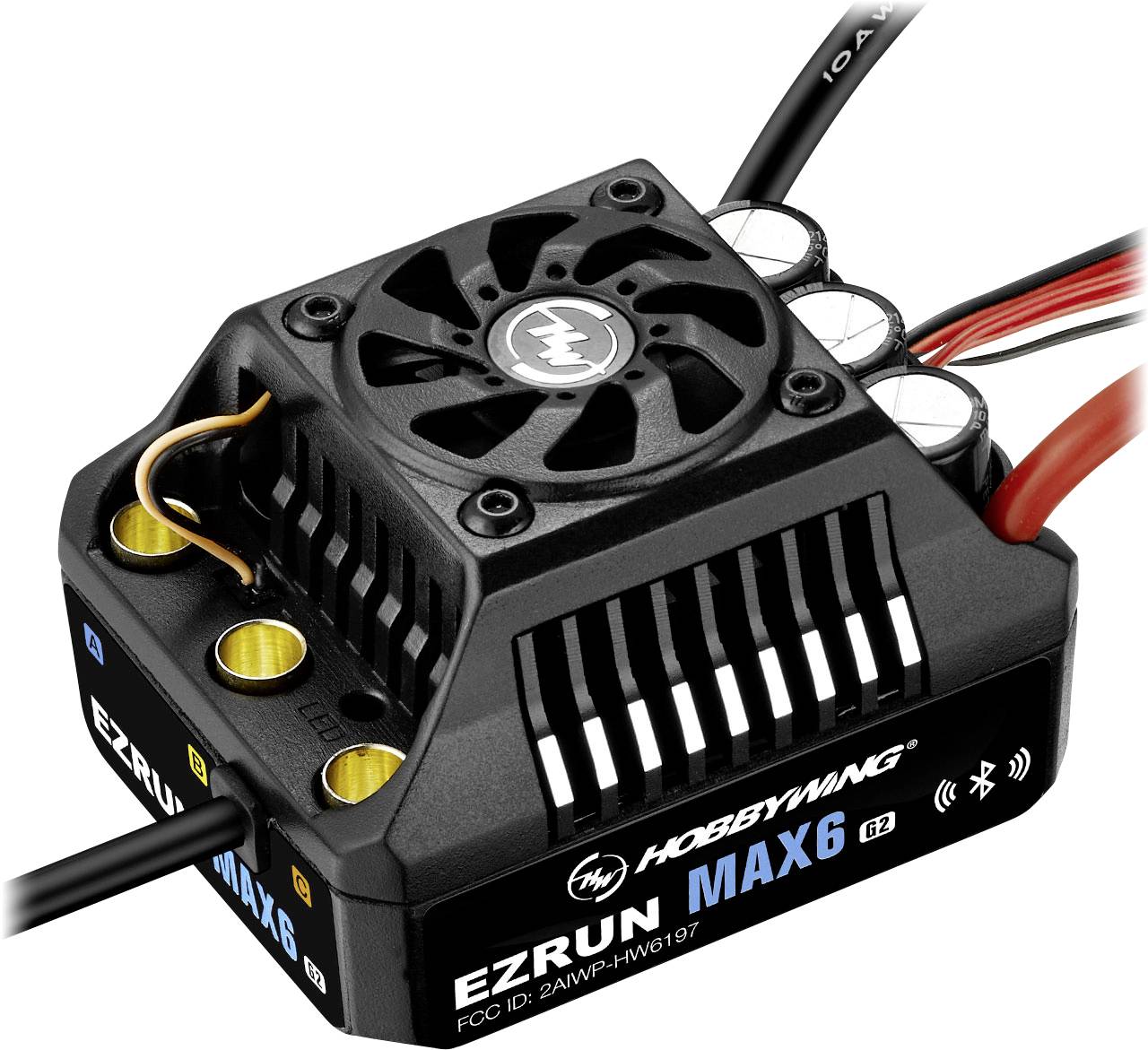

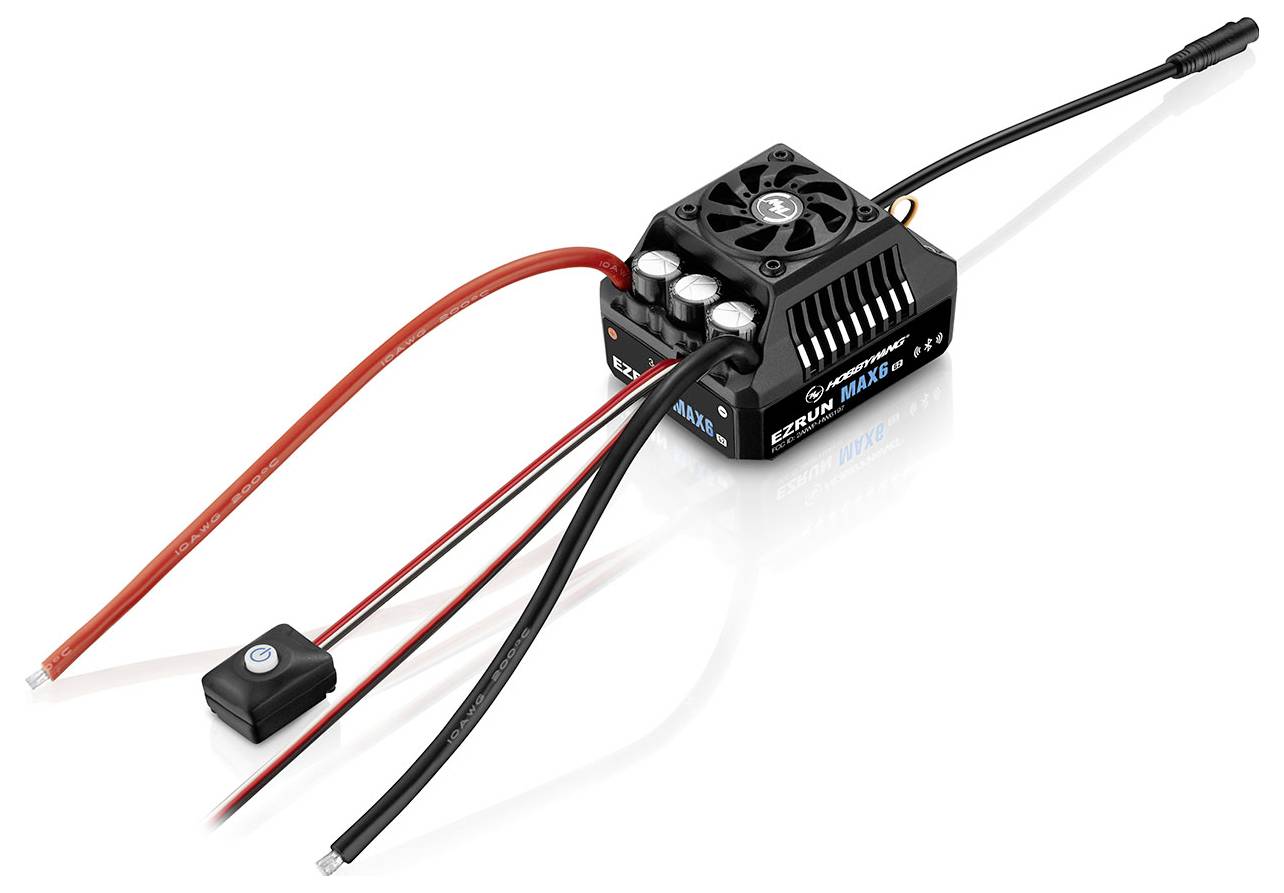

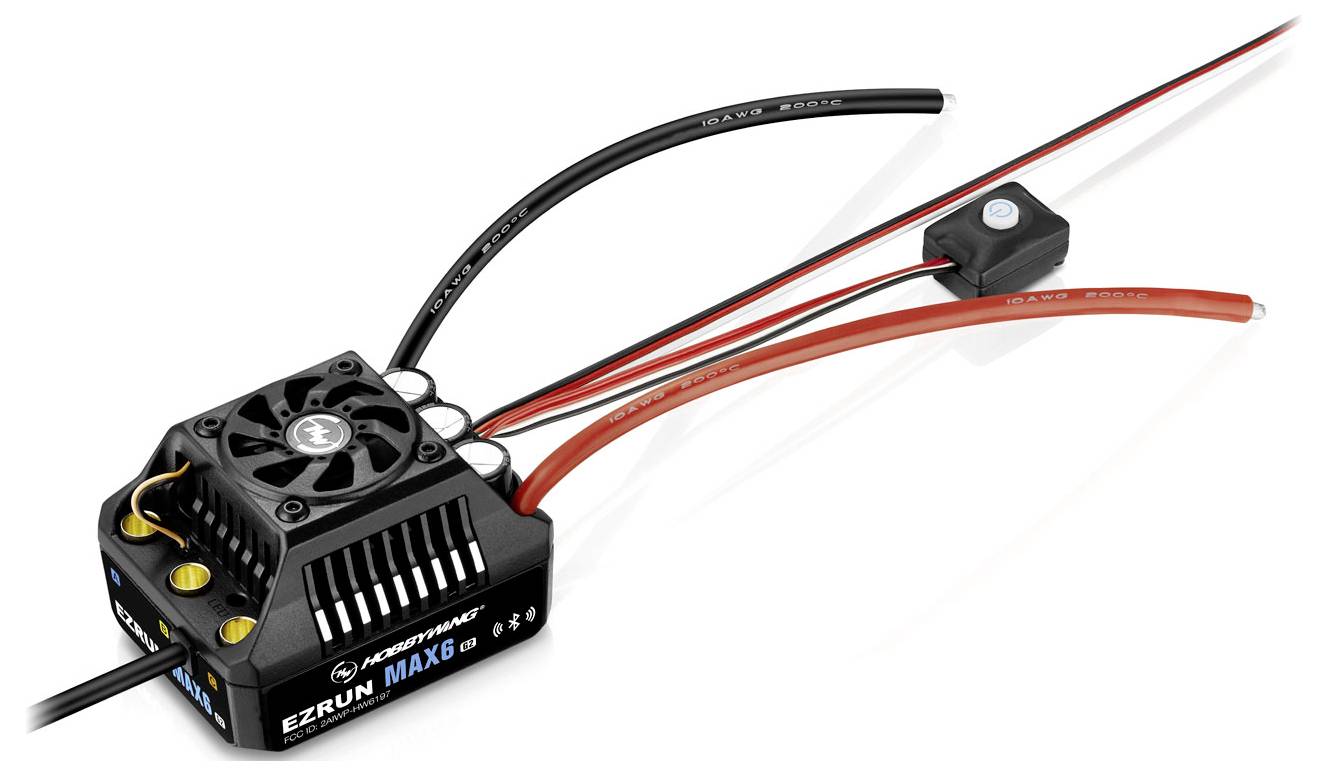

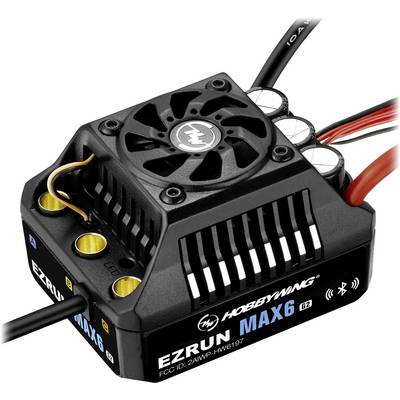

Hobbywing Ezrun MAX6 G2 controller 200 amp, 3-8s LiPo, BEC 8A
- Now with more power than the predecessor.
- Built-in Bluetooth module to program the controller directly via the HWLink2-APP on your smartphone.
- Smart fan that only activates when the temperature reaches a certain value.
- Water and dust proof according to IP67 standard for use in any weather.
- Built-in ultra strong switching mode BEC to address different servos (powerful / high voltage servo).
- Includes turbo timing setting. Particularly recommended with the appropriate motor (e.g. EZRUN 4990 G2 or 5690 G2).
- Numerous safety functions: Battery low voltage protection, controller and motor overheating protection, signal loss protection, current protection.
- Built-in data logging function for displaying various run data of up to 10min in the HW LINK APP
- Supports controller firmware upgrade.
- 12 adjustable parameters.
Technical specifications
- Input voltage 3-8s LiPo
- Motor Limit: 6S Lipo: KV <= 2400, 8S Lipo: KV <= 1700 4990/5690er motor
- Fan via the BEC
- Programming: HWLink2-APP (via the built-in Bluetooth module)
- Suitable vehicles: 1/6, 1/7 On-Road, Truck, Monster Truck
- Product type
Model car brushless speed control
- Dim
(L x W x H) 70 x 56 x 45.5 mm
- Weight
245 g
- BEC data
6V/7.4V/8.4V @8A (Switch Mode)
- Load (max.)
1200 A
- Permanent current
200 A
- Motor limit (turns)
5690
- Manufacturer part #
30105100
- Width
56 mm
- Height
45.5 mm
- Length
70 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400146 Hobbywing Ezrun MAX6 G2 Model car brushless speed control Load (Amp max.): 1200 A Motor limit (turns): 5690
Description
The EzRun MAX6 G2 is a modern brushless controller with high-voltage support and built-in Bluetooth module. In comparison to its predecessor, the second generation is considerably more powerful with up to 200 A and with 12 programmable parameters also offers more space at the same time for adapting to the personal driving style. Aggressive starts, high acceleration on straight tracks and jump control are only a fraction of that, WAS brings along the controller. And thanks to the intelligent free wheel technology the controller remains relaxed and cool even with these demanding driving maneuvers.
The most convincing feature of the MAX6 G2 controller is the built-in Bluetooth module. This makes programming cards and also the OTA module unnecessary as additional accessories. All WAS you need is the HWLink2-APP, and the controller can be conveniently programmed and updated on your smartphone. Even a data recording for up to 10 minutes is possible and offers insight into the most important driving data like speed, voltage and temperature. With a powerful integrated BEC, an anti-spark design and several safety devices, this controller offers advanced functions and high security. The EzRun MAX6 G2 is thus the ideal choice for RC-enthusiasts, who are looking for maximum potential and best reliability. With perfect compatibility with the two EzRun motors 4990 G2 and 5690 G2 of Hobbywing, this Power system offers an unbeatable team for optimum performance with modern equipment.
This text is machine translated.
The most convincing feature of the MAX6 G2 controller is the built-in Bluetooth module. This makes programming cards and also the OTA module unnecessary as additional accessories. All WAS you need is the HWLink2-APP, and the controller can be conveniently programmed and updated on your smartphone. Even a data recording for up to 10 minutes is possible and offers insight into the most important driving data like speed, voltage and temperature. With a powerful integrated BEC, an anti-spark design and several safety devices, this controller offers advanced functions and high security. The EzRun MAX6 G2 is thus the ideal choice for RC-enthusiasts, who are looking for maximum potential and best reliability. With perfect compatibility with the two EzRun motors 4990 G2 and 5690 G2 of Hobbywing, this Power system offers an unbeatable team for optimum performance with modern equipment.
