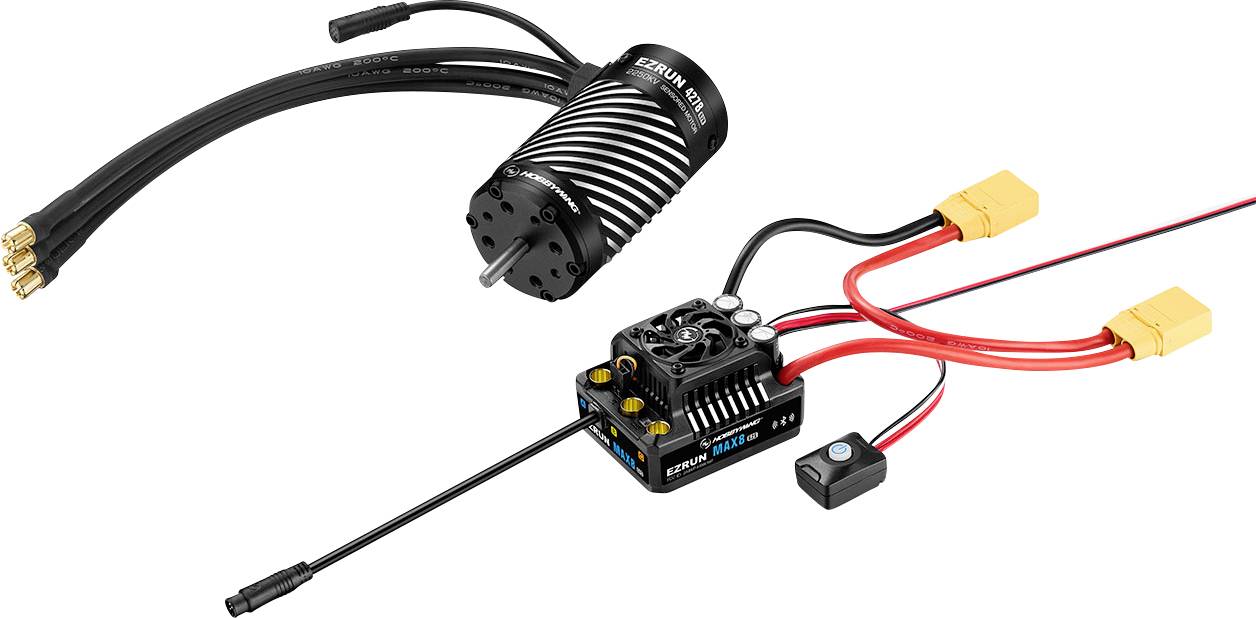

Hobbywing Ezrun MAX8 G2S Combo mit 4278SD 2250kV G2R 38010607 Model car brushless motor kit
EAN:
Part number:
Item no:
Technical specifications
- Current (continuous/peak): 160A/1050A
- BEC: 6V/7.4V/8.4V @ 6A
- Motor Limit: 4S LiPo: <= 3000kV, 6S LiPo: <= 2400kV (4278 motors)
- XT90 plug
- Pole 4
- Controller (LxWxH) 60 x 48 x 40.5 mm, 192 g
- Motor (ØxL) 42 x 78 mm, 465 g
- kV (RPM per volt)
2250
- Shaft Ø
5 mm
- No. of LiPo cells
3-6
- Product type
Model car brushless motor kit
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400209 Hobbywing Ezrun MAX8 G2S Combo mit 4278SD 2250kV G2R 38010607 Model car brushless motor kit
Description
If you combine the EZRun MAX8 G2S with the new 4278 SD G2R motor, you get the perfect 1/8 Basher Combo! The controller and motor are precisely tuned to each other and work together smoothly to deliver the best possible performance. The integrated overheat protection prevents motor damage and simplifies handling.
This combo replaces the HW38020476.
This text is machine translated.
This combo replaces the HW38020476.
This text is machine translated.
Features
- Ultra-powerful BEC 6V/7.4V/8.4V
- 25% more power!
- Numerous protection mechanisms (low voltage, overheating, signal loss, etc.)
- Includes turbo timing setting
- Real-time data recording
- Excellent throttle response
- Even faster at constant power output
- IP 67 standard (dust and water-proof)
- Easy to dismantle motor for maintenance work
Scope of delivery
- Ezrun MAX8 G2S controller
- Ezrun 4278SD G2R motor
