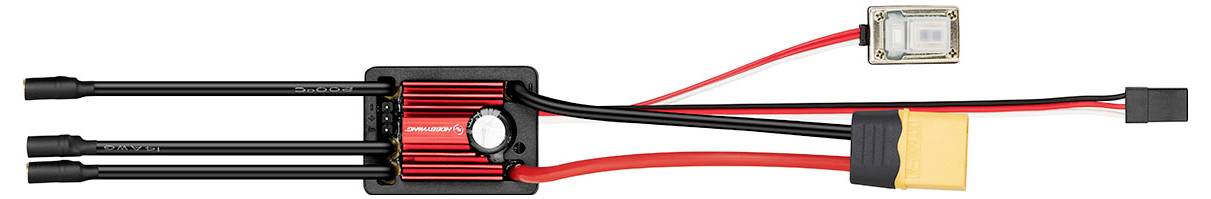

Hobbywing Hobbywing QuicRun WP12BL45 G2 Brushless Regler Model car brushless speed control Load (Amp max.): 200 A
EAN:
Part number:
Item no:
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
Only 1 Piece(s) available
Highlights & Details

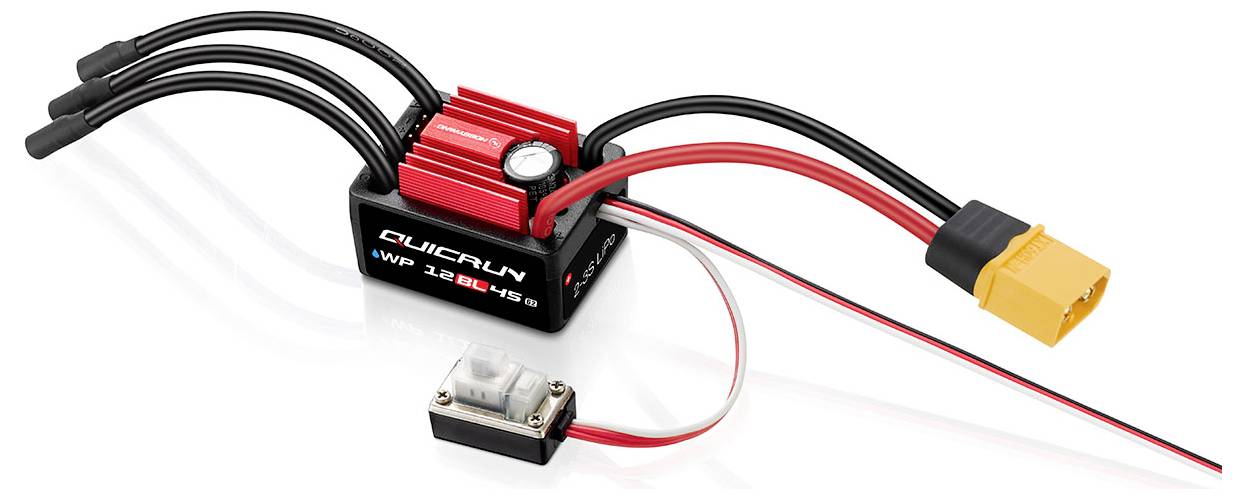

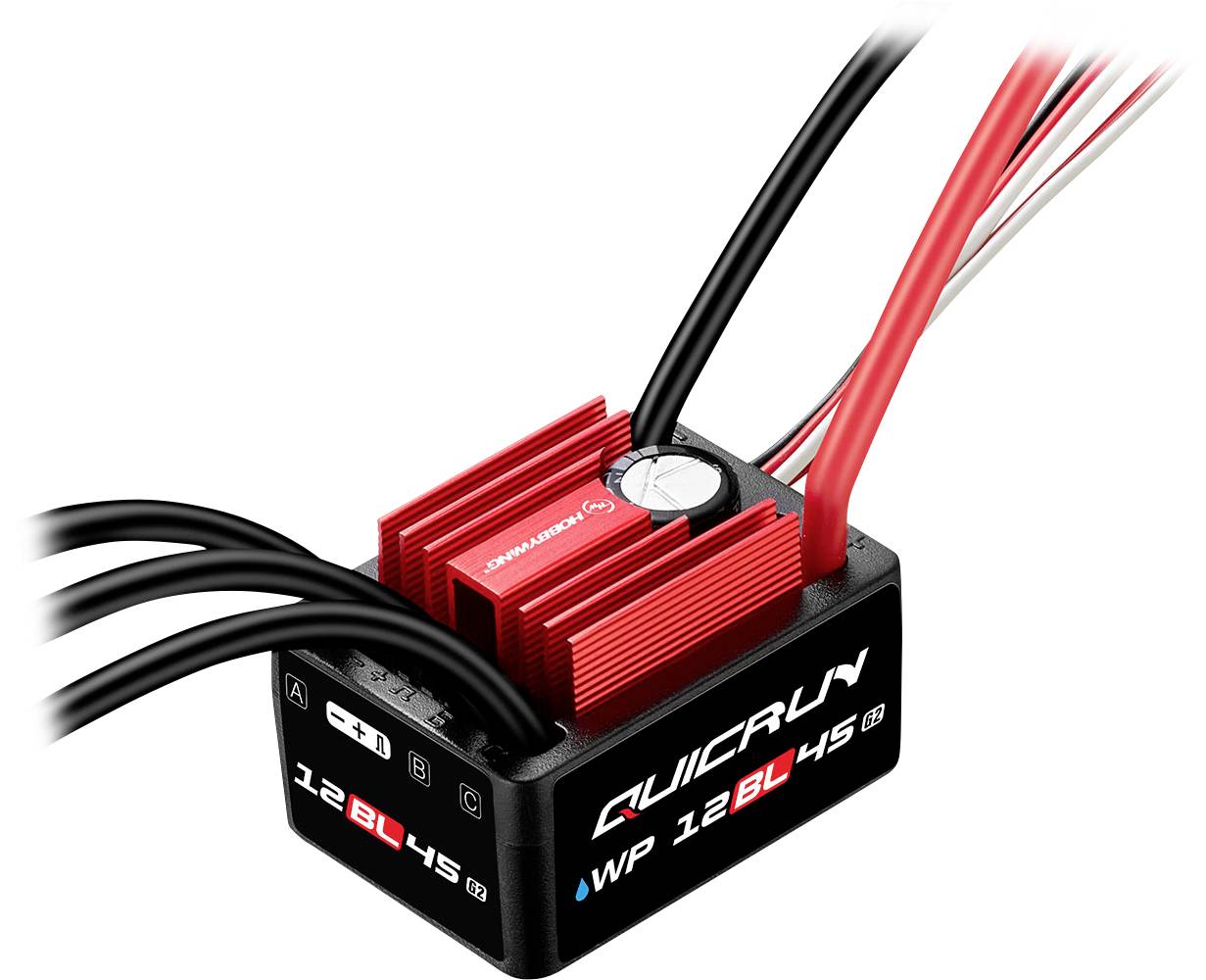

QuickRun WP12BL45 G2 brushless regulator
- With modern T-plug connection
- Water and dust proof for use in any weather and route conditions
- Small size with built-in capacitor module
- Three different driving modes are available
- Good current carrying capacity
- Built-in switch-BEC with high power
- Automatic gas path calibration
- Simple programming via jumper
- Low voltage protection for rechargeable batteries, thermal overheating protection, gas signal loss protection
Technical specifications
- Peak current: 200A;
- Recommended scale: 1:12 & 1:14
- Suitable motors: QuickRun 2840 / 2850 G2
- Dim
(L x W x H) 39.2 x 29.2 x 25.6 mm
- Weight
57 g
- Connector system
T plug
Tamiya plug
4 mm socket
- BEC data
4 A
- Load (max.)
200 A
- Permanent current
45 A
- Manufacturer part #
HW30107000
- Height
25.6 mm
- Length
39.2 mm
- Width
29.2 mm
- Model
QUICKRUN WP 12BL45 G2
- No. of LiPo cells
2-3S
- Product type
Model car brushless speed control
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3466235 Hobbywing Hobbywing QuicRun WP12BL45 G2 Brushless Regler Model car brushless speed control Load (Amp max.): 200 A
Description
The Hobbywing QuickRun series includes brushed and brushless drive systems. In the brushless systems there are also sensor-free as well as sensor-based drives, so this series offers a suitable solution for every requirement. The series is also very economical and is aimed primarily at beginners and advanced pilots. It also convinces by the outstanding well-known quality of the Hobbywing products as well as the uncomplicated start-up.
