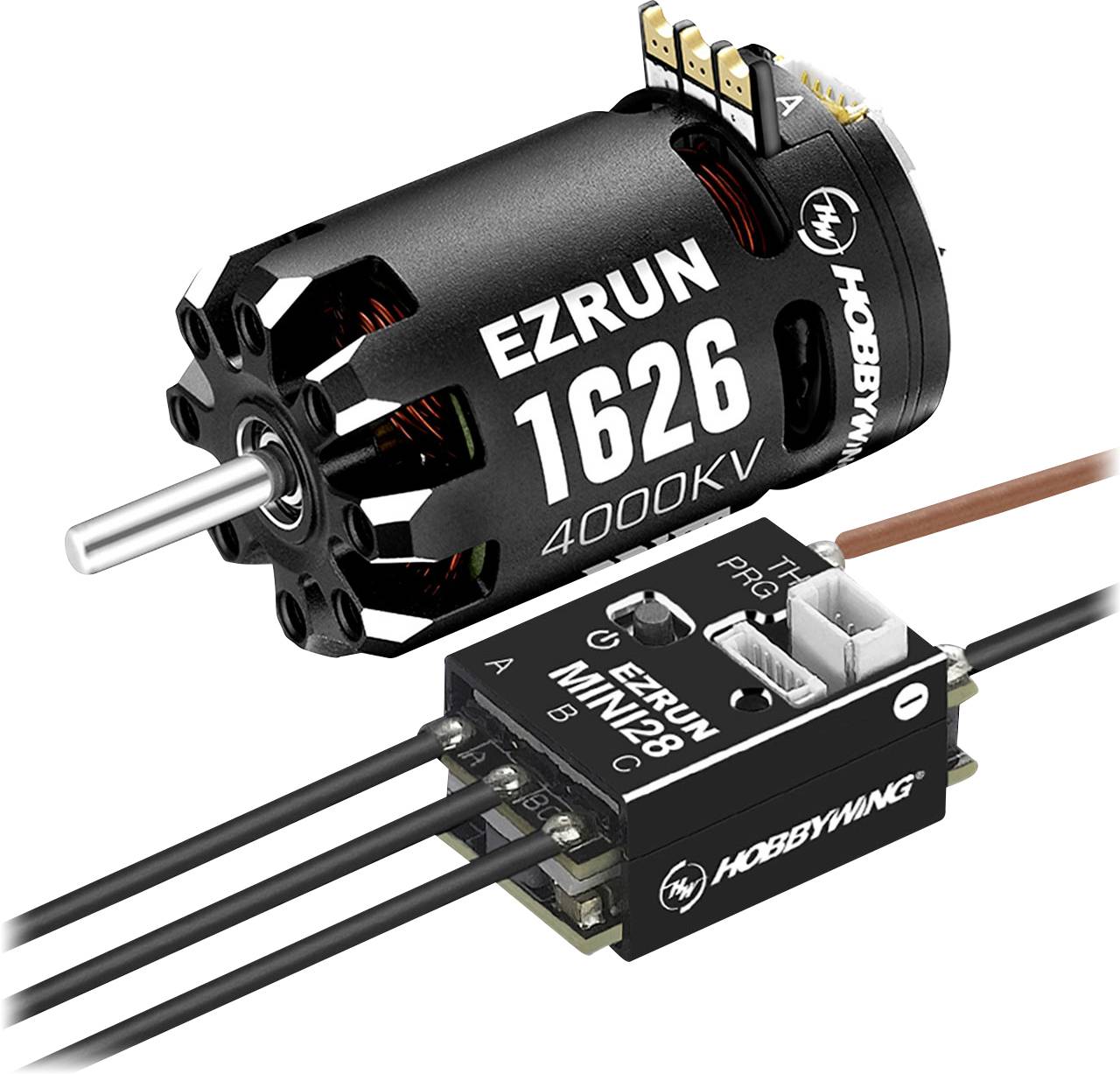

Hobbywing Mini28 Combo mit 1626SD 4000kV 38010605 Model car brushless motor kit 1:28
EAN:
Part number:
Item no:
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Current (permanent/peak): 30A/80A
- BEC:6-7.4V (adjustable), 3.5V switch-mode
- Pole 2
- Controller (LxWxH) 22.7 x 14.2 x 11.8 mm, 5 g
- Motor (ØxL) 16 x 26 mm, 18 g
- Application: 1/28 Mini
- Product type
Model car brushless motor kit
- kV (RPM per volt)
4000
- Scale
1:28
- Load capacity controller
30 A
- No. of LiPo cells
2
- Max. current
80 A
- Motor current consumption
30 A
- short-term
80 A
- Shaft Ø
2 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400208 Hobbywing Mini28 Combo mit 1626SD 4000kV 38010605 Model car brushless motor kit 1:28
Description
Experience magnificent ACTION with the Ezrun mini combo for use in 1/28 vehicles. The Mini28 controller offers over 25 different parameters, which can be adjusted according to your requirements and personal taste. The matching 1626 motor with 4000 kV is the ideal supplement, in order to be able to start directly without having to search for a suitable motor.
This text is machine translated.
This text is machine translated.
Features
- Specially developed for use in 1/28-Mini Racing
- Small and light-weight controller with over 25 different parameters
- Easy to program with the LCD G2 programming box and OTA programming module
- Enormous improvement of the driving feeling and the top speed
- Precise response characteristics
- Designed to meet the needs of high-performance drivers
- Various built-in protective functions
- Easy to dismantle motor for maintenance work
Scope of delivery

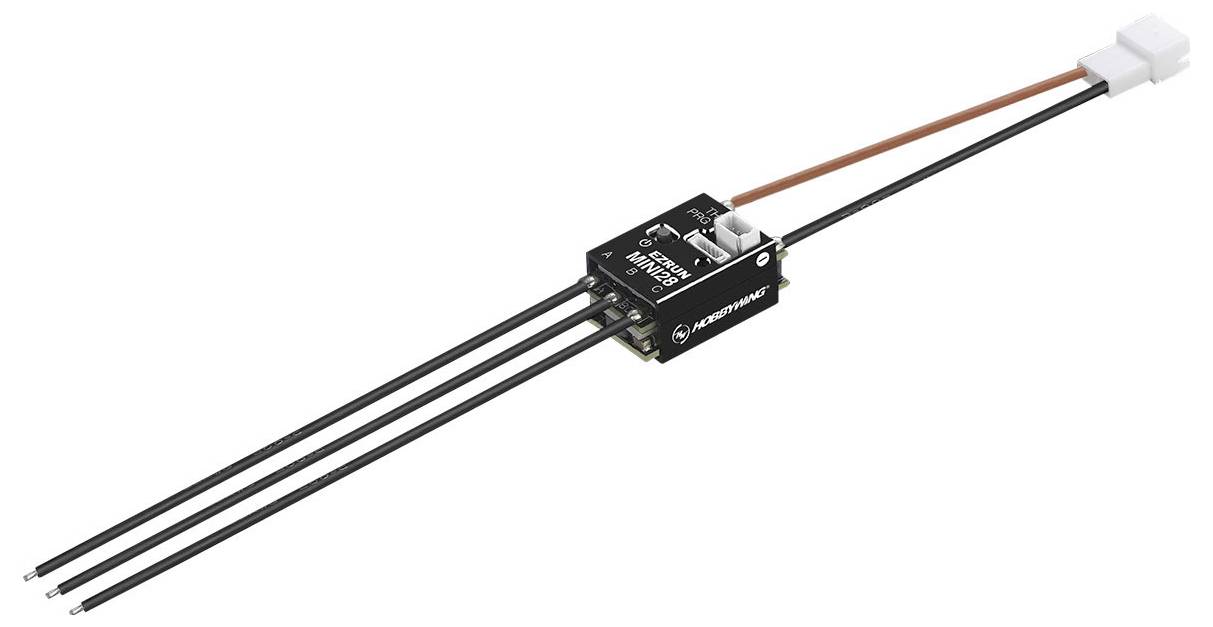

- Regulator Ezrun Mini28 30A 2S

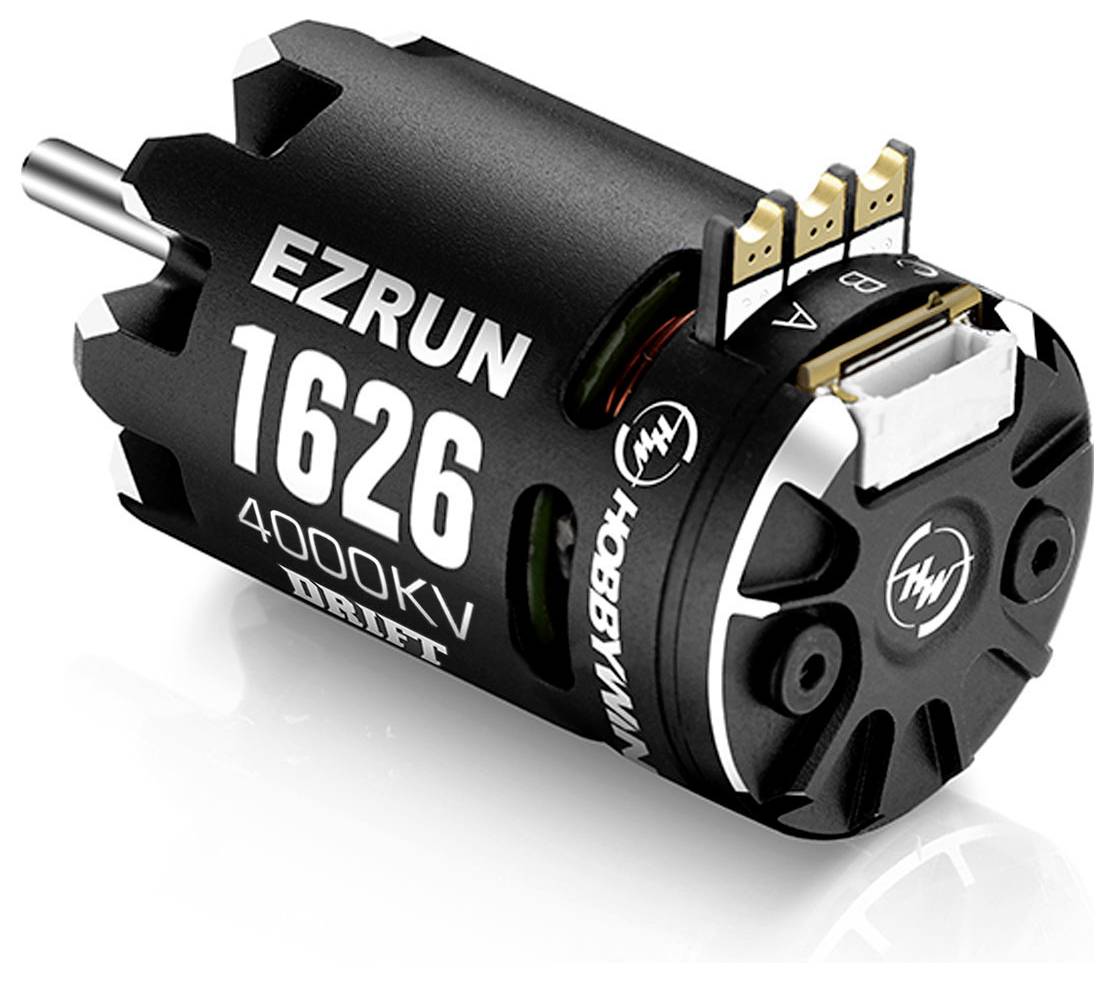

- Electric motor Ezrun 1626 4000kV
